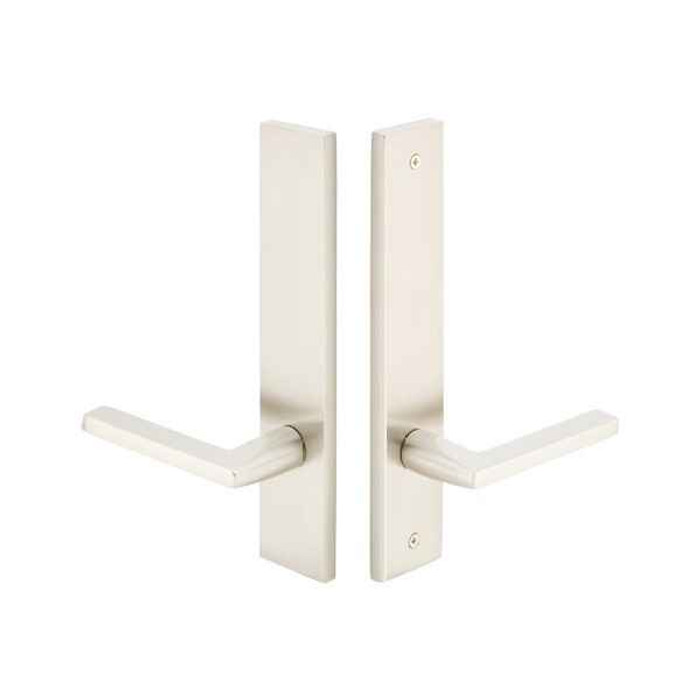

Emtek Emtek 14B4 Multi Point Lock Trim (Door Config #4) - Brass Plates, Modern Style (2" x 10"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-14B4

Emtek 14B4 Multi Point Lock Trim (Door Config #4) - Brass Plates, Modern Style (2" x 10"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 14B4-US19
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #4
  • Plate Size: 2" x 10"
  • Material: Brass
  • Plate Style: Modern
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 14B4 Multi Point Lock Trim (Door Config #4) - Brass Plates, Modern Style (2" x 10"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#4
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), Weathershield
Series:
Modern
Theme:
Contemporary
MAP Policy:
Yes
Product Model:
14B4
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 14B4-US19 – Frequently Asked Questions

1) What does Door Configuration #4 mean on an Emtek multi point trim?
Configuration #4 is the semi-active (inactive) leaf of a pair of swinging patio doors: fixed handle outside, operating handle inside, no key cylinder. The outside handle is a pull that does not retract anything, and the inside lever runs the multi point gear so you can open the second leaf from within. If the door you are trimming is the one people key into from outside, this is the wrong configuration.
2) Will Emtek 14B4 trim fit my Marvin or JELD-WEN patio door?
Emtek lists this multi point trim as referencing Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco) and Weathershield door systems. The deciding number is the handle-to-cylinder center-to-center spacing: the 14B4 is 3-5/8 inches, with the cylinder location above the handle. Measure the prep on your door and match that 3-5/8 dimension before ordering.
3) Do I have to specify handing when ordering Emtek 14B4 multi point trim?
Handing is required. You pick right hand or left hand at order time, and there is no field-reversible option on this trim. Stand outside the door: if the hinges are on your right it is right hand. Get it wrong on a pair of patio doors and the lever pitches the wrong way on the semi-active leaf.
4) If the 14B4 has no keyhole, how does the pair of doors lock?
The 14B4 carries no cylinder because it goes on the semi-active leaf, which is secured by the multi point gear and thrown from the inside lever. Keying lives on the active leaf trim, which takes an American standard cylinder mounted above the handle on the matching Emtek configuration. Order the keyed configuration for the door people enter through and the 14B4 for its partner.
5) What do I have to pick besides the finish on Emtek 14B4 trim?
Three things beyond finish. Lever style is required and there are 51 to choose from, spanning the L-Square, T-Bar and R-Bar bar levers in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble treatments, plus cast levers like Athena, Helios, Hermes, Luzern, Poseidon, Stuttgart, Cortina, Milano, Turino, Coventry, Rope, Rustic, Santa Fe and Arts and Crafts. Handing is required. Door thickness is an optional entry, and it is worth filling in so the spindle and screw pack match your slab.
6) How big are the plates on the Emtek Modern multi point trim, and will they cover my old escutcheon?
The Modern style plate measures 2 x 10 inches with a squared contemporary profile. That is a narrow, tall plate, so it suits a patio door stile but will not hide a wider scar left by a bulkier previous escutcheon. Check the footprint of what is coming off before you commit.
7) Is this Emtek multi point trim suitable for a commercial building entrance?
Emtek rates this trim residential. It is swinging patio door hardware, so it belongs on homes, condo units and multi-family patio openings rather than a commercial storefront or a high-traffic public entrance where a Grade 1 commercial lockset is the right call.
8) Do Emtek multi point levers sag over time?
Spring Assist is built into every current Emtek multi point trim, including the 14B4. It returns the lever to horizontal after each use, which is the fix for the drooping handle that shows up on older patio door trim. If you are replacing a sagging Emtek set, the newer trim addresses that directly.
9) What finishes does the Emtek 14B4 multi point trim come in?
Seven, and they cover the usual patio door palettes: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL) and Satin Brass (US4). Unlacquered brass is the one to think twice about on an exterior door, since it is meant to patina rather than hold its shine. Plates and levers are solid brass throughout.
10) Is the Emtek 14B4 an electronic or smart lock trim?
Purely mechanical. There is no electronic component in the 14B4, no motor, no keypad and no power requirement, so nothing changes on this door when the power drops. It is a lever-and-plate trim driving a mechanical multi point gearbox.
