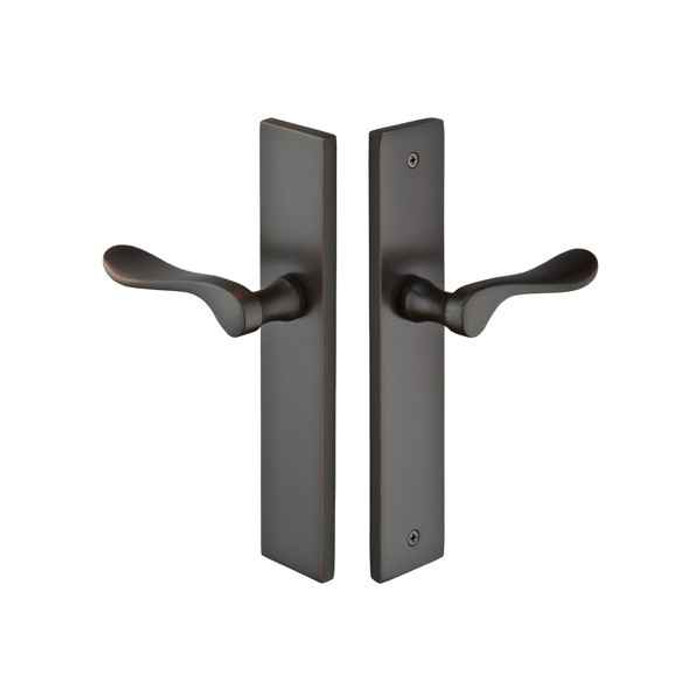

Emtek Emtek 16B4 Multi Point Lock Trim (Door Config #6) - Brass Plates, Modern Style (2" x 10"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-16B4

Emtek 16B4 Multi Point Lock Trim (Door Config #6) - Brass Plates, Modern Style (2" x 10"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 16B4-US19
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #6
  • Plate Size: 2" x 10"
  • Material: Brass
  • Plate Style: Modern
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 16B4 Multi Point Lock Trim (Door Config #6) - Brass Plates, Modern Style (2" x 10"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Modern
Theme:
Contemporary
MAP Policy:
Yes
Product Model:
16B4
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 16B4-US19 – Frequently Asked Questions

1) Does the Emtek 16B4 multi point trim include the multi point lock itself?
No. The 16B4 is trim only, plates and handles. The multi point mortise lock box is a separate purchase. If you're replacing worn or dated handles on an existing patio door that already has a working multi point mechanism, this is the right part. If the mechanism itself is bad, you need the lock body too.
2) What does Door Configuration #6 mean on an Emtek multi point trim?
Configuration #6 is Emtek's code for a non-keyed setup with a fixed handle on the exterior and an operating (turning) lever on the interior. That combination is what goes on the semi-active leaf of a pair of patio doors, the one that normally stays shut and is released from inside. Emtek configuration numbers dictate which handles turn and where the cylinder sits, so the config on your door has to match the trim you order.
3) Will this Emtek trim fit my Pella or Milgard patio door?
Milgard and Pella are the reference door manufacturers for this trim. The number that has to match is the center-to-center spacing between the handle and the cylinder hole, which is 3-5/8 inches here, with the cylinder position below the handle. Measure your existing door's hole spacing before ordering; multi point doors from other makers often run different center-to-center dimensions.
4) Do I need to specify handing when ordering the Emtek 16B4?
Yes, handing is required. You pick Right Hand (RH) or Left Hand (LH) at order time. Because the exterior handle is fixed and only the inside lever operates, the trim is built for one swing direction and can't be flipped in the field. Stand outside the door: if the hinges are on your right, it's right hand.
5) This is the non-keyed version, so how does the door lock?
The 16B4 has no cylinder, so this leaf is secured from the inside lever only. On a pair of French or patio doors, the semi-active leaf gets this non-keyed trim while the active leaf takes a keyed configuration with a cylinder. If you want key access on this door, order a keyed configuration instead, not this one.
6) Can I pick my own lever style on the Emtek 16B4 trim?
Lever style is a required selection, and the choice is wide: over fifty brass levers including the L-Square, T-Bar and R-Bar modern bars in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, plus traditional patterns like Rope, Ribbon and Reed, Rustic, Santa Fe and Arts and Crafts. Any brass lever can be paired with these plates, so you can match the patio door to the interior levers already in the house.
7) Do Emtek multi point levers sag over time?
Every current Emtek multi point trim, including the 16B4, ships with a spring assist that returns the lever to horizontal. That's the fix for the drooping handle problem common on older patio door trim. Worth noting if you're replacing a set that has already sagged.
8) Is this Emtek multi point trim suitable for a commercial building entrance?
It's classified residential. The 16B4 is swinging patio door hardware for homes, not a commercial entrance product, and it carries no commercial durability grading. For a storefront or an apartment building common entry, look at commercial-rated mortise or exit hardware instead.
9) What finishes does the Emtek 16B4 come in?
Seven: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL), and Satin Brass (US4). Unlacquered Brass has no clear coat and will patina over time, which matters if you're matching it to lacquered brass hardware elsewhere in the house.
10) Is the Emtek 16B4 trim solid brass, and what size are the plates?
Brass throughout, plate and lever, with plates measuring 2 x 10 inches in the Modern (contemporary) style. The 2 inch width is worth checking against your door stile and any existing plate footprint, since a narrower old plate will leave marks or holes outside the new one.
11) Do I need to give my door thickness when ordering this Emtek trim?
There's an optional door thickness field on the order. Multi point patio doors vary in thickness more than standard interior doors, so filling it in helps get spindle and screw lengths right for your slab. If you leave it blank, the trim ships with standard fasteners.
