Emtek 1331 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

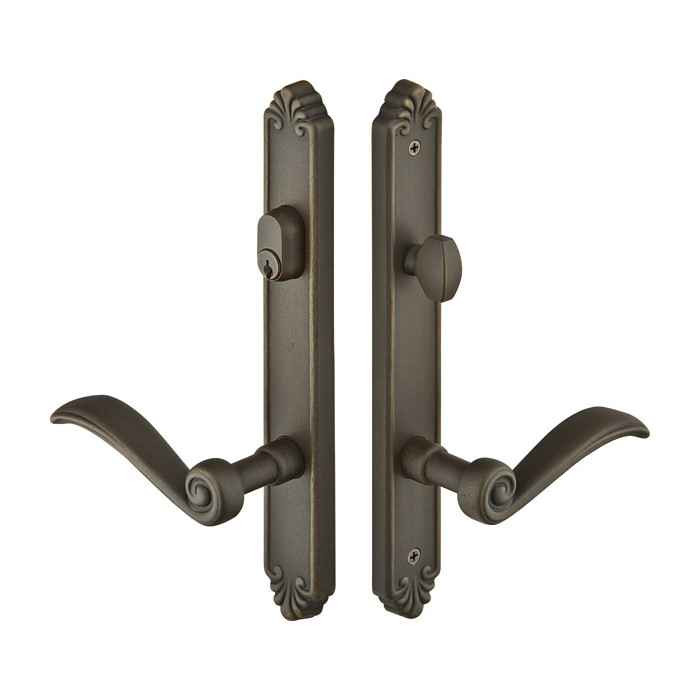

Emtek Emtek 1331 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Keyed with American Cylinder Hub ABOVE Handle EMTEK-1331

Emtek 1331 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Keyed with American Cylinder Hub ABOVE Handle

(No reviews yet) Write a Review

Model: 1331-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #3
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Above Handle
  • Product Type: Multi Point Lock Trim



Emtek 1331 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Keyed with American Cylinder Hub ABOVE Handle

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1331
(CTC) Center-to-Center:
4-1/8"
Product Function:
Keyed with American Cylinder
Product Size:
1-1/2" x 11-1/8"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1331-MB – Frequently Asked Questions

1) Does the Emtek 1331 multi point trim include the lock body, or do I need to order the mortise lock separately?
Trim only. The Emtek 1331 set gives you the plates, handles, and cylinder. The multi point mortise lock box is not included, so you need the lock body separately along with whatever the door manufacturer's gearbox requires.
2) What does Door Configuration #3 mean on Emtek multi point trim?
Configuration refers to where the cylinder sits relative to the handle and the spacing between them. The 1331 is Config #3: keyed with an American cylinder hub positioned ABOVE the handle, with 4-1/8 inch center-to-center between the cylinder and the lever hub. If the existing gearbox on your door puts the cylinder below the handle, or spaces it differently, this trim will not line up with the prepped holes.
3) Will the Emtek 1331 Tuscany trim work on an Andersen patio door?
Andersen is the referenced door manufacturer for the 1331 trim. It is built for swinging patio door multi point systems. Match the gearbox configuration first: the cylinder must sit above the handle at 4-1/8 inch center-to-center for the plates to land on the existing prep.
4) Do I have to specify handing when ordering the Emtek 1331?
Yes, handing is a required choice: right hand or left hand. Multi point trim is not reversible in the field on this set, so establish the hand from the outside of the door before ordering.
5) Can I key the Emtek 1331 to my existing Schlage or Kwikset keys?
The 1331 uses an American cylinder and is offered in two keyways: Schlage (standard) and Weiser WR5. Weiser WR5 is the keyway a Kwikset-family key typically rides on. You also choose keyed different or keyed alike at no charge, and there is a field to supply a key code if you need it cut to an existing code.
6) Which levers can I use with the Emtek 1331 Tuscany bronze trim?
Any Emtek Lost Wax Cast Bronze lever in the Tuscany bronze range will pair with it. The lever choice is required at order time, with Medici, Napoli, Octagon, and Padua offered. Because the plates are cast bronze, sticking to the bronze lever family keeps the casting texture and finish consistent.
7) Is the Emtek 1331 single cylinder or double cylinder?
Single cylinder. Key on the outside, thumbturn or lever operation inside, which is the usual choice for a swinging patio door where you want to exit without a key. If your local code or insurer requires key-both-sides on a glazed door, this is not the function you want.
8) My current patio door lever sags. Does the Emtek 1331 fix that?
That is what the spring assist is for. Every current Emtek multi point trim, the 1331 included, ships with a spring assist that returns the lever to neutral and stops the handle drooping, which is the common failure on older multi point trim where the gearbox spring has given up.
9) What finishes does the Emtek 1331 Tuscany multi point trim come in?
Two: Flat Black Bronze (FB) and Medium Bronze (MB). Both are available with either the Schlage or the Weiser WR5 keyway. These are living bronze finishes on lost wax cast bronze, so they will develop a patina with handling over time.
10) Is the Emtek 1331 trim suitable for a commercial entrance?
It is classified residential. The Tuscany cast bronze multi point trim is built for swinging patio doors in homes, not for a commercial opening where you would be looking for a graded, cycle-tested device.
11) Is there a keypad or electronic version of the Emtek 1331?
No. The 1331 is strictly mechanical, keyed with an American cylinder. If you want electronic access on a multi point patio door you need a different Emtek trim line altogether.
12) Do I need to give my door thickness when ordering the Emtek 1331?
There is an optional door thickness field on the order. It is worth filling in, since multi point patio doors vary in thickness and the spindle and cylinder tailpiece length have to span the door. Supply the measured thickness if your door is anything other than standard.
