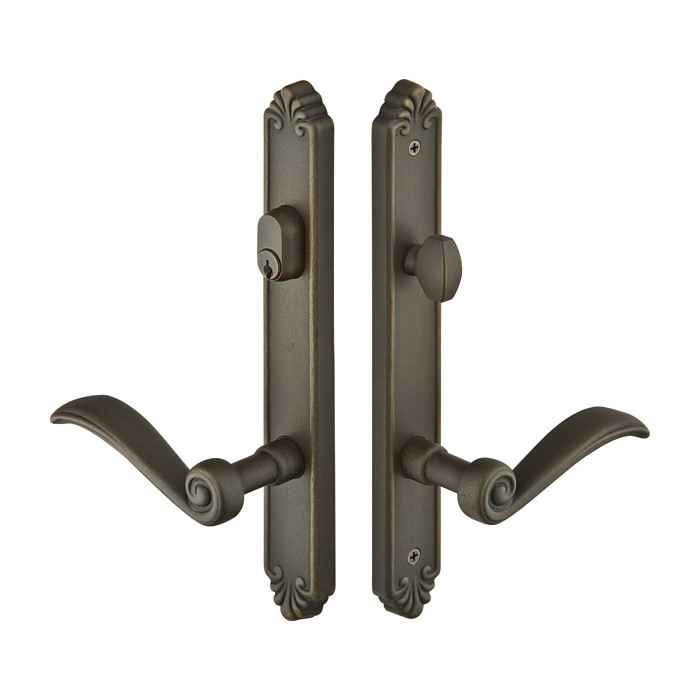

Emtek Emtek 1431 Multi Point Lock Trim (Door Config #4) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Keyed with American Cylinder Hub ABOVE Handle EMTEK-1431

Emtek 1431 Multi Point Lock Trim (Door Config #4) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Keyed with American Cylinder Hub ABOVE Handle

(No reviews yet) Write a Review

Model: 1431-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #4
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Above Handle
  • Product Type: Multi Point Lock Trim



Emtek 1431 Multi Point Lock Trim (Door Config #4) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Keyed with American Cylinder Hub ABOVE Handle

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Above Handle
Door Configuration:
#4
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), Weathershield
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1431
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
1-1/2" x 11-1/8"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1431-MB – Frequently Asked Questions

1) Does the Emtek 1431 multi point trim include the multi point lock body, or just the handles and plates?
Trim only. The 1431 set gives you the interior and exterior plates, the handles, and the cylinder. The multi point mortise lock box itself is not included, so if you are replacing a full mechanism you need to source the lock body separately. This is the right part when the multi point gearbox in the patio door is fine and the hardware on the face of the door is worn, damaged, or being restyled.
2) Will Emtek 1431 trim fit my Marvin or JELD-WEN swinging patio door?
Emtek lists the 1431 against door systems from Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), and Weathershield. The deciding detail is not the door brand alone but the hole pattern: this is Door Configuration #4, with 3-5/8 inch center-to-center between the handle hub and the cylinder, and the cylinder sitting above the handle. Measure your existing plate hub to cylinder spacing and note which one is on top before ordering.
3) What does Door Configuration #4 mean on Emtek multi point trim, and how do I know it's the one I need?
Configuration is Emtek's shorthand for where the keyed cylinder sits relative to the handle hub and how far apart they are. Config #4 puts the cylinder above the handle at 3-5/8 inch center-to-center. Multi point doors from different manufacturers drill different patterns, so a trim in the wrong configuration will not line up with the holes already in the door. Hold a tape on the door: center of the handle spindle hole to center of the cylinder hole, and check which sits higher.
4) Can I key this Emtek patio door trim to match my existing Schlage or Kwikset house keys?
Yes, within the two keyways offered. The 1431 uses an American cylinder and ships either with a Schlage keyway (the standard option) or a Weiser WR5 keyway, which is the Kwikset-family keyway. Keying is a free option at order: pick keyed different or keyed alike, and if you already know your key code you can supply it and have the cylinder cut to code so the patio door runs on the same key as the rest of the house. It's a single cylinder function, so key outside, thumbturn-style operation inside.
5) Do I have to specify handing when ordering Emtek 1431 multi point trim?
Handing is required, right hand or left hand, and it is not a field you can skip or correct later without a return. Stand outside the patio door: if the hinges are on your right and the door swings toward you, it's right hand. The lever and the cylinder position are built around that, so an LH trim will not read correctly on an RH opening.
6) What lever styles can I put on the Emtek Tuscany bronze multi point trim?
Four levers are offered on the 1431: Medici, Napoli, Octagon, and Padua. Lever choice is a required selection, not an accessory bought after. The plates are lost wax cast bronze in the Tuscany Bronze collection, and any Tuscany bronze lever will pair with them, so you can match levers already running on interior doors in the same collection.
7) How big are the plates on the Emtek 1431 trim, and will they cover the marks left by my old hardware?
Each Tuscany plate measures 1-1/2 by 11-1/8 inches. That is a narrow, tall escutcheon, which suits a patio door stile but leaves little margin sideways: if your old trim was a wider plate, the finish shadow or paint line outside 1-1/2 inches will still show. Measure the footprint of what's coming off before you commit.
8) Is Emtek 1431 bronze trim suitable for a commercial entrance or an apartment building door?
Emtek classes the 1431 as residential hardware, and it is built for swinging patio doors. For a leasing office entry, a commercial storefront, or a heavily cycled common-area door, this is the wrong shelf: those openings want a Grade 1 or Grade 2 commercial lockset. Where it does earn its place in multi-family is the unit-side patio or balcony door in a higher-end property, where the door already carries a multi point gearbox and the exposed hardware is what the resident sees.
9) Do I need to give a door thickness when ordering Emtek multi point lock trim?
Door thickness is an optional field on the 1431 order, but fill it in if your patio door is anything other than standard. The spindle and cylinder length have to span the door, and a thick or unusually built slab is exactly where a trim set arrives short. If you know the slab measurement, enter it.
10) Do the handles on this Emtek multi point trim sag over time like older patio door levers?
Emtek builds a spring assist into the current multi point trim, which returns the lever to level after each use. Sagging levers are the usual complaint on older patio door hardware, where the return spring lives only in the gearbox. On this set the trim carries its own return, so the lever holds the neutral position independent of the lock body behind it.
11) What finishes does the Emtek 1431 Tuscany multi point trim come in?
Two: Flat Black Bronze (FB) and Medium Bronze (MB). Both are on solid lost wax cast bronze, which is a living finish rather than a plated one, so it will develop patina with handling and weather exposure on an exterior patio door. Either finish can be had with the Schlage or the Weiser WR5 keyway.
12) Is the Emtek 1431 an electronic or smart lock?
No, the 1431 is mechanical trim, key operated with an American cylinder. There is no keypad, no motor, and no wiring in it. If a resident wants keyless entry on a multi point patio door, this is not the product to convert.
