Emtek 1741 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

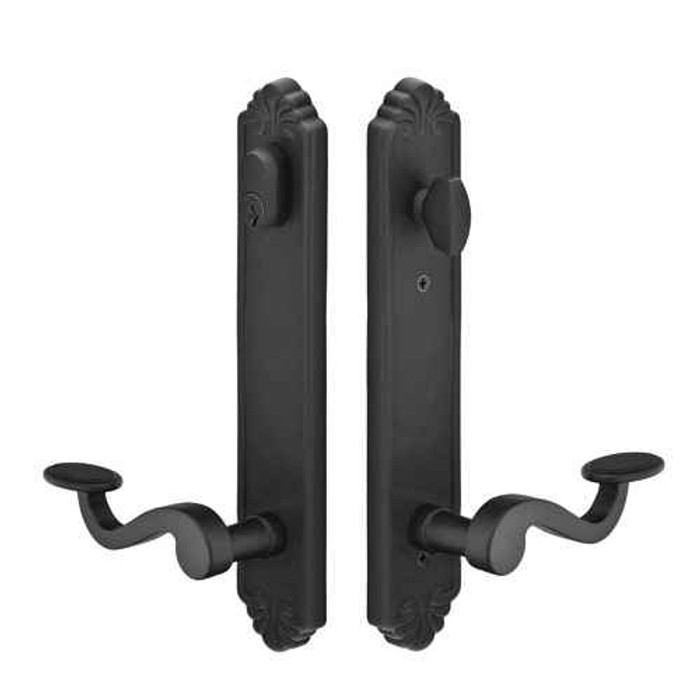

Emtek Emtek 1741 Multi Point Lock Trim (Door Config #7) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11"), Keyed with American Cylinder Hub ABOVE Handle EMTEK-1741

Emtek 1741 Multi Point Lock Trim (Door Config #7) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11"), Keyed with American Cylinder Hub ABOVE Handle

(No reviews yet) Write a Review

Model: 1741-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #7
  • Plate Size: 1.5" x 11"
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Above Handle
  • Product Type: Multi Point Lock Trim



Emtek 1741 Multi Point Lock Trim (Door Config #7) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11"), Keyed with American Cylinder Hub ABOVE Handle

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Above Handle
Door Configuration:
#7
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Trillenium (formerly W&F Manufacturing)
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1741
(CTC) Center-to-Center:
6"
Product Function:
Keyed with American Cylinder
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1741-MB – Frequently Asked Questions

1) Does the Emtek 1741 multi point trim include the multi point lock itself?
No. The Emtek 1741 is trim only. You get the plates, the handles, and the cylinder. The multi point mortise lock box has to be sourced separately, so if you are replacing worn hardware on a swinging patio door and the gearbox in the door is still good, this is the right part. If the gearbox is the problem, the trim alone will not fix it.
2) What does Emtek Door Configuration #7 mean on this Tuscany trim?
Configuration #7 on the 1741 is the layout of the plate: keyed, with the American cylinder hub placed ABOVE the handle, and a 6 inch center-to-center between the cylinder and the lever hub. Emtek's multi point trims are sold by configuration number because the plate has to line up with the holes already bored for the gearbox in your door. Match the configuration to the door prep, not just to the look.
3) Will this Emtek trim fit my patio door prep?
The deciding numbers are the plate size and the hub spacing. The Tuscany plate measures 1-1/2 by 11 inches, with 6 inches center-to-center and the cylinder sitting above the handle. If your existing door is bored for that spacing and that cylinder position, the 1741 drops in. If the cylinder on your door sits below the handle, or the spacing is anything other than 6 inches, you need a different Emtek configuration.
4) Which door brand is this Emtek 1741 configuration referenced to?
Emtek references Configuration #7 to Trillenium doors, formerly W and F Manufacturing. If you are re-trimming a Trillenium swinging patio door, this is the configuration to start from. Still confirm the hub spacing on the door itself, since one manufacturer can run more than one multi point prep.
5) Do I have to specify handing when ordering the Emtek 1741?
Yes, handing is a required choice: right hand or left hand. Multi point trim is handed because the lever and the plate have to orient to the swing of the door. Stand outside the door facing it; if the hinges are on your right it is right hand. Order the wrong hand and the lever will point the wrong way.
6) Which cylinder and keyway does the Emtek 1741 come with, and can I key it to my house key?
It ships with a single cylinder American-format cylinder, keyed from outside with a thumbturn or interior operation on the inside. You pick the keyway at order time: Schlage (standard) or Weiser WR5. Keying is a required selection too, either keyed different or keyed alike across multiple doors, and you can supply a key code if you want it cut to an existing key. Match the keyway to what the rest of the house already runs on.
7) Which lever styles can I put on the Emtek Tuscany bronze multi point trim?
Lever style is a required pick, and the Tuscany plates take any Lost Wax Cast Bronze lever. The choices are Medici, Napoli, Octagon, and Padua. Because the plates and levers are all Tuscany Bronze, the trim will match other Emtek Tuscany bronze hardware elsewhere in the house.
8) Do Emtek multi point levers sag over time?
Not on the current trim. Every Emtek multi point lock trim now includes a spring assist that returns the lever to the neutral horizontal position, which is what stops the droop you see on older multi point handles. If you are replacing sagging trim on a patio door, that is the fix.
9) Do I need to give the door thickness when I order the Emtek 1741?
There is an optional door thickness entry on the order. Multi point trim uses a spindle and cylinder tailpiece that have to reach through the door, so if your patio door is thicker than a standard slab, put the measured thickness in that field. On a standard thickness door you can leave it blank.
