Emtek Emtek 1241 Multi Point Lock Trim (Door Config #2) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Keyed with American Cylinder Hub ABOVE Handle EMTEK-1241

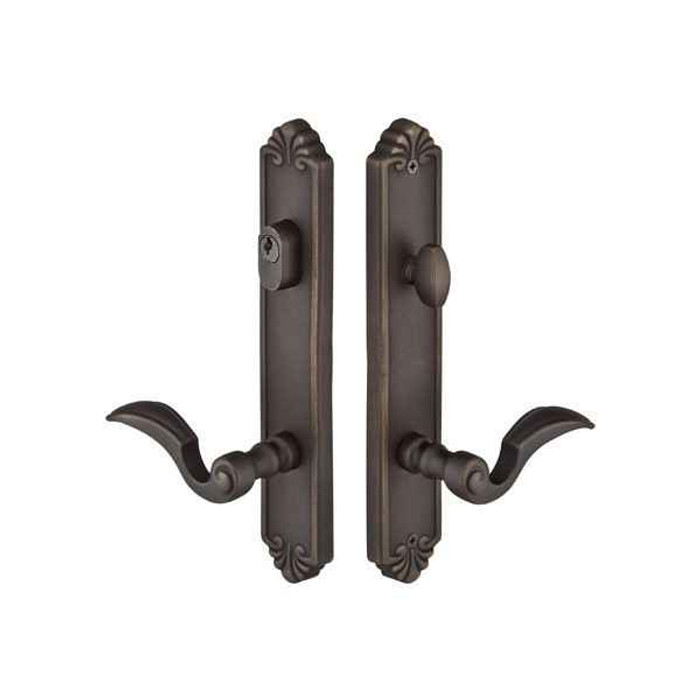

Emtek 1241 Multi Point Lock Trim (Door Config #2) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Keyed with American Cylinder Hub ABOVE Handle

(No reviews yet) Write a Review

Model: 1241-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #2
  • Plate Size: 2" x 10.5"
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Above Handle
  • Product Type: Multi Point Lock Trim



Emtek 1241 Multi Point Lock Trim (Door Config #2) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Keyed with American Cylinder Hub ABOVE Handle

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1241
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
2" x 10-1/2"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1241-MB – Frequently Asked Questions

1) Does the Emtek 1241 multi point trim include the multi point lock body?
No. The 1241 is trim only, and the multi point mortise lock box has to come from somewhere else. What ships is the interior and exterior plates, the handles, and the cylinder. If the multi point gearbox in the door is worn out or missing, this set will not fix it, but if the existing gearbox works and you just want new plates and levers on a swinging patio door, this is the right part.
2) What door manufacturers does the Emtek 1241 Door Config #2 trim line up with?
Emtek references Configuration #2 against BiltBest, G-U, Hurd (Energy Saver), and Andersen multi point doors. Config #2 also places the cylinder above the handle with a 3-5/8 inch center-to-center between the cylinder hub and the handle hub. Measure that dimension on your existing trim before ordering, because the configuration number is really just shorthand for that hub spacing and orientation.
3) My patio door has the key cylinder below the lever, not above. Will the Emtek 1241 work?
No, and this is the most common way people order the wrong Emtek multi point trim. The 1241 is Door Configuration #2, which puts the cylinder hub above the handle. If your existing trim keys below the handle, you need a different Emtek configuration, not this one. Confirm the hub order and the 3-5/8 inch spacing between hubs against the old plate first.
4) Do I have to specify handing on the Emtek 1241 Tuscany multi point trim?
Yes, handing is a required choice, right hand or left hand. Stand outside the door: if the hinges are on your right it is right hand, on the left it is left hand. Lever style is required too, and handing determines which way the lever points, so it cannot be flipped in the field the way a plain rosette set sometimes can.
5) Can I key the Emtek 1241 to match the Schlage or Kwikset keys I already carry?
The cylinder ships in either a Schlage keyway (the standard choice) or a Weiser WR5 keyway, and WR5 is the keyway Kwikset-family residential keys run on. Pick the one that matches the rest of the building and the existing key stays in service. Keying is set at order time: keyed different or keyed alike, and there is a field to key to a specific code if you are matching an existing system across several doors.
6) What levers can I use with the Emtek Tuscany bronze multi point trim plates?
Any lost wax cast bronze Tuscany lever pairs with these plates. On the order form the choices are Medici (MD), Napoli (NA), Octagon (OCL), and Padua (PD), and a lever style has to be picked, it is not optional. All four are in the Tuscany Bronze collection, so the lever and the plate match in material and finish.
7) Is the Emtek 1241 single cylinder or double cylinder?
Single cylinder. Key on the outside, thumbturn or lever operation on the inside, with an American cylinder in the exterior plate. If your local code or your insurer requires key access from both sides on a glazed patio door, this is not the function you want.
8) How big are the Emtek Tuscany 1241 plates, and will they cover the old trim's screw holes?
The plates measure 2 x 10-1/2 inches. That is a narrow, tall escutcheon, so it covers a vertical run of prep well but only 2 inches of width. If the trim coming off is wider than 2 inches, the old fastener holes will sit outside the new plate and show.
9) My patio door lever sags. Does the Emtek 1241 trim fix that?
Yes, that is exactly what the spring assist in this trim is for. Every one of these multi point trims now ships with a spring assist that returns the lever to neutral, which is the fix for the droop you get on a heavy patio lever after a few years of use. It is built into the trim, so there is nothing extra to order.
10) Do I need to give the door thickness when ordering the Emtek 1241 trim?
There is a door thickness field on the order form, and it is worth filling in. Multi point patio doors vary in thickness and the spindle and cylinder tailpiece have to span whatever is actually there. Measure the door slab at the lock edge and enter that figure rather than assuming standard.
11) What finishes does the Emtek 1241 Tuscany bronze trim come in?
Two: Flat Black Bronze (FB) and Medium Bronze (MB). Both are lost wax cast bronze, a solid cast material rather than plated, so it takes on a living patina outdoors instead of holding one fixed color. Either finish can be had with the Schlage or the Weiser WR5 keyway.
12) Does the Emtek 1241 have any electronic or smart lock function?
No, it is fully mechanical. Key on the outside, lever on the inside, no wiring, no batteries, no access control tie-in. If you want a keypad or a connected patio door, this trim is not the platform for it.
