Emtek 1341 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

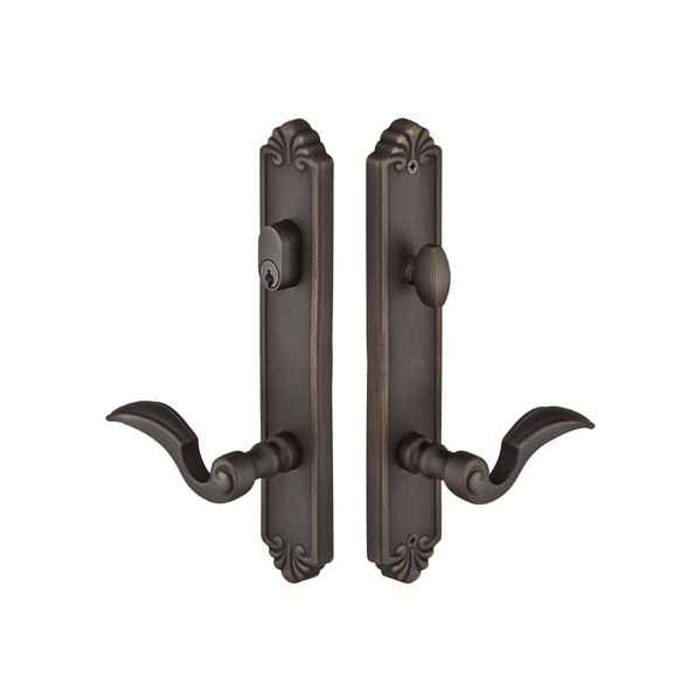

Emtek Emtek 1341 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Keyed with American Cylinder Hub ABOVE Handle EMTEK-1341

Emtek 1341 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Keyed with American Cylinder Hub ABOVE Handle

(No reviews yet) Write a Review

Model: 1341-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #3
  • Plate Size: 2" x 10.5"
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Above Handle
  • Product Type: Multi Point Lock Trim



Emtek 1341 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Keyed with American Cylinder Hub ABOVE Handle

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1341
(CTC) Center-to-Center:
4-1/8"
Product Function:
Keyed with American Cylinder
Product Size:
2" x 10-1/2"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1341-MB – Frequently Asked Questions

1) Does the Emtek 1341 multi point trim include the multi point lock body, or is it just the handles and plates?
Trim only. The 1341 set gives you the plates, handles, and cylinder. The multi point mortise lock box is not part of it, so if the door does not already have a working multi point lock installed, that has to be sourced separately. This is swinging patio door hardware, so the usual case is dressing a door that already has the lock body in it.
2) What does Door Configuration #3 mean on Emtek multi point trim, and how do I know it matches my door?
Configuration refers to the hole pattern already machined into the door and lock body: where the cylinder sits relative to the handle and how far apart they are. The 1341 is Config #3, which puts the keyed American cylinder ABOVE the handle at a 4-1/8 inch center-to-center spacing. Measure from the center of the existing cylinder hole to the center of the handle hub on your door. If it is 4-1/8 inches with the key on top, this is the configuration you want. If the cylinder falls below the handle, or the spacing is different, a different Emtek configuration applies.
3) Can I key the Emtek 1341 patio door trim to match my existing house key?
Yes, within the keyway families offered. The 1341 takes an American cylinder and ships in either the Schlage keyway (the standard choice) or the Weiser WR5 keyway, so pick the one your existing house keys use. Keying is single cylinder, meaning key outside and thumb operation inside. Keyed alike or keyed different is selected on the order, and there is a field to key to a specific code if your locksmith or builder gave you one.
4) Do I have to specify handing when ordering Emtek 1341 multi point trim?
Handing is required, right hand or left hand, and there is no reversing it after the fact on this trim. Stand outside the door, on the side you would use the key. If the hinges are on your right, it is right hand. Get this wrong and the lever points the wrong way and the cylinder does not line up with the prep.
5) What else do I have to pick before the Emtek 1341 trim order is complete?
Four choices are required and one is optional. Required: lever style (Medici, Napoli, Octagon, or Padua), handing, keyway (Schlage or Weiser WR5), and finish (Flat Black Bronze or Medium Bronze). Keying is also specified up front as keyed alike or keyed different, with an optional field for a specific key code. Door thickness is an optional entry, worth filling in if your patio door is anything other than standard so the cylinder length is right.
6) Do the levers on Emtek multi point trim sag over time like older patio handles?
Emtek now builds a spring assist into each multi point lock trim set. It returns the lever to horizontal after use, which is what stops the droop you see on older patio handles where the lever slowly settles below level. That is included, not an add-on.
7) What are the Emtek 1341 escutcheon plates made of and how big are they?
Lost wax cast bronze, in the Tuscany style, measuring 2 x 10-1/2 inches. Solid cast bronze rather than plated or tubular stock, which matters on a patio door: it takes exterior exposure and the two available finishes, Flat Black Bronze and Medium Bronze, are living bronze finishes that will patina with handling and weather rather than staying uniform. If you want a plate that looks the same in year five as day one, this is the wrong material family.
8) Can I match the Emtek 1341 patio door handle to the levers on my interior doors?
Yes, if those interior doors are in Emtek's Tuscany Bronze collection. The 1341 accepts any lost wax cast bronze lever from that family, and the four offered here (Medici, Napoli, Octagon, Padua) are the same lever designs Emtek sells on its interior trim. Order the same lever style and the same finish, Flat Black Bronze or Medium Bronze, and the patio door reads as part of the set rather than an odd one out.
9) Is the Emtek 1341 multi point trim suitable for a commercial building entrance?
No. This is residential hardware, cast bronze patio door trim for a swinging multi point door in a home. For a commercial entrance you want a Grade 1 mortise or cylindrical lockset built to commercial cycle and abuse standards, not a decorative multi point trim set. Property managers doing multi-family unit patio doors are the edge case where it fits, since those are residential openings.
10) Is the Emtek 1341 a smart lock or can it be made electronic?
Purely mechanical. The 1341 is a keyed trim set with an American cylinder and no electronic option, no motor, no keypad. If the goal is keyless entry on a multi point patio door, this is not the part, and no add-on module converts it.
