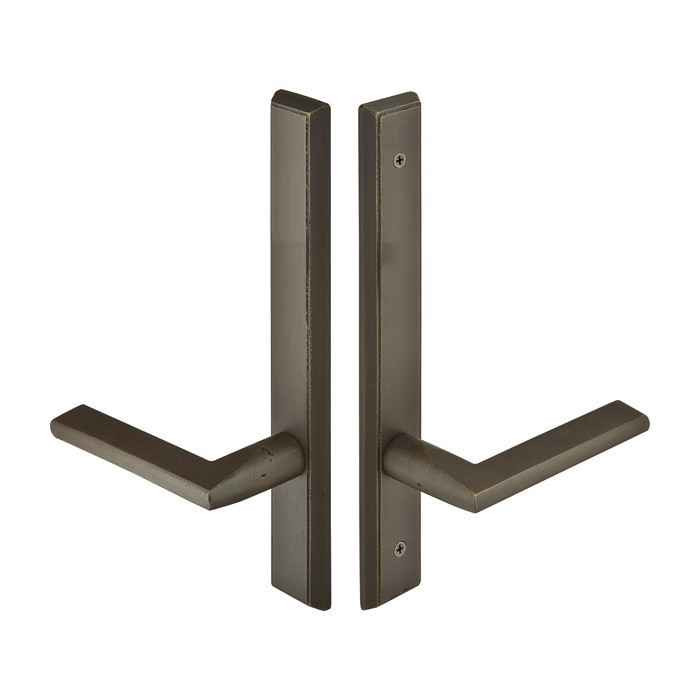

Emtek Emtek 1354 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-1354

Emtek 1354 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 1354-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #3
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Rectangular
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 1354 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Rectangular
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1354
(CTC) Center-to-Center:
4-1/8"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1354-FB – Frequently Asked Questions

1) Does the Emtek 1354 multi point trim include the lock body, or is it handles only?
Trim only. The Emtek 1354 set includes the plates and handles, and the multi point mortise lock box is not included. You need to source the multi point lock case separately (or reuse the one already in the door), then mount this trim to it.
2) What does Door Configuration #3 mean on an Emtek multi point trim, and is the 1354 the right one for my door?
Configuration #3 on the 1354 is the non-keyed setup with a fixed (dummy) handle outside and an operating lever inside, which is what goes on the semi-active leaf of a swinging patio door pair. If the door you are working on is the active leaf that gets keyed entry from outside, this is the wrong trim.
3) Will the Emtek 1354 trim line up with my existing multi point lock's handle and cylinder spacing?
The 1354 plates are drilled for 4-1/8 inch center-to-center between the handle spindle and the cylinder hole, with the cylinder position above the handle and sized for an American style cylinder. Measure your existing lock case: if its spacing is not 4-1/8 inches, or the cylinder sits below the handle, this trim will not register on the prep.
4) Does the Emtek 1354 fit Andersen patio doors?
Andersen is the referenced door manufacturer for this trim. It is built as swinging patio door hardware, so it suits a hinged French or patio door running a multi point lock, not a sliding panel.
5) What do I have to specify when ordering the Emtek 1354 trim?
Three choices are required or wanted at order time. Handing, right hand or left hand. Lever style, from ten Sandcast Bronze levers: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. And finish, in Flat Black Bronze (FB), Medium Bronze (MB) or Tumbled White Bronze (TWB). There is also a field to note your door thickness.
6) How big are the escutcheon plates on the Emtek 1354, and will they fit a narrow French door stile?
The plates measure 1-1/2 by 11 inches in the rectangular style. That is a slim plate, so it suits the narrow stiles typical of French and patio doors, but check that your stile face is wider than 1-1/2 inches clear of the glass stop before ordering.
7) Do I need to order a cylinder with the Emtek 1354?
No. The 1354 is the non-keyed trim for the semi-active leaf, so there is no key function on it. The cylinder goes in the active door's keyed trim instead.
8) Will the lever on this Emtek trim sag over time like my old patio door handle?
Emtek now builds the Spring Assist function into every multi point lock trim, including the 1354. It returns the lever to the neutral horizontal position and is there specifically to stop handle sag.
9) Is the Emtek 1354 trim suitable for a commercial opening?
It is classified as residential hardware. Sandcast bronze swinging patio door trim like this belongs on homes and residential-style multi-family entries. For a commercial entrance under heavy daily traffic, specify a commercial grade lock and trim instead.
10) What is the 1354 trim actually made of, and will the finish weather on an exterior patio door?
Plates and handles are sandcast bronze, a solid bronze substrate rather than plated zinc. The three living finishes, Flat Black Bronze, Medium Bronze and Tumbled White Bronze, are meant to patina and shift with handling and exposure, which is normal for this Sandcast Bronze collection rather than a defect.
11) Is there an electronic or keypad version of this Emtek multi point trim?
No. The 1354 is fully mechanical, with no electronic option on it. If you want keyless access on a multi point patio door, you need a different Emtek multi point trim configuration built for it.
