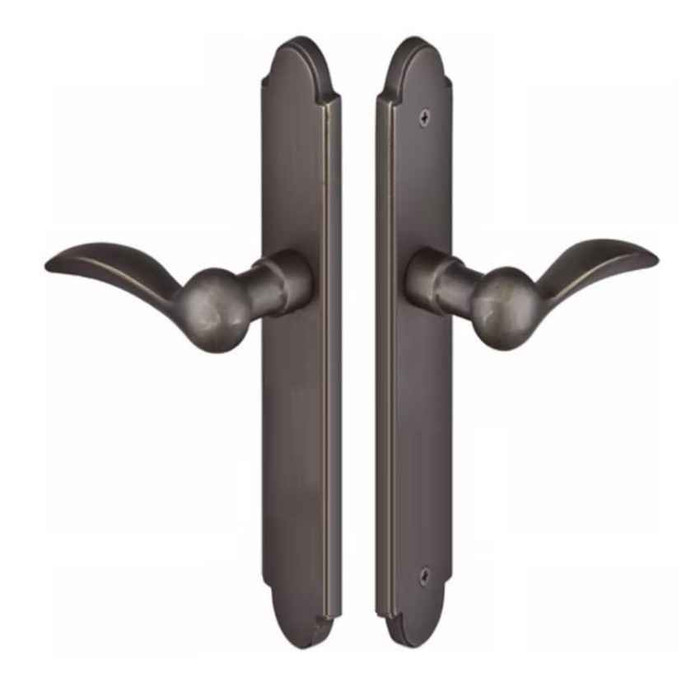

Emtek Emtek 1614 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-1614

Emtek 1614 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 1614-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #6
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 1614 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1614
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1614-FB – Frequently Asked Questions

1) What door brands does Emtek 1614 multi point trim fit?
Milgard and Pella are the referenced door manufacturers for this trim. The trim mounts to the mounting points of the existing multi point lock body, so the deciding numbers are the 3-5/8 inch center-to-center spacing and the plate footprint of 1-1/2 by 11 inches. Measure the spacing between the handle spindle and the cylinder hole on your door before ordering.
2) What does Door Configuration #6 mean on Emtek multi point trim?
Configuration #6 is the non-keyed arrangement for a semi-active door: a fixed (dummy) handle on the exterior with an operating lever on the interior. It is the inactive or standby leaf of a pair of patio doors, where you throw the multi point from inside and never key it from outside. If you need to unlock from outside with a key, that is a keyed configuration instead, not this one.
3) Do I have to specify handing when ordering the Emtek 1614 trim?
Yes, handing is a required selection: right hand or left hand. Door thickness is a separate entry field, so have that measurement in hand too. Lever style is also required and has to be chosen before the order is complete.
4) Will the 1-1/2 inch wide plate fit a narrow patio door stile?
The arched plate measures 1-1/2 by 11 inches, so it needs a flat mounting face at least that wide on the lock stile, plus clearance for the glass stop and any weatherstrip. On most swinging French and patio door stiles that is fine, but on a very narrow stile the 11 inch length is the thing to check as much as the width, since the cylinder prep sits 3-5/8 inches from the handle center.
5) Which levers can I put on the Emtek 1614 Sandcast Bronze trim?
Any Sandcast Bronze lever pairs with this trim. The choices are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. That lets you carry the same lever profile from the patio door to the rest of the Sandcast Bronze hardware in the house.
6) Where does the key cylinder sit on this Emtek multi point trim, and what cylinder does it take?
The cylinder position on this plate is below the handle, and the cylinder classification is American. That said, Configuration #6 is the non-keyed version with a fixed exterior handle, so the active leaf of the pair is where a keyed cylinder actually goes. Order the matching keyed configuration for that door.
7) Is the Emtek 1614 an electronic or smart lock trim?
No, it is fully mechanical with no electronic function. Nothing to wire, no power, no batteries, no access control integration.
