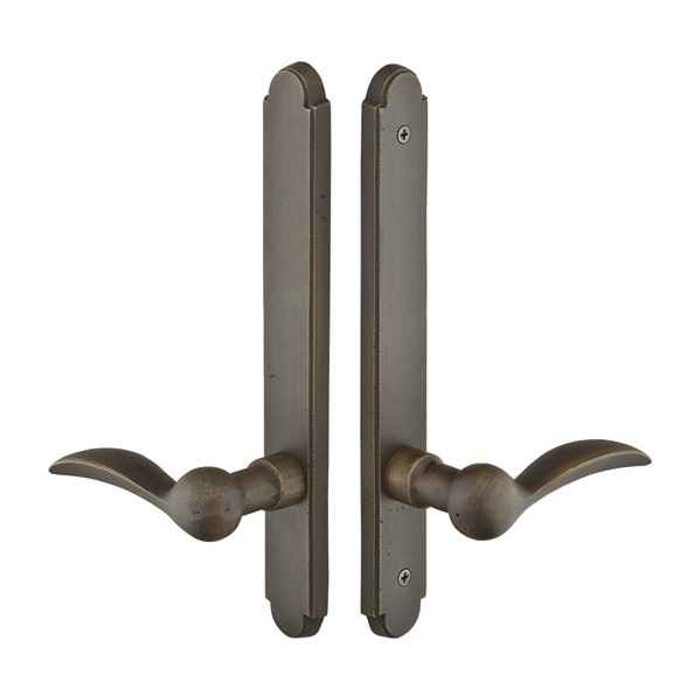

Emtek Emtek 1314 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-1314

Emtek 1314 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 1314-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #3
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 1314 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1314
(CTC) Center-to-Center:
4-1/8"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1314-FB – Frequently Asked Questions

1) Does the Emtek 1314 multi point trim include the multi point lock mechanism?
No. The Emtek 1314 is trim only: sandcast bronze plates and handles. The multi point mortise lock box is not included, so you need to keep the existing lock body in the door or source one separately.
2) What does Door Configuration #3 mean on an Emtek multi point trim?
Configuration #3 is the semi-active door setup: a fixed, non-keyed handle on the outside and an operating lever on the inside. It is what you put on the inactive or semi-active leaf of a swinging patio door pair, where the outside handle is a pull only and the lock is thrown from inside. If you need a keyed, fully operating outside handle, that is a different configuration.
3) Will the Emtek 1314 trim line up with my existing multi point lock handle holes?
The handle spindle centers are 4-1/8 inch center-to-center, and the cylinder opening sits above the handle. Measure your existing lock body's handle-to-cylinder arrangement against those two points. The plates themselves are 1-1/2 by 11 inches, so they need at least that much flat stile face to sit on.
4) Does Emtek 1314 trim fit Andersen patio doors?
Andersen is the reference door manufacturer for this trim, so it is dimensioned for Andersen multi point swinging patio door hardware. Confirm the handle center-to-center on your lock is 4-1/8 inches before ordering.
5) Do I have to specify handing and lever style when I order the Emtek 1314?
Yes, both are required selections. Handing is right hand or left hand, and you pick one of ten sandcast bronze levers: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton or Yuma. There is also an optional door thickness entry, so give the actual thickness of your patio door slab.
6) What finishes does the Emtek 1314 sandcast bronze trim come in?
Three sandcast bronze finishes: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). All three are from the Sandcast Bronze collection, so they match other Emtek sandcast bronze levers and pulls on the rest of the openings.
7) Is a key cylinder included with the Emtek 1314, or do I need one?
The 1314 is a non-keyed configuration, so no cylinder is supplied and the outside handle does not key. The plate is prepped for an American-classification cylinder above the handle if your lock body calls for one, but on a semi-active leaf it is normally left unkeyed.
8) Do the Emtek multi point levers sag over time?
Spring assist is built into the trim, which returns the lever to neutral and keeps the handle from drooping. That is included on Emtek multi point lock trim, not an add-on option.
9) Is the Emtek 1314 trim suitable for a commercial entrance?
It is a residential-rated product, built for swinging patio doors in homes. For a commercial or high-traffic entry you want commercial-grade entrance hardware instead.
10) What is the plate profile on the Emtek 1314, and will it suit a rustic door?
Arched style plate in solid sandcast bronze, 1-1/2 by 11 inches. The casting texture and the bronze finishes put it in Emtek's rustic direction, which is why it pairs with levers like Durango and Teton rather than the contemporary lines.
11) Is the Emtek 1314 an electronic or smart lock trim?
No, it's purely mechanical trim. No electronics, no wiring, no power required.
