Specifications:
- Door Configuration: Configuration #4
- Plate Size: 1.5" x 11"
- Material: Sandcast Bronze
- Plate Style: Arched
- Keyed: No
- Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
- Product Type: Multi Point Lock Trim

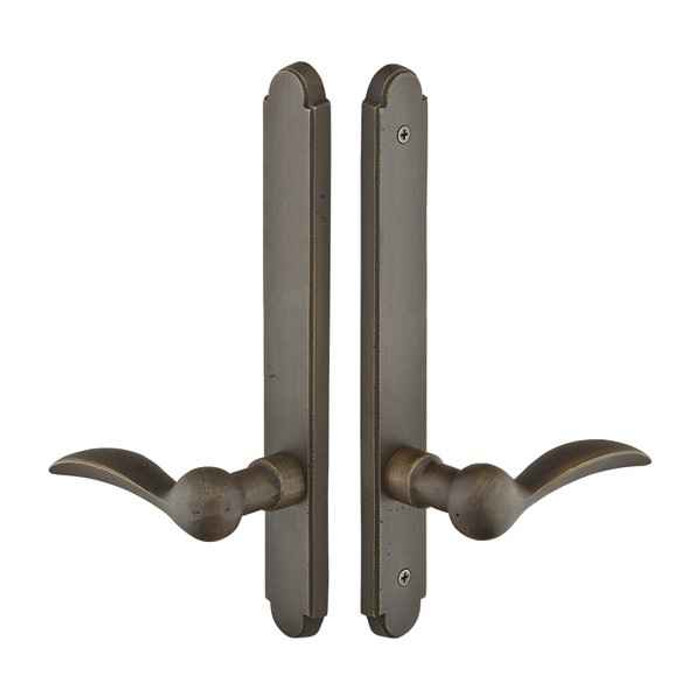

Emtek 1414 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)
- Can be ordered with any Sandcast Bronze Levers
- Swinging Patio Door Hardware. Set includes Plates, Handles
- Multi Point Mortise Lock Box not included. Trims Only
- Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources
Emtek Multi Point Pocket Booket
Product Specs
- Subcategory:
- Multi Point Lock Trim
- Product Group:
- Mechanical Locks
- Commercial/Residential:
- Residential
- Product Type:
- Multi Point Lock Trim
- Product Subgroup:
- Multi Point Lock Trim
- Collection:
- Sandcast Bronze
- Cylinder Position:
- Above Handle
- Door Configuration:
- #4
- Electronic:
- No
- Keyed:
- No
- Lock Type:
- Multi Point Trim
- Ref. Door Manufacturer(s):
- Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), Weathershield
- Series:
- Arched
- Theme:
- Rustic Living
- MAP Policy:
- Yes
- Product Model:
- 1414
- (CTC) Center-to-Center:
- 3-5/8"
- Product Function:
- Non-Keyed Fixed Handle Outside, Operating Handle Inside
- Product Size:
- 1-1/2" x 11"
- Cylinder Classification:
- American
- Product Style:
- Arched
- Product Material:
- Bronze
- Product Category:
- Mechanical Locks
- Product Substrate:
- Bronze
- Department:
- Door Hardware
Emtek 1414-FB – Frequently Asked Questions
1) What does Door Configuration #4 mean on the Emtek 1414, and which door leaf does it go on?
Configuration #4 is the semi-active (inactive) leaf of a pair of swinging patio doors. Outside you get a fixed handle that does not operate anything; inside you get an operating handle that retracts the multi point latches. There is no key cylinder on this one, so it is not for the main active door people unlock from outside.
2) Will Emtek 1414 trim fit my Marvin or JELD-WEN patio door multi point lock?
The Arched sandcast bronze trim is referenced to multi point systems from Ashland, G-U, Caradco, JELD-WEN, JELD-WEN Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco) and Weathershield. The critical dimension to match is the 3-5/8 inch center-to-center between the handle and the cylinder position above it.
3) Do I have to specify handing when ordering Emtek 1414 trim?
Yes, handing is a required selection: right hand or left hand. You also pick the lever style and can enter your door thickness. Handing on a semi-active leaf is determined by the swing of that leaf, not the active door.
4) How much stile width do I need for the Emtek 1414 arched plates?
The plates measure 1-1/2 inches by 11 inches, so the door stile has to be at least 1-1/2 inches of flat face plus enough edge clearance to sit the plate square. On narrow-stile french and patio doors that width is usually the deciding factor.
5) Which levers can I put on the Emtek 1414 sandcast bronze trim?
Any Emtek sandcast bronze lever works with it. The selectable styles are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma, so you can match the levers already on interior doors in the same house.
6) My patio door handles sag. Does this Emtek trim fix that?
Emtek multi point trim now ships with a spring assist that returns the lever to neutral, which is what stops the droop you get on heavy patio levers over time.
7) Can I key the Emtek 1414 or add a cylinder later?
No. The 1414 is the non-keyed configuration, fixed handle outside and operating handle inside. If you need a keyed exterior on that leaf, you need a keyed configuration of the Arched sandcast bronze trim instead, which takes an American-style cylinder positioned above the handle.
8) What finishes does the Emtek 1414 arched multi point trim come in?
Three sandcast bronze finishes: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). Sandcast bronze varies in texture and tone piece to piece, which is part of the rustic look but worth expecting if you are matching an existing set.
9) Is the Emtek 1414 rated for commercial openings?
It is a residential product, made for swinging patio and french doors in homes. For a commercial entrance you want a Grade 1 or Grade 2 commercial lockset rather than residential multi point patio trim.
