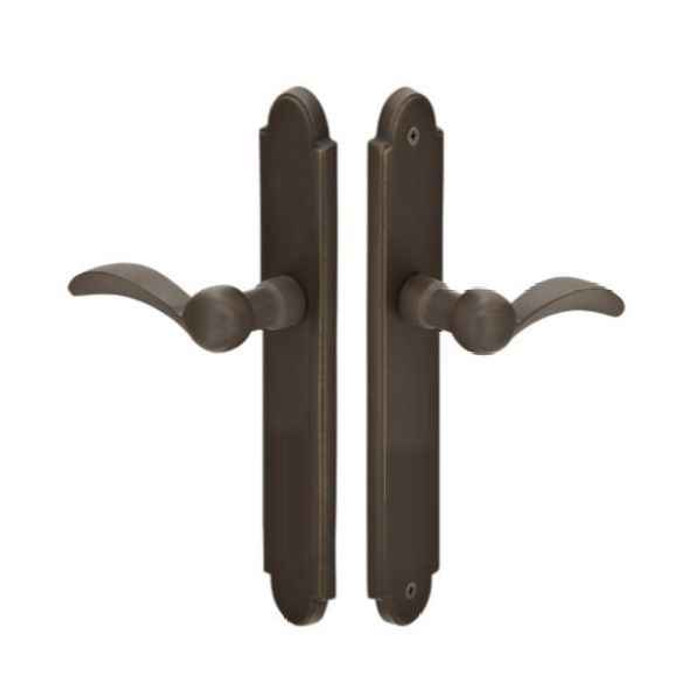

Emtek Emtek 1514 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-1514

Emtek 1514 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 1514-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #5
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 1514 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#5
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1514
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
1-1/2" x 11"
Cylinder Classification:
Euro Profile
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1514-FB – Frequently Asked Questions

1) Will Emtek 1514 trim fit my Therma-Tru or Hoppe multi point door?
Emtek lists the 1514 trim against multi point systems from Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor and Weathershield. The dimension that has to match is the 3-5/8 inch center-to-center between the handle and the cylinder hole, with the cylinder below the handle.
2) What does Door Configuration #5 mean on Emtek multi point trim?
Configuration #5 is the non-keyed setup for a semi-active door: a fixed (dummy) handle on the exterior and an operating lever on the interior. It is what you use on the inactive or semi-active leaf of a pair of swinging patio doors, where the outside handle is only a pull and all latch operation happens from inside. If you need key access from outside, this is the wrong configuration.
3) What do I have to specify when ordering the Emtek 1514?
Four things: finish (Flat Black Bronze, Medium Bronze, or Tumbled White Bronze), lever style, handing, and your door thickness. Lever choices are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Handing is right or left. Door thickness is a free-text entry so the trim is built for your slab.
4) What cylinder does this Emtek multi point trim take?
The 1514 is built around a Euro profile cylinder positioned below the handle, at 3-5/8 inch center-to-center from the handle. Note this particular trim is the non-keyed version, so the exterior side is a fixed handle with no key function.
5) How wide are the Emtek 1514 arched plates, and will they cover my existing trim?
The arched plates measure 1-1/2 x 11 inches. That narrow width suits a standard patio door stile, but it will not hide a larger cutout or wider escutcheon footprint left by previous hardware, so check what your old plate covered before swapping.
6) Is Emtek 1514 sandcast bronze trim suitable for a commercial entry?
It is a residential product. The 1514 belongs to Emtek's Sandcast Bronze collection for swinging patio doors in homes; for a commercial opening you want a Grade 1 commercial lockset rather than residential multi point patio trim.
7) Can I match the 1514 trim to other Emtek sandcast bronze hardware in the house?
Yes. The 1514 accepts any Emtek Sandcast Bronze lever, and it is offered in Flat Black Bronze, Medium Bronze and Tumbled White Bronze, which are the same living finishes used across the Sandcast Bronze collection. That lets the patio door match interior levers and entry sets.
8) Do the levers on this Emtek trim sag over time?
Emtek now builds Spring Assist into its multi point lock trim, which returns the lever to neutral and is there specifically to stop handles drooping. That matters on a patio door lever that gets used daily.
9) Is the Emtek 1514 an electronic or smart lock trim?
No, it is fully mechanical. There is no electronic or keypad function, and no keyed cylinder on this configuration either, so there is no wiring or power to plan for.
