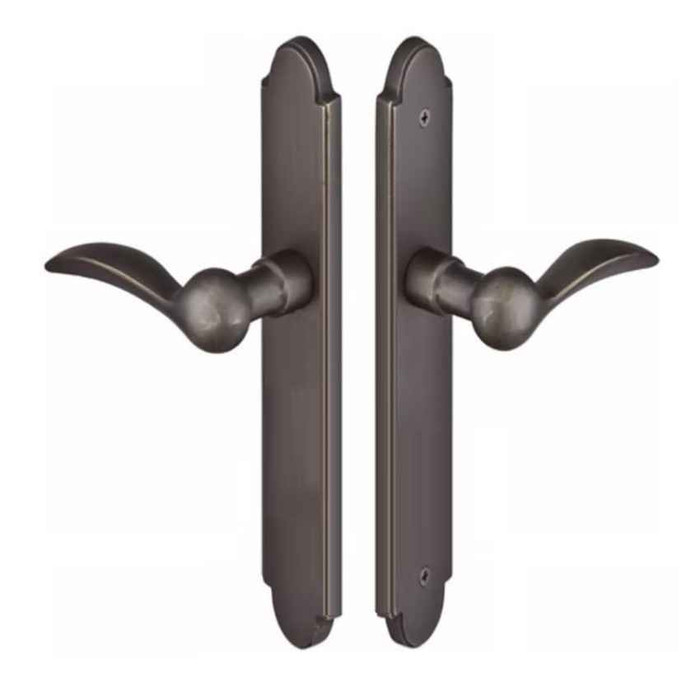

Name: Emtek 1114 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)
Brand: Emtek
SKU: 1114-FB
Price: 339.2 USD
Availability: InStock

Product Overview
FAQs

Specifications:

Door Configuration: Configuration #1
Plate Size: 1.5" x 11"
Material: Sandcast Bronze
Plate Style: Arched
Keyed: No
Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
Product Type: Multi Point Lock Trim

Emtek 1114 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

Can be ordered with any Sandcast Bronze Levers
Swinging Patio Door Hardware. Set includes Plates, Handles
Multi Point Mortise Lock Box not included. Trims Only
Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.

Manufacturer Resources

Manufacturer Resources

Emtek Multi Point Pocket Booket

Emtek LookBook

Product Specs

Subcategory:: Multi Point Lock Trim
Product Group:: Mechanical Locks
Commercial/Residential:: Residential
Product Type:: Multi Point Lock Trim
Product Subgroup:: Multi Point Lock Trim
Collection:: Sandcast Bronze
Cylinder Position:: Below Handle
Door Configuration:: #1
Electronic:: No
Keyed:: No
Lock Type:: Multi Point Trim
Ref. Door Manufacturer(s):: Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
Series:: Arched
Theme:: Rustic Living
MAP Policy:: Yes
Product Model:: 1114
(CTC) Center-to-Center:: 3-5/8"
Product Function:: Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:: 1-1/2" x 11"
Cylinder Classification:: American
Product Style:: Arched
Product Material:: Bronze
Product Category:: Mechanical Locks
Product Substrate:: Bronze
Department:: Door Hardware

Emtek 1114-FB – Frequently Asked Questions

1) Does the Emtek 1114 multi point trim include the multi point lock body, or is it just the handles and plates?

Trim only. The 1114 set is plates and handles; the multi point mortise lock box is a separate purchase. If you're replacing worn or damaged handles on a swinging patio door and the gearbox in the door still works, this is the right part. If the lock itself has failed, you need the mortise multi point lock body too.

2) What does Door Configuration #1 mean on Emtek multi point trim, and is it the right one for my door?

Configuration #1 is the non-keyed setup: a fixed (dummy) handle on the exterior and an operating handle on the interior. It's used on the semi-active leaf of a pair of swinging patio doors, the one you don't normally walk through and don't key from outside. If the door is your main entry and needs a key cylinder from the exterior, configuration #1 is the wrong trim.

3) Will Emtek 1114 trim fit my Andersen or Marvin multi point patio door?

The 1114 trim is referenced to multi point systems from Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster and Superior. The number that decides it is the center-to-center spacing between the handle spindle and the cylinder location: this plate is 3-5/8 inches CTC. Measure that on your existing door before ordering, because a door from any of those makers built to a different spacing will not line up.

4) Do I have to specify handing when ordering Emtek 1114 multi point trim?

Handing is required, right hand or left hand, and it isn't field reversible on the order form. Stand outside the door: if the hinges are on your right it's right hand. You also have to pick a lever style, and door thickness is entered as a text value so the spindle comes the right length for your slab.

5) How much stile do I need for the Emtek arched multi point plate?

The arched plate measures 1-1/2 x 11 inches, so the stile has to be at least an inch and a half wide with the plate centered on the lock. On narrow-stile aluminum or a slim wood patio stile, check the width before you order; the escutcheon overhanging onto the glass stop is the usual failure.

6) Which levers can I use with Emtek 1114 sandcast bronze multi point trim?

Any Emtek Sandcast Bronze lever pairs with this trim. The choices are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Picking the same lever you have on the interior passage and privacy doors is how you keep a whole house reading as one set.

7) What finishes does the Emtek 1114 sandcast bronze trim come in?

Three: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). All three are solid sandcast bronze rather than plated, so the finish is in the metal and will patina with exposure instead of flaking. Order the exterior door trim and the interior levers in the same code so they age together.

8) Can I add a keypad or smart lock to the Emtek 1114 multi point trim?

No. The 1114 is a mechanical, non-electronic trim with no cylinder on the exterior at all, since it's the fixed-handle configuration for the semi-active leaf. If you want keyed or electronic access, that goes on the active leaf with a keyed configuration; the plate on this one is drilled for a cylinder below the handle position, but the function itself is non-keyed.

9) Do Emtek multi point handles sag over time?

Each of these multi point trims now ships with a spring assist that returns the lever to neutral, which is what stops the drooping handle you see on older patio door trim. It's built into the trim, no separate spring cassette to order.
