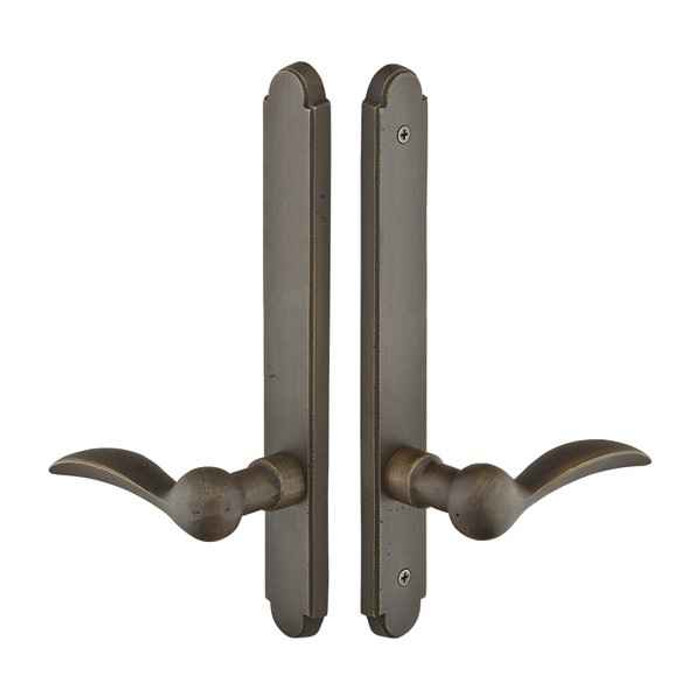

Emtek Emtek 1214 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-1214

Emtek 1214 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 1214-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #2
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 1214 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1214
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1214-FB – Frequently Asked Questions

1) Does the Emtek 1214 multi point trim include the multi point mortise lock body?
No. The 1214 is trim only, meaning plates and handles. The multi point mortise lock box is a separate purchase, so you need to already have a working multi point lock in the door or order one alongside it.
2) What does the non-keyed fixed handle outside / operating handle inside function mean on a patio door?
It is the semi-active leaf setup. Outside you get a fixed pull that does not retract anything, and inside you get an operating lever that runs the multi point lock. No cylinder is involved, since the 1214 is non-keyed. Use it on the second leaf of a pair, not on the active door someone keys in through.
3) Which door manufacturers' multi point systems is Emtek Door Configuration #2 trim referenced for?
Configuration #2 is referenced to BiltBest, G-U, Hurd (Energy Saver) and Andersen multi point systems. The configuration number describes the hole pattern and handle/cylinder layout in the door, so confirm your slab was prepped to config #2 before ordering.
4) What is the center-to-center spacing on the Emtek 1214 arched plate?
3-5/8 inches center to center, with the cylinder position above the handle on this configuration. That spacing has to match the existing prep in the door, otherwise the plate holes will not line up with the lock body spindle and cylinder hole.
5) Do I have to specify handing when ordering the Emtek 1214 trim?
Yes, handing is required. You pick right hand or left hand, plus a lever style, and you can note door thickness. Handing is determined by the door the trim goes on, so get it off the actual leaf rather than the pair.
6) I need a keyed cylinder on my active patio door leaf, is the 1214 the right trim?
No. The 1214 is non-keyed, built for the semi-active leaf with a fixed outside pull. For the active leaf you want a keyed Emtek multi point trim in the same Sandcast Bronze arched style, in Configuration #2. Cylinder classification on this family is American, positioned above the handle.
7) Will the 1-1/2 x 11 inch arched plate cover the old escutcheon marks on my patio door stile?
The plate measures 1-1/2 by 11 inches, which is a narrow arched profile. On a patio door stile it sits comfortably, but it will not hide a wider previous escutcheon. Measure the existing footprint against 1-1/2 by 11 before you pull the old trim.
8) Which levers can I put on the Emtek 1214 sandcast bronze trim?
Any Sandcast Bronze lever works with it. The lever choices are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma, so you can match levers already used on interior doors in the same house.
9) Will the inside lever on this Emtek multi point trim sag over time?
No. Emtek multi point trim now ships with a spring assist that returns the lever to neutral, which is what prevents the drooping handle you see on older multi point sets.
10) Is the Emtek 1214 trim suitable for a commercial entrance?
It is a residential swinging patio door trim, not a commercial-duty entry set. For a commercial opening with traffic and code requirements, look at a Grade 1 mortise lockset instead of multi point patio trim.
11) Does the Emtek 1214 multi point trim have any electronic or keypad option?
No, it is fully mechanical with no electronic version. If you want code or app entry on a patio door, that has to come from a different product line entirely.
