Emtek Emtek 1383 Multi Point Lock Trim (Door Config #3) - Brass Plates, Concord Style (2" x 10.5"), Non-Keyed American Style Thumbturn Inside EMTEK-1383

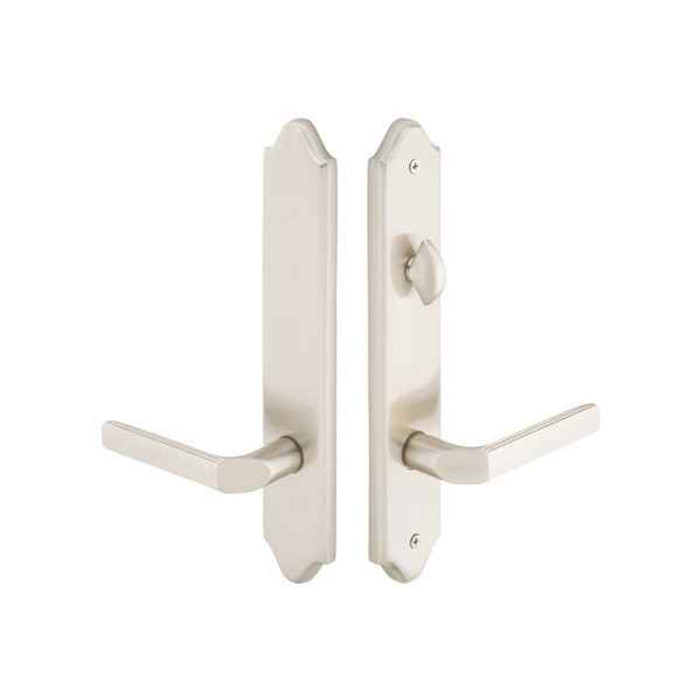

Emtek 1383 Multi Point Lock Trim (Door Config #3) - Brass Plates, Concord Style (2" x 10.5"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1383-US15
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #3
  • Plate Size: 2" x 10.5"
  • Material: Brass
  • Plate Style: Concord
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1383 Multi Point Lock Trim (Door Config #3) - Brass Plates, Concord Style (2" x 10.5"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Concord
Theme:
American Classic
MAP Policy:
Yes
Product Model:
1383
(CTC) Center-to-Center:
4-1/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2" x 10-1/2"
Cylinder Classification:
American
Product Style:
Concord
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1383-US15 – Frequently Asked Questions

1) Does the Emtek 1383 multi point trim include the multi point mortise lock body?
No. The 1383 is trim only, plates and handles. The multi point mortise lock box is a separate purchase, so you need the lock body already in the door or ordered alongside it. Plan the order as two pieces: the multi point lock and this Concord trim set to dress it.
2) What does Door Configuration #3 mean on Emtek multi point trim, and how do I know it is the one I need?
Configuration #3 describes where the cylinder and thumbturn sit on the plate. On the 1383 the exterior plate is non-keyed and the interior carries a thumbturn, with the cylinder position above the handle and an American cylinder format. Match that layout to the prep already bored in your patio door: if your door needs a keyed exterior, or the cylinder sits below the handle, a different configuration number applies.
3) Will the Emtek Concord multi point trim line up with my existing 4-1/8 inch handle-to-cylinder spacing?
Center-to-center on the Concord trim is 4-1/8 inches, measured between the handle and the cylinder opening. That is the number that has to match the holes already in your door. Measure your existing plate hole spacing before ordering; if it comes out to anything other than 4-1/8 inches, this plate will not drop onto the existing prep.
4) Do I have to specify handing when ordering Emtek 1383 multi point trim?
Handing is required, right hand or left hand, and there is no reversing it after the fact. Stand outside the door, on the side you would key it from: if the hinges are on your right it is right hand, on your left it is left hand. Get this wrong and the thumbturn and lever land on the wrong axis for your swing.
5) Will Emtek 1383 multi point trim work on an Andersen patio door?
Andersen is the referenced door manufacturer for this trim, so it is built around that hinged patio door platform. Confirm two things on your specific door before ordering: the multi point lock prep matches Configuration #3 with the cylinder above the handle, and the handle-to-cylinder spacing measures 4-1/8 inches.
6) Is the Emtek 1383 a keyed exterior lock or non-keyed?
Non-keyed. The exterior plate takes no cylinder and the inside has a thumbturn that throws the multi point lock. That makes it the right choice for a door you secure from inside, a rear patio or a garden door, and the wrong choice for an entry you need to lock behind you on the way out. For that, order the keyed configuration instead.
7) How big is the Emtek 1383 Concord plate, and will it cover the marks left by my old patio door hardware?
The Concord plate measures 2 by 10-1/2 inches. It is a narrow, tall escutcheon meant for a patio door stile. If the previous trim was wider than 2 inches, the edges of the old footprint will show; if it was shorter than 10-1/2 inches, the new plate covers it lengthwise with room to spare.
8) Does the Emtek 1383 trim come with levers, or do I order those separately?
Levers are part of the order, not an extra purchase, but you have to choose the style. The 1383 takes any Emtek brass lever, and the choices run from the L-Square, T-Bar and R-Bar bar levers in finishes like Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, through the Athena, Helios, Hermes, Luzern, Poseidon and Stuttgart levers, to traditional shapes such as Cortina, Milano, Merrimack, Turino, Coventry, Rope, Rustic, Santa Fe, Wembley, Arts and Crafts and Hammered. Pick the lever style and the plate finish together so the patio door matches the rest of the openings.
9) Why does the order form ask for door thickness on Emtek multi point lock trim?
Spindle and screw length depend on how thick the door is, so the thickness entry sizes the through-hardware to your slab. Measure the actual door edge rather than assuming, patio door stiles vary. It is an optional entry, but supplying it is how you avoid a spindle that bottoms out or falls short.
10) Is Emtek Concord multi point trim rated for commercial traffic or is it residential hardware?
Residential. The Concord trim is solid brass, built for swinging patio doors on homes and multi family units rather than high-cycle commercial entrances. For a commercial storefront or an institutional opening, specify a commercial grade device instead.
11) My multi point lock uses a Euro profile cylinder. Can I use Emtek 1383 trim?
The 1383 is set up for an American cylinder format, not Euro profile. That said, this particular set is non-keyed, so no cylinder goes into the exterior plate at all. The classification matters when you cross-shop the keyed version of the same Concord trim, which expects an American cylinder rather than a Euro one.
12) Which finishes does the Emtek Concord multi point trim come in for matching the rest of my door hardware?
Eight finishes: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL) and French Antique (US7). Unlacquered brass is the one to watch on a fleet of units, it darkens with handling by design rather than staying bright.
13) Do Emtek multi point levers sag over time like older patio door handles?
Each of these trim sets ships with a spring assist in the plate that returns the lever to horizontal, which is what stops the droop you see on older patio hardware after a few years of use. It is built into the trim, not an option you add.
