Emtek Emtek 1683 Multi Point Lock Trim (Door Config #6) - Brass Plates, Concord Style (2" x 10.5"), Non-Keyed American Style Thumbturn Inside EMTEK-1683

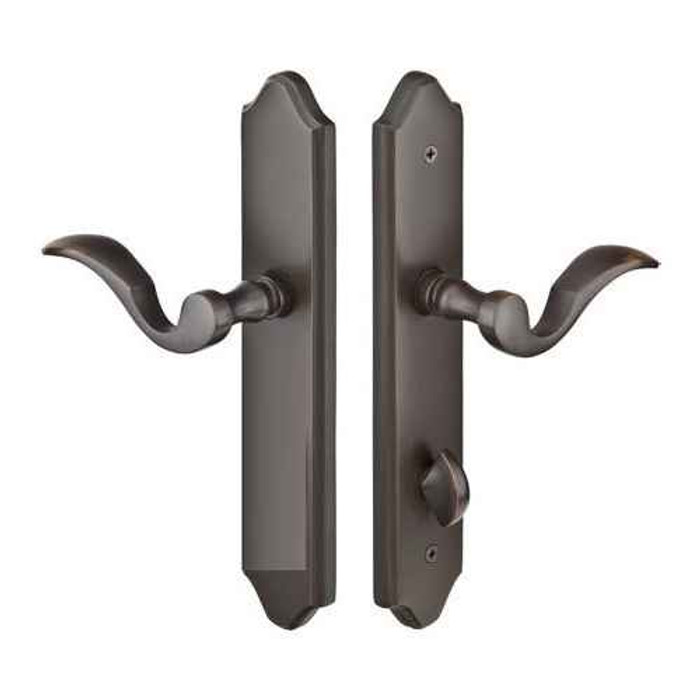

Emtek 1683 Multi Point Lock Trim (Door Config #6) - Brass Plates, Concord Style (2" x 10.5"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1683-US15
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #6
  • Plate Size: 2" x 10.5"
  • Material: Brass
  • Plate Style: Concord
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1683 Multi Point Lock Trim (Door Config #6) - Brass Plates, Concord Style (2" x 10.5"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Concord
Theme:
American Classic
MAP Policy:
Yes
Product Model:
1683
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2" x 10-1/2"
Cylinder Classification:
American
Product Style:
Concord
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1683-US15 – Frequently Asked Questions

1) What is Emtek Door Configuration #6 multi point trim, and will it match my patio door's lock?
Configuration #6 describes the layout of the trim: a lever above and the cylinder position below the handle, with an American style cylinder prep and a thumbturn on the inside instead of a key. Emtek multi point trim is sold by configuration because the plate must line up with the holes already in your swinging patio door. Confirm your door is prepped for config #6 with the cylinder below the handle before ordering, because a plate cut for a different configuration will not land on the existing prep.
2) Will Emtek 1683 trim fit a Milgard or Pella swinging patio door?
Milgard and Pella are the reference door manufacturers for this trim. It still comes down to the prep: config #6 layout, cylinder below the handle, and 3-5/8 inches center to center. Measure the door you have against those three before you order rather than going on brand alone.
3) Do I have to specify handing when I order Emtek Concord multi point trim?
Yes, handing is a required choice: right hand or left hand. So is the lever style, and there is a field for door thickness so the spindle and screw pack suit your slab. Get the handing wrong on a patio door and the thumbturn and lever sit backwards, so stand outside the door looking in and note which side the hinges are on before you order.
4) What finishes does the Emtek 1683 Concord multi point trim come in?
Eight: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), and French Antique (US7). Unlacquered brass is the one to note if you are matching a set of doors, since it has no clear coat and will patina over time while the others hold their appearance.
5) Is the Emtek 1683 keyed, or does it lock with a thumbturn?
Non-keyed. The inside gets an American style thumbturn and there is no key cylinder supplied with the trim. If you want the door keyed from the outside, this is the wrong trim set to start from, because the plate is finished for a thumbturn rather than a cylinder on the interior side.
6) How big are the Concord plates on the Emtek 1683?
The Concord plate measures 2 x 10-1/2 inches. On a patio door with a narrow stile, that 2 inch dimension is the one that decides whether the plate sits cleanly on the face without running into the glazing bead or the edge of the stile. Check the flat face you have to work with before committing.
7) Can I pick the lever style on Emtek multi point trim, or is it fixed?
You pick it, and the choice is wide: L-Square, T-Bar and R-Bar bars in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, plus cast levers including Athena, Helios, Hermes, Luzern, Poseidon, Stuttgart, Cortina, Milano, Merrimack, Turino, Coventry, Rope, Rustic, Santa Fe, Wembley and Arts and Crafts. Any brass lever can be ordered with these plates, which is how you match the patio door to the interior door levers already in the house.
8) Is Emtek 1683 Concord trim rated for a commercial entry or is it residential hardware?
Residential. The Concord multi point trim is solid brass built for swinging patio doors on homes. For a commercial entrance taking daily public traffic, look at a Grade 1 commercial mortise or cylindrical lockset instead of residential patio trim.
9) Will Emtek multi point levers sag over time like my old patio door handle?
Each Emtek multi point trim set now ships with a spring assist that returns the lever to the neutral position, which is what stops the droop you get on older patio door handles once the gearbox spring tires. That is built into the trim, not something you order separately.
10) Is the Emtek 1683 solid brass or plated zinc?
Brass, both the plates and the substrate, and it is part of Emtek's brass collection. That matters on an exterior patio door: brass takes the finishes on offer here, including unlacquered brass, and holds up better to weather exposure than a plated pot metal handle set.
11) Is Emtek 1683 an electronic or smart lock trim?
No, it is mechanical trim. There is no keypad, no motor and no wiring in the 1683, and the inside locks by hand with the thumbturn. If you want keyless entry on a patio door, this is not the trim to build on.
