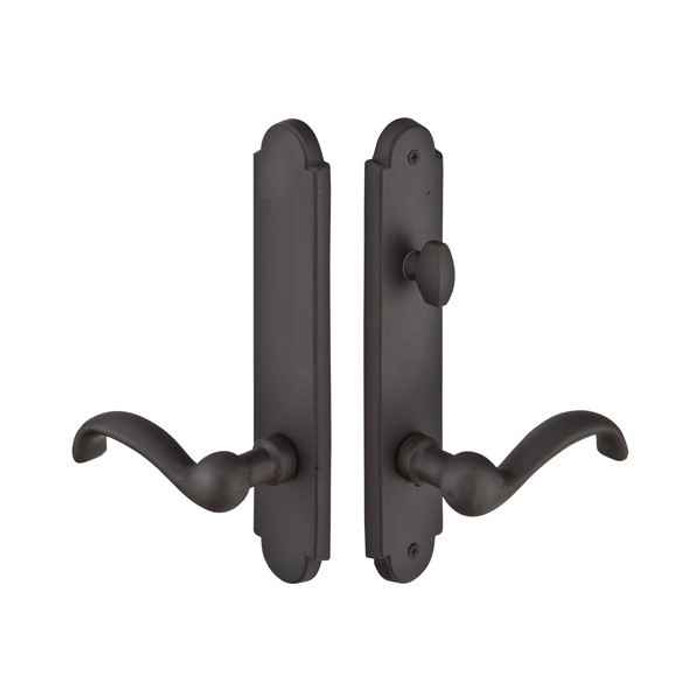

Emtek Emtek 1423 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed American Style Thumbturn Inside EMTEK-1423

Emtek 1423 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1423-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #4
  • Plate Size: 2" x 10"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1423 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#4
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), Weathershield
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1423
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1423-FB – Frequently Asked Questions

1) Will the Emtek 1423 trim fit my patio door's existing multi point lock?
It is built for Door Configuration #4 with a 3-5/8 inch center-to-center between the handle and the cylinder hole, cylinder above the handle, American style cylinder prep. Match those three things to your door's existing prep. Emtek references this trim against multi point doors from Ashland, G-U, Caradco, JELD-WEN, JELD-WEN Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco) and Weathershield.
2) Is the Emtek 1423 keyed from the outside?
No, it is the non-keyed version: thumbturn on the interior, no key cylinder. Locking and unlocking happens from inside only. If you need to key the door from the exterior, choose the keyed version of the same configuration instead.
3) What do I have to specify when ordering the Emtek 1423 arched trim?
Three choices are on the order. Finish: Flat Black Bronze, Medium Bronze, or Tumbled White Bronze. Lever style, from ten Sandcast Bronze levers: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, Yuma. And handing, right or left. Door thickness can also be entered. Handing and lever are both required, so neither can be left blank.
4) Why does handing matter on a multi point lock trim?
A swinging patio door trim set carries the lever and thumbturn on specific sides, so right hand and left hand are not interchangeable. Stand outside the door: if the hinges are on your right it is right hand. Getting it wrong means the lever throws the wrong way against the gear, and the set has to go back.
5) How big are the Emtek 1423 plates, and will they cover my old trim?
The arched plates measure 2 x 10 inches. That is a narrow escutcheon, so on a replacement it covers the handle and cylinder holes but will not hide a wider previous plate's screw holes or finish shadow. Compare against what is on the door before pulling the old set.
6) Do the Emtek Sandcast Bronze levers sag over time?
Each of these multi point trim sets now includes a Spring Assist function that returns the lever to neutral, which is what stops the drooping handle you see on older patio door trim. Nothing extra to order for it.
7) Is the Emtek 1423 trim rated for a commercial entrance?
It is a residential product, part of Emtek's Sandcast Bronze collection for swinging patio doors. For an apartment community or a light commercial patio opening it is a finish and style decision, not a duty-rated one, so specify it where residential-grade hardware is acceptable.
8) Can I match Emtek 1423 trim to other Sandcast Bronze hardware in the house?
Yes. It is solid bronze from Emtek's Sandcast Bronze collection and takes any Sandcast Bronze lever, so patio door trim, interior levers and entry sets can run the same lever design and the same finish. Pick one of Flat Black Bronze, Medium Bronze or Tumbled White Bronze and carry it through.
