Emtek 1123 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20
Emtek Emtek 1123 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed American Style Thumbturn Inside EMTEK-1123

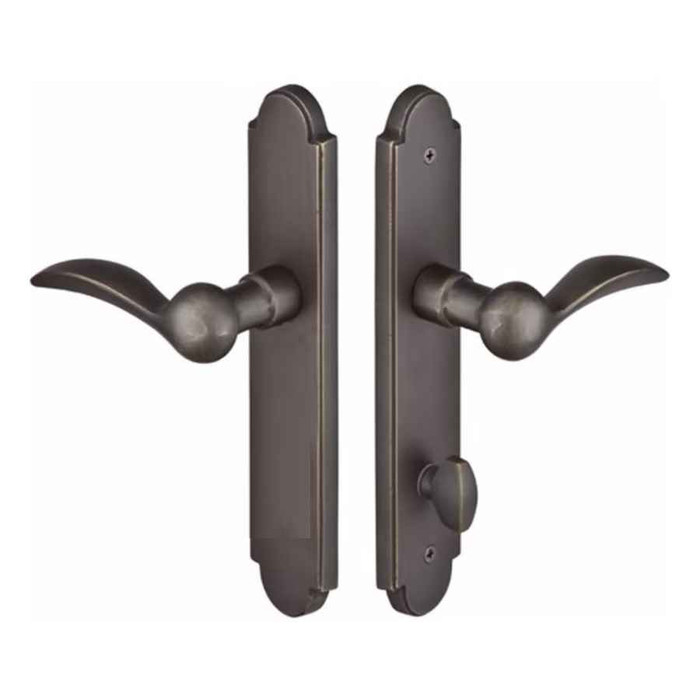

Emtek 1123 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1123-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #1
  • Plate Size: 2" x 10"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1123 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#1
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1123
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1123-FB – Frequently Asked Questions

1) Does the Emtek 1123 multi point trim include the multi point mortise lock body?
No. The Emtek 1123 is trim only: plates and handles. The multi point mortise lock box has to be sourced separately, so if you are replacing worn handles on an existing patio door you order this, and if the gearbox itself has failed you need the lock body too.
2) Will the Emtek 1123 trim fit my Andersen or Marvin swinging patio door?
The 1123 is a Door Configuration #1 trim with 3-5/8 inch center-to-center spacing between the handle and the cylinder hole. Emtek references it against Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster and Superior doors. Measure your existing plate's handle-to-cylinder spacing and confirm it is 3-5/8 inches before ordering, since configuration is what decides fit, not the door brand alone.
3) Is the Emtek 1123 keyed, and how does it lock from inside?
It is the non-keyed version. There is no cylinder supplied with it and no key function on the exterior; the inside plate carries an American style thumbturn that throws and retracts the multi point lock. The cylinder hole sits below the handle, so if you later want key access from outside you would move to the keyed version of the same Configuration #1 trim rather than modifying this one.
4) What do I have to specify when ordering the Emtek 1123 trim?
Four things. Finish, from Flat Black Bronze (FB), Medium Bronze (MB) or Tumbled White Bronze (TWB). Lever style, from Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton or Yuma. Handing, right hand or left hand. And your door thickness, which is an optional text entry. Get the handing wrong and the lever will point the wrong way on the door.
5) How big are the plates on the Emtek 1123 arched trim?
Each plate measures 2 x 10 inches in the arched profile. That footprint has to sit within the stile face of the patio door and cover the existing plate cutout, so check the old plate before ordering if you are swapping trim on a door that carried a different style.
6) Will Emtek sandcast bronze levers from other sets work with this trim?
Yes. The 1123 accepts any Emtek Sandcast Bronze lever, which is why the ten lever choices span the whole collection. That is how you match a patio door to the interior passage and privacy sets already in the house.
7) Do Emtek multi point lever handles sag over time?
The 1123 trim ships with the Spring Assist function, which returns the lever to horizontal and is there specifically to stop the droop you see on older multi point patio hardware. Nothing extra to order for it.
8) Is this Emtek trim suitable for a commercial entrance?
No, the 1123 is classified residential swinging patio door hardware in sandcast bronze. For a commercial opening with traffic and code requirements you want a Grade 1 or Grade 2 commercial lockset rather than multi point patio trim.
9) Is the Emtek 1123 an electronic or smart lock?
Purely mechanical. No electronics, no wiring, no power supply, and no keyway on this version, just the inside thumbturn driving the multi point lock.
10) What is the 1123 made of, and how will the finish age?
Plates and handles are sandcast bronze, solid bronze substrate rather than plated zinc. The three finishes (Flat Black Bronze, Medium Bronze, Tumbled White Bronze) are living bronze finishes that shift with handling and weather on an exterior patio door, which is the point of the rustic look.
