Emtek 1623 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

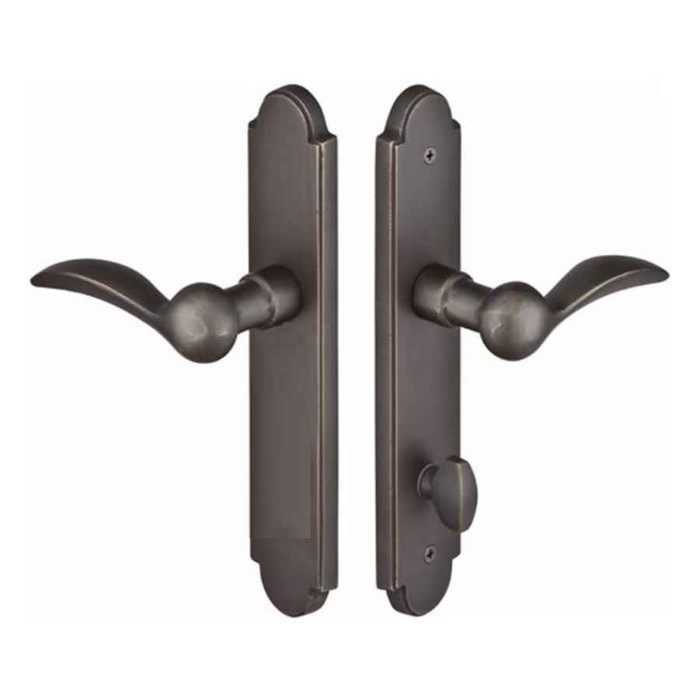

Emtek Emtek 1623 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed American Style Thumbturn Inside EMTEK-1623

Emtek 1623 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1623-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #6
  • Plate Size: 2" x 10"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1623 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1623
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1623-FB – Frequently Asked Questions

1) What does Door Configuration #6 mean on Emtek multi point trim?
Configuration #6 describes the layout of the plate on the Emtek 1623: a non-keyed exterior plate with an American style thumbturn on the inside, with the cylinder position below the handle. Emtek builds multi point trim to match the hole pattern already machined into the door, so the configuration number is how you match the trim to the door prep. Get the configuration wrong and the plate holes will not line up with the lock spindle and cylinder bores.
2) Will the Emtek 1623 trim fit my Pella or Milgard swinging patio door?
Milgard and Pella are the reference door manufacturers for this trim, and it is built for swinging patio door hardware. The deciding detail is the prep: the plate is 2 by 10 inches with 3-5/8 inch center-to-center spacing and an American cylinder bore below the handle. Measure the center-to-center on your existing trim before ordering.
3) Do I have to specify handing when ordering Emtek 1623 arched multi point trim?
Yes, handing is required. You choose Right Hand or Left Hand, and the thumbturn and lever orientation follow that choice. Stand outside the door: if the hinges are on your right and the door pulls toward you, it is right hand. You also have to pick a lever style, and door thickness can be entered as a note with the order.
4) Is there a key cylinder on the Emtek 1623, or just a thumbturn?
Non-keyed. The 1623 operates with an American style thumbturn on the interior and no key cylinder, which suits a patio or rear door that is locked from inside. If you need to key the door from outside, choose a keyed configuration instead.
5) Which levers can I use with the Emtek 1623 sandcast bronze plates?
Any Emtek Sandcast Bronze lever pairs with these plates, and ten styles are offered with the trim: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Lever choice is required at order time, so it is not an accessory you add later.
6) Do Emtek multi point levers sag over time?
Spring Assist is built into every Emtek multi point lock trim now, including the 1623. It returns the lever to the neutral horizontal position, which is what prevents the droop you see on older multi point handle sets.
7) What finishes does the Emtek 1623 arched multi point trim come in?
Three sandcast bronze finishes: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). All three are living bronze finishes, so if you are matching other openings in the house, order the same code rather than eyeballing it.
8) Is the Emtek 1623 trim rated for commercial openings?
It is a residential product. For a hotel, school or office entry you want commercial grade hardware rather than sandcast bronze patio door trim.
9) Is the Emtek 1623 plate solid bronze or plated?
Sandcast solid bronze, substrate and all, in the arched plate shape at 2 by 10 inches. Sandcast bronze carries visible casting texture, so no two plates look identical, which is the point of the look.
10) Is the Emtek 1623 an electronic or smart lock trim?
No electronics. The 1623 is purely mechanical trim, lever and thumbturn operated, with no keypad, motor or wiring involved.
