Emtek 1523 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20
Emtek Emtek 1523 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed American Style Thumbturn Inside EMTEK-1523

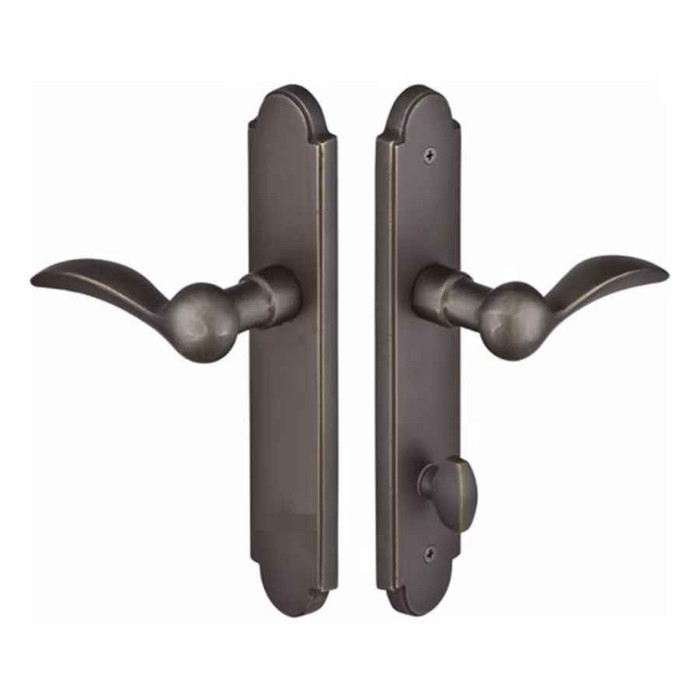

Emtek 1523 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1523-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #5
  • Plate Size: 2" x 10"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1523 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#5
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1523
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2" x 10"
Cylinder Classification:
Euro Profile
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1523-FB – Frequently Asked Questions

1) Does the Emtek 1523 multi point trim include the multi point lock itself?
No. The 1523 is trim only: plates and handles. The multi point mortise lock box is not included, so you need a working multi point lock already in the door or ordered separately. The set covers the exterior and interior plates plus the lever hardware.
2) What is Door Configuration #5 on Emtek multi point trim, and how do I know my door matches?
Configuration refers to where the cylinder and thumbturn sit relative to the handle. On the 1523, the cylinder position is below the handle and the cylinder is Euro profile, with a 3-5/8 inch center-to-center from handle spindle to cylinder. Measure that center-to-center on your existing lock and confirm the cylinder falls under the lever. If your lock has the cylinder above the handle or a different spacing, this trim will not line up.
3) Which patio door brands does this Emtek multi point trim reference for fit?
Emtek lists the 1523 trim against multi point systems from Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor and Weathershield. Matching the brand is only half of it, though: the lock also has to be a Configuration #5 layout with 3-5/8 inch center-to-center and a Euro profile cylinder below the handle.
4) Is the Emtek 1523 keyed, and what secures the door from inside?
The 1523 is the non-keyed version. There is no key cylinder supplied with it; the inside gets an American style thumbturn to throw and retract the multi point lock. Use it on a patio or garden door where you do not need outside key access. If you need to key the door from outside, you want the keyed version of the trim instead.
5) What do I have to specify when ordering the Emtek 1523 trim?
Three things beyond the finish. Lever style is required, with ten Sandcast Bronze options: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Handing is required, right hand or left hand. Door thickness is an optional text entry, so give it if your slab is anything other than standard. Finish comes in Flat Black Bronze, Medium Bronze or Tumbled White Bronze.
6) Will the levers on this Emtek trim sag over time?
Each Emtek multi point lock trim now ships with a spring assist that returns the lever to neutral, which is what prevents the sagging handle you get on older patio door trim. It is built into the trim, not a separate part to order.
7) Is the Emtek 1523 sandcast bronze trim suitable for a commercial entrance?
It is classified residential. The 1523 is swinging patio door hardware in Emtek's Sandcast Bronze collection, solid bronze plates and levers, aimed at homes and rustic style residential entries rather than high traffic commercial openings.
8) Can I match the Emtek 1523 trim finish to other bronze hardware in the house?
The trim is offered in three Sandcast Bronze finishes: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). All three are living finishes from Emtek's Sandcast Bronze collection, so they pair with other Sandcast Bronze levers and knobs in the same finish code across the rest of the doors.
9) Is this Emtek multi point trim electronic or does it work with a smart lock?
Purely mechanical. The 1523 has no electronic function, and no key cylinder either; operation is the lever plus an inside thumbturn driving the multi point lock.
