Emtek Emtek 1223 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed American Style Thumbturn Inside EMTEK-1223

Emtek 1223 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1223-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #2
  • Plate Size: 2" x 10"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim

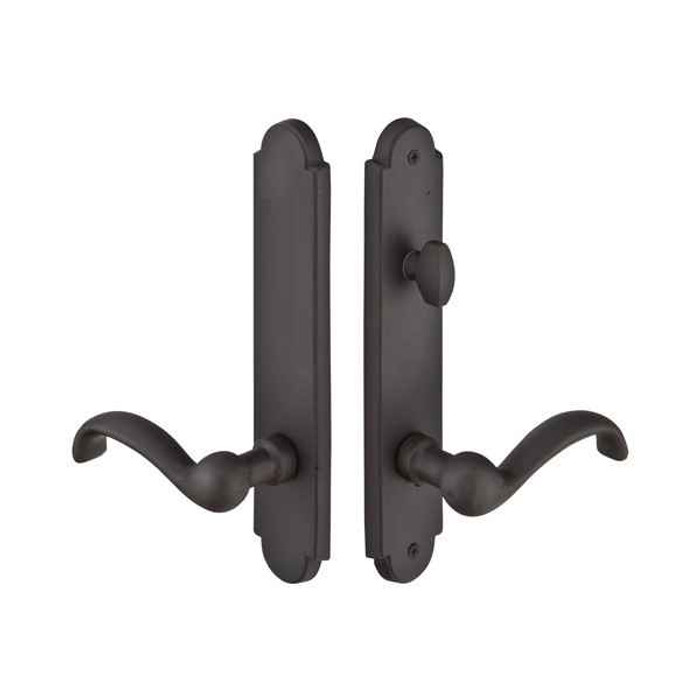

Emtek 1223 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1223
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1223-FB – Frequently Asked Questions

1) What center-to-center spacing does the Emtek 1223 trim need on the door?
It is built for 3-5/8 inch center-to-center between the handle and the cylinder hole, with the cylinder position above the handle. Measure the existing prep on your patio door before ordering; multi point trim only lines up if the CTC and cylinder position match.
2) Which patio door brands does this Emtek Config #2 trim reference?
Door Configuration #2 is referenced to BiltBest, G-U, Hurd (Energy Saver) and Andersen swinging patio doors. Config numbers are how Emtek maps trim to a door maker's prep pattern, so match the config to your door before anything else.
3) Is the Emtek 1223 keyed on the outside?
No. The 1223 is the non-keyed version: a thumbturn on the inside operates the lock, and there is no key cylinder. If you need to lock and unlock the patio door from outside with a key, choose a keyed Config #2 trim instead.
4) What do I have to specify when ordering the Emtek 1223 trim?
Three things beyond finish. Lever style, from ten Sandcast Bronze options: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Handing, right or left. And door thickness, which is a free text entry. Finish is Flat Black Bronze, Medium Bronze or Tumbled White Bronze.
5) Does handing matter on the Emtek 1223 multi point trim?
Yes, it does. Handing is a required selection, right hand or left hand, so determine the swing of the patio door before you order. A mis-handed trim will not operate correctly with the lock box.
6) Do the levers on this Emtek trim sag over time?
Each of these multi point trims now ships with Emtek's Spring Assist function, which returns the lever to neutral and keeps the handle from drooping. It is built into the trim, nothing extra to order.
7) How big are the plates on the Emtek 1223, and will they cover my old trim?
The plates are Arched style and measure 2 x 10 inches. That is a narrow plate, so it covers a standard patio stile prep but will not hide a wider previous escutcheon. Check the footprint of what is coming off the door.
8) Is the Emtek 1223 trim solid bronze, and is it rated for commercial use?
The plates and levers are Sandcast Bronze, part of Emtek's Sandcast Bronze collection, and the trim is classified as residential. For a high traffic commercial entrance, look at commercial grade hardware instead.
9) Can I mix a lever from another Emtek collection with these bronze plates?
The 1223 takes any Sandcast Bronze lever, so you can pair it with any of the ten bronze lever styles offered. Stay inside the Sandcast Bronze collection for the match, since the plates are sandcast bronze.
