Emtek Emtek 1481 Multi Point Lock Trim (Door Config #4) - Brass Plates, Concord Style (2" x 10.5"), Keyed with American Cylinder Hub ABOVE Handle EMTEK-1481

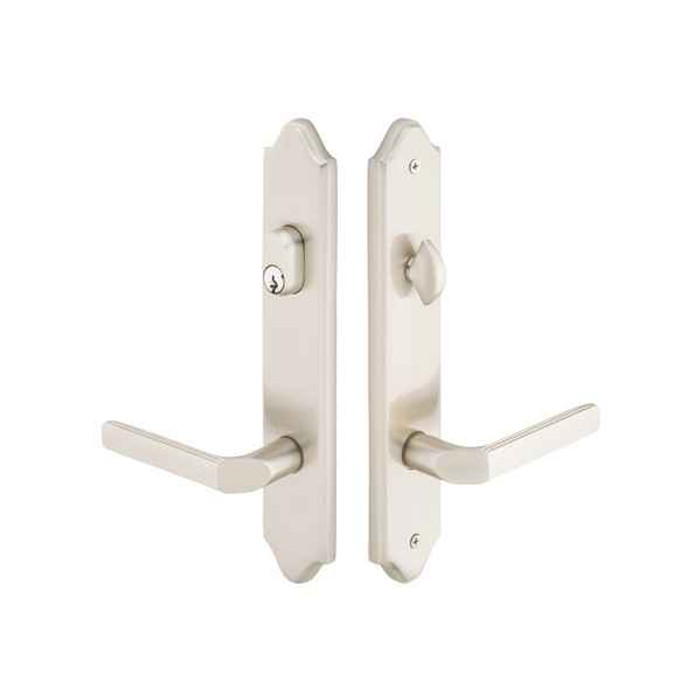

Emtek 1481 Multi Point Lock Trim (Door Config #4) - Brass Plates, Concord Style (2" x 10.5"), Keyed with American Cylinder Hub ABOVE Handle

(No reviews yet) Write a Review

Model: 1481-US15
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #4
  • Plate Size: 2" x 10.5"
  • Material: Brass
  • Plate Style: Concord
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Above Handle
  • Product Type: Multi Point Lock Trim



Emtek 1481 Multi Point Lock Trim (Door Config #4) - Brass Plates, Concord Style (2" x 10.5"), Keyed with American Cylinder Hub ABOVE Handle

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#4
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), Weathershield
Series:
Concord
Theme:
American Classic
MAP Policy:
Yes
Product Model:
1481
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
2" x 10-1/2"
Cylinder Classification:
American
Product Style:
Concord
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1481-US15 – Frequently Asked Questions

1) Does the Emtek 1481 multipoint trim include the multipoint lock body, or is it just the handles and plates?
Trim only. The 1481 set gives you the interior and exterior plates, the handles, and the keyed cylinder. The multipoint mortise lock box itself is not included, so you either reuse the gearbox already in the door or source it separately. That is the normal way this is bought: the door manufacturer's gearbox stays, and the visible hardware gets replaced.
2) Which patio door brands does the Emtek 1481 Config #4 multipoint trim fit?
Emtek references Config #4 trim against Ashland, G-U, Caradco, JELD-WEN, JELD-WEN Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), and Weathershield doors. The deciding detail is the configuration, not the brand name: Config #4 with the cylinder hub ABOVE the handle and 3-5/8 inch center-to-center between the cylinder and the spindle. Measure that spacing on your existing door before ordering, because a different Emtek configuration number covers a different hole pattern.
3) What is the center-to-center spacing on the Emtek Concord multipoint trim, and how do I check it against my door?
3-5/8 inches from the cylinder to the handle hub. On the door, that is the distance between the middle of the existing key cylinder hole and the middle of the spindle hole. Measure center to center, hole to hole. If your door measures something other than 3-5/8 inches, or the cylinder sits below the handle instead of above it, this is the wrong configuration and you need a different Emtek config number.
4) Do I have to specify handing when ordering the Emtek 1481 multipoint trim?
Handing is required, right hand or left hand, and it is not field reversible on this trim. Stand outside the door: if the hinges are on your right, it is right hand. Get it wrong on a swinging patio door and the lever and cylinder orientation will be upside down relative to the opening.
5) Can I key the Emtek 1481 patio door trim to match my existing Schlage or Kwikset house keys?
Yes, within the two keyways offered. The cylinder is an American-format single cylinder and comes in either a Schlage keyway (the standard choice) or a Weiser WR5 keyway, which is the same keyway family Kwikset residential locks use. You can order keyed alike across multiple sets, or key to an existing code by supplying the code at order time. Single cylinder means key outside, thumbturn or lever operation inside.
6) What do I have to pick when I order Emtek 1481 trim besides the finish?
Four choices are mandatory: lever style, handing, keying arrangement (keyed different or keyed alike), and the cylinder keyway. Lever style is a separate selection from the plate, so the Concord plate can be paired with any of the brass levers, from the L-Square, T-Bar and R-Bar geometric families through the Athena, Poseidon, Luzern and Stuttgart shapes to the traditional Rope, Ribbon and Reed, Rustic and Santa Fe designs. Door thickness is an optional entry, worth filling in so the cylinder length matches the door.
7) Will the Emtek Concord plate cover the marks left by my old patio door hardware?
The Concord plate measures 2 by 10-1/2 inches, which is a fairly narrow escutcheon. If the hardware you are pulling off is wider than 2 inches, the paint line or weathered edge outside that footprint will show. Height is rarely the problem at 10-1/2 inches; width usually is. Measure the existing plate before you commit.
8) What finishes does the Emtek Concord multipoint trim come in?
Eight, and every one of them is available with either keyway: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), and French Antique (US7). Two are worth flagging for an exterior patio door. Unlacquered brass has no clear coat and will patina with weather and handling, which is the point of it. Polished Brass Lifetime is the finish to pick if you want brass that stays bright.
9) Why should I enter door thickness when ordering multipoint lock trim?
Because the cylinder has to be the right length for the door it lives in. Door thickness is an optional text entry on the 1481 order, and giving it means the American cylinder is supplied to suit your slab. Skip it and you can end up with a cylinder that either sits proud of the plate or does not reach the cam in the gearbox. Measure the door edge and put the number in.
10) Is the Emtek 1481 an electronic or smart lock?
No, it is mechanical. The 1481 is a keyed trim set with a single American cylinder, no motor, no keypad, no battery. If you want the multipoint hardware to be motorized or app controlled, this is the wrong part and you should be looking at an electrified multipoint handleset instead.
