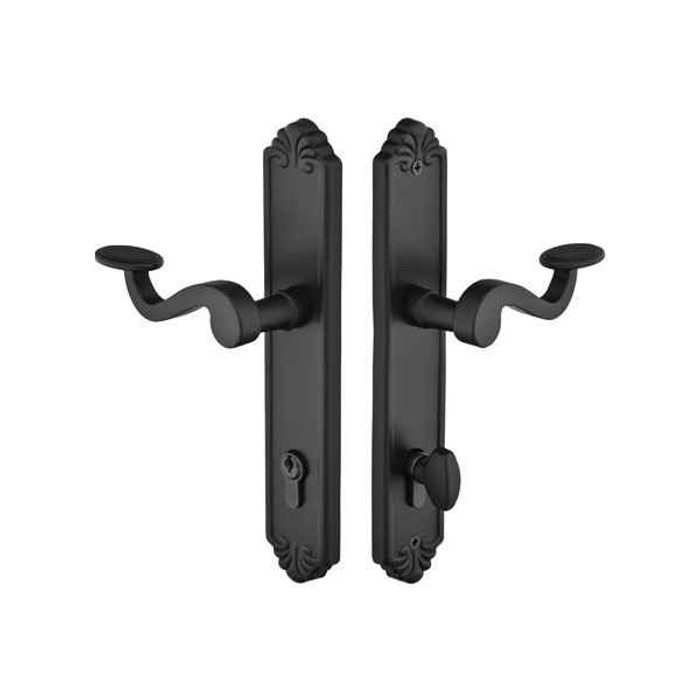

Emtek Emtek 1541 Multi Point Lock Trim (Door Config #5) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Keyed with Euro Cylinder Hub BELOW Handle EMTEK-1541

Emtek 1541 Multi Point Lock Trim (Door Config #5) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Keyed with Euro Cylinder Hub BELOW Handle

(No reviews yet) Write a Review

Model: 1541-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #5
  • Plate Size: 2" x 10.5"
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: Euro Profile Cylinder
  • Cylinder Position: Below Handle
  • Product Type: Multi Point Lock Trim



Emtek 1541 Multi Point Lock Trim (Door Config #5) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Keyed with Euro Cylinder Hub BELOW Handle

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Below Handle
Door Configuration:
#5
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1541
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with Euro Cylinder
Product Size:
2" x 10-1/2"
Cylinder Classification:
Euro Profile
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1541-MB – Frequently Asked Questions

1) Does the Emtek 1541 multi point trim include the multi point lock body, or just the handles and plates?
Trim only. The 1541 set gives you the escutcheon plates, the handles, and the euro profile cylinder. The multi point mortise lock box is not part of it, so if the door does not already have a working multi point lock in the stile, you have to source that separately. Anyone replacing worn or dated hardware on an existing patio door is the buyer this set is built for.
2) What is Door Configuration #5 on Emtek multi point trim, and how do I know my door uses it?
Configuration #5 is the layout where the euro cylinder hub sits BELOW the handle. Emtek multi point trims are sorted by where the cylinder and any thumbturn fall relative to the lever, because the plate has to be drilled to match the holes already in your door. The 1541 plate carries a 3-5/8 inch center-to-center between the handle hub and the cylinder hub. Measure that distance on your existing trim and check which side of the lever the key goes in; if the key is above the lever, or the spacing is not 3-5/8, you need a different configuration.
3) Is handing required when ordering Emtek multi point lock trim?
Handing matters here, and it has to be specified: right hand or left hand. Stand outside the door, on the side the key goes in. If the hinges are on your right, it is right hand. Get this wrong and the lever pitches the wrong way and the cylinder cam orientation fights the lock. Door thickness is asked for as well, so measure the slab before you order.
4) Will a 2 x 10-1/2 inch multi point plate cover the marks left by my old patio door hardware?
The 1541 Tuscany plate measures 2 inches by 10-1/2 inches. That is a narrow, tall escutcheon sized for a patio door stile, so it covers a strip of the door rather than a wide footprint. If your previous trim was wider than 2 inches, the paint or finish outline will show on either side. Height is rarely the problem; width is.
5) Do I have to order the levers separately with the Emtek 1541 trim, and which ones work?
Levers are part of the order, not an extra purchase, but you do have to pick a style: Medici, Napoli, Octagon, or Padua. All four are lost wax cast bronze so they match the plate. Any Tuscany bronze lever in the Emtek line will pair with these plates, which is what lets you carry one lever design across the patio door and the rest of the openings in the house.
6) Is the Emtek 1541 keyed on both sides or just outside?
Single cylinder. One euro profile cylinder is keyed from the exterior, and the inside operates without a key. That is the normal choice for a swinging patio door, and it is what code-conscious buyers want on an egress opening since nobody needs a key to get out. If you require a key on both faces, this configuration will not do it.
7) Can I key the Emtek 1541 euro cylinder to match the rest of my locks?
The cylinder that comes with the 1541 is a euro profile, which is a different format from the round mortise or KIK cylinders on most American residential locks. A locksmith can key euro profile cylinders alike to each other, but matching them to a standard US cylinder keyway is not something the format does on its own. If keying the patio door into an existing house key is the goal, bring the euro cylinder to your locksmith before you commit to a plan.
8) What finishes does the Emtek 1541 Tuscany bronze trim come in?
Two: Flat Black Bronze (FB) and Medium Bronze (MB). Both are lost wax cast bronze, a living finish that will darken and wear at the touch points over time rather than stay uniform. If you are matching other Emtek Tuscany bronze hardware in the same house, stay within the same finish code, since bronze cast pieces vary by design.
9) Do these Emtek levers sag over time like older patio door handles?
Each 1541 trim now ships with a spring assist in the plate, which returns the lever to horizontal and keeps it from drooping. Sagging handles are the standard failure on older multi point patio trim, where the lever gradually loses its return and starts fouling the lock. If you are replacing a set that has drooped, that is the fix.
10) Is the Emtek 1541 an electronic or smart lock trim?
Purely mechanical. The 1541 is key and lever operated with a euro cylinder, with no keypad, no motor, and no wiring to run. Nothing about the trim needs power, and there is no electrified version of this configuration.
