Emtek 1641 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

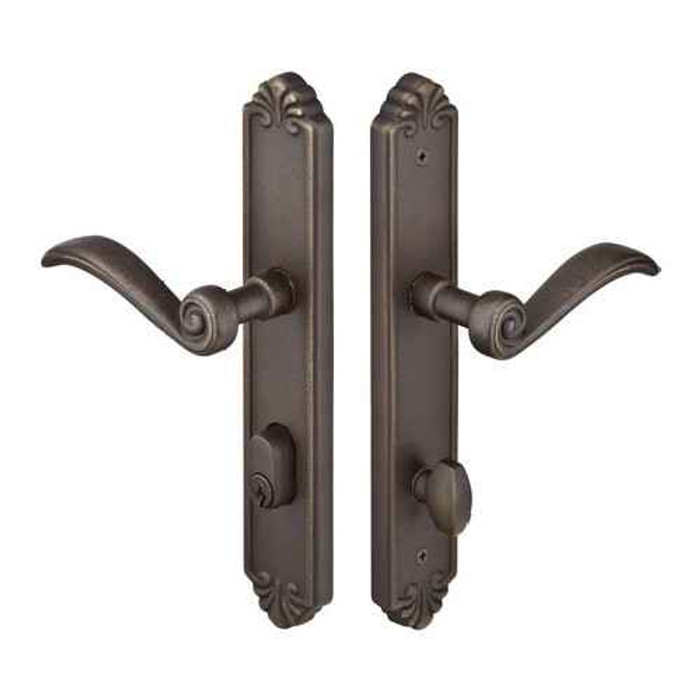

Emtek Emtek 1641 Multi Point Lock Trim (Door Config #6) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Keyed with American Cylinder Hub BELOW Handle EMTEK-1641

Emtek 1641 Multi Point Lock Trim (Door Config #6) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Keyed with American Cylinder Hub BELOW Handle

(No reviews yet) Write a Review

Model: 1641-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #6
  • Plate Size: 2" x 10.5"
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Below Handle
  • Product Type: Multi Point Lock Trim



Emtek 1641 Multi Point Lock Trim (Door Config #6) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Keyed with American Cylinder Hub BELOW Handle

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1641
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
2" x 10-1/2"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1641-MB – Frequently Asked Questions

1) Does the Emtek 1641 multi point trim include the multi point lock body, or do I need to buy that separately?
Trim only. The Emtek 1641 set includes the plates, the handles, and the cylinder. The multi point mortise lock box is not included, so you need the existing lock body in the door or a separate one. That makes this the right part when the lock mechanism is fine and you are replacing or upgrading the visible hardware on a swinging patio door.
2) What does Door Configuration #6 mean on Emtek multi point trim, and how do I know my patio door takes it?
Emtek codes multi point trims by configuration so the plate holes line up with the door's existing prep. The 1641 is Configuration #6 with the American cylinder hub BELOW the handle and a 3-5/8 inch center-to-center between the handle hub and the cylinder hub. Measure hub center to cylinder center on your door, confirm the cylinder sits below the lever, and match that 3-5/8 inch dimension. If your cylinder sits above the handle, or the spacing is different, you need a different configuration number.
3) Will the Emtek 1641 trim work on a Milgard or Pella swinging patio door?
Milgard and Pella are the reference door manufacturers for this trim. It is built for swinging patio doors running a multi point mortise lock, with the American cylinder hub below the lever at 3-5/8 inch center-to-center. Confirm your door's hub spacing and cylinder position match before ordering, since both makers use more than one multi point prep.
4) What keyways can I get the Emtek 1641 cylinder in, and can it be keyed to my existing house key?
Two keyways are offered: Schlage (standard) and Weiser WR5. Keying is a free option at order time, either keyed different or keyed alike across multiple sets, and there is a field to enter a key code if you want it cut to an existing code. Pick the keyway that matches your other locks, give the code, and the key you already carry will run this door too. It is a single cylinder function, so one cylinder on the exterior side.
5) What do I have to specify when ordering the Emtek 1641 besides finish?
Four required choices beyond finish and keyway: lever style (Medici, Napoli, Octagon or Padua), handing (right hand or left hand), keying option (keyed different or keyed alike), and the keying-to-code entry. There is also an optional door thickness field. Get handing wrong and the lever points the wrong way on your door, so stand outside and note which side the hinges are on before you order.
6) What finishes does the Emtek 1641 Tuscany bronze trim come in?
Two lost wax cast bronze finishes: Flat Black Bronze (FB) and Medium Bronze (MB). Both are available with either the Schlage or the Weiser WR5 keyway. These are living bronze finishes from the Tuscany Bronze collection, so they will patina over time on an exterior patio door and will match other Tuscany Bronze pieces on the same elevation.
7) Can I use a different Emtek lever on the 1641 multi point trim than the four shown?
Yes. The 1641 plates accept any Emtek Lost Wax Cast Bronze lever, meaning any Tuscany Bronze lever in the line. The four offered at order time are Medici, Napoli, Octagon and Padua. If you want a bronze lever outside those four to match interior doors, it is the same casting family and will mount.
8) My patio door lever sags. Does the Emtek 1641 fix that?
It addresses it directly. Every Emtek multi point lock trim now ships with a spring assist that returns the lever to neutral and stops the handle drooping, which is the usual complaint on tall patio door trims where the lever carries its own weight. If your current trim sags, swapping to this trim solves it without touching the multi point lock body.
9) How big is the Emtek 1641 escutcheon plate, and will it cover my old trim's holes?
The Tuscany plate measures 2 by 10-1/2 inches. That is a narrow, tall plate, so it covers a vertical run of prep but only 2 inches of width. If the trim you are removing was wider, its screw holes or thumbturn cutout may sit outside the 2 inch width and show. Lay a 2 by 10-1/2 inch outline over your existing prep before you commit.
10) Is the Emtek 1641 suitable for a commercial entrance or an apartment building exterior door?
It is classified residential hardware, for swinging patio doors on homes. A mechanical, non-electronic keyed entry trim with a single American cylinder. For a commercial storefront or a code-regulated egress opening you want a commercial-grade lockset or exit device instead, not a residential patio door multi point trim.
11) Can I use a standard Schlage or Kwikset cylinder in the Emtek 1641?
The 1641 takes an American cylinder, which is the standard mortise-style cylinder used on this trim, and one is included in the set. Order it in the Schlage keyway or the Weiser WR5 keyway depending on which key family the rest of your doors use. Because the hub position is fixed below the lever, do not substitute a Euro profile cylinder here.
