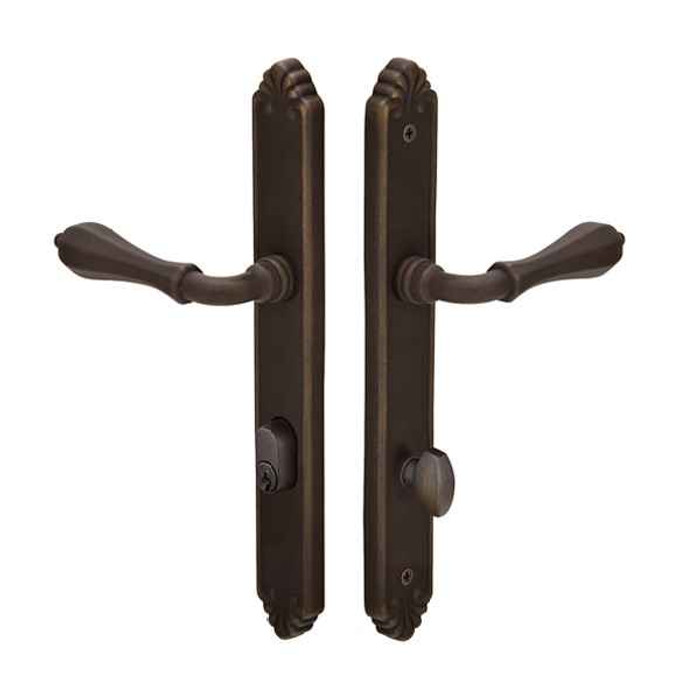

Emtek Emtek 1631 Multi Point Lock Trim (Door Config #6) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Keyed with American Cylinder Hub BELOW Handle EMTEK-1631

Emtek 1631 Multi Point Lock Trim (Door Config #6) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Keyed with American Cylinder Hub BELOW Handle

(No reviews yet) Write a Review

Model: 1631-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Handing is
Selected Lever Style is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #6
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Below Handle
  • Product Type: Multi Point Lock Trim



Emtek 1631 Multi Point Lock Trim (Door Config #6) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Keyed with American Cylinder Hub BELOW Handle

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1631
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
1-1/2" x 11-1/8"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1631-MB – Frequently Asked Questions

1) Does the Emtek 1631 multi point trim include the multi point lock mechanism?
No. The Emtek 1631 is trim only: plates, handles, and cylinder. The multi point mortise lock box has to be sourced separately, normally matched to the door manufacturer's existing gearbox. If your door already has a working multi point lock and you only want new hardware on the face, this is the right part.
2) What is Door Configuration #6 on Emtek multi point trim and how do I know my door matches?
Configuration #6 refers to the hole pattern in the door for the trim: on the 1631 the cylinder hub sits BELOW the lever. Emtek configurations are keyed to the prep the door manufacturer drilled, so the check is simple, look at your existing plate: if the keyed cylinder is under the handle and the spacing from cylinder center to handle center is 3-5/8 inches, the 1631 lines up. If your key sits above the lever, you need a different configuration.
3) Will this Emtek Tuscany trim fit a Milgard or Pella swinging patio door?
Milgard and Pella are the reference door manufacturers for this trim, and the deciding factor is the door's existing prep. The 1631 is built for a Configuration #6 prep with 3-5/8 inch center-to-center between the cylinder and the lever, cylinder below. Measure that on the door before ordering rather than going by brand alone, since both makers used more than one prep.
4) What do I have to specify when ordering the Emtek 1631 trim set?
Five things. Handing (right or left), lever style from Medici, Napoli, Octagon, or Padua, finish in Flat Black Bronze or Medium Bronze, keyway (Schlage standard or Weiser WR5), and your keying preference (keyed different or keyed alike, with an optional key code). Door thickness can also be supplied so the cylinder tailpiece length is right.
5) Can I key this Emtek patio door trim to match the Schlage locks on the rest of my house?
Yes. The 1631 takes an American cylinder and is offered with a Schlage keyway as standard, so it can be keyed alike with Schlage-keyed hardware, or keyed to an existing code. A Weiser WR5 keyway version is available if the rest of the house is Weiser or Kwikset-family. It is a single cylinder function, key outside, thumbturn or lever operation inside.
6) Is handing important on the Emtek 1631, or can it be flipped in the field?
Handing must be specified. Right hand and left hand are separate builds on this trim, so determine the swing from the outside of the door before ordering. Ordering the wrong hand means the lever and cylinder orientation will not work on your opening.
7) How big are the Emtek Tuscany plates, and will they cover my old hardware's marks?
The Tuscany plates measure 1-1/2 by 11-1/8 inches. That is a narrow escutcheon, sized for patio door stiles, so it will not hide wide scarring left by a larger plate. Hold a tape to the existing plate first if you are replacing a different style.
8) Can I use other Emtek levers with this multi point trim, or only the ones listed?
Any Emtek lost wax cast bronze lever from the Tuscany Bronze range works with this trim. The four offered on the set are Medici, Napoli, Octagon, and Padua, so you can match levers already used on interior doors in the same collection.
9) What are the Emtek Tuscany plates made of and which finishes are offered?
Lost wax cast bronze, part of the Tuscany Bronze collection, in Flat Black Bronze (FB) and Medium Bronze (MB). Solid cast bronze is a living finish material, so it develops patina with handling and weather exposure rather than staying uniform.
10) Do Emtek multi point handles sag over time?
The 1631 trim includes a spring assist that returns the lever to neutral, which is what Emtek added specifically to stop handles drooping on multi point patio doors. It is built into the trim, no separate part to order.
11) Is the Emtek 1631 suitable for a commercial entrance or an apartment building corridor door?
It is classified residential hardware, intended for swinging patio doors. For multi-family use it is fine on unit patio doors, but for a commercial entrance subject to code and high traffic you want a Grade 1 commercial lockset rather than residential multi point patio trim.
12) Is the Emtek 1631 an electronic or keypad lock?
No, it is purely mechanical key-operated trim. Single cylinder function, keyed with an American cylinder, no electronics or battery.
