Emtek 15A1 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$374.00
$299.20

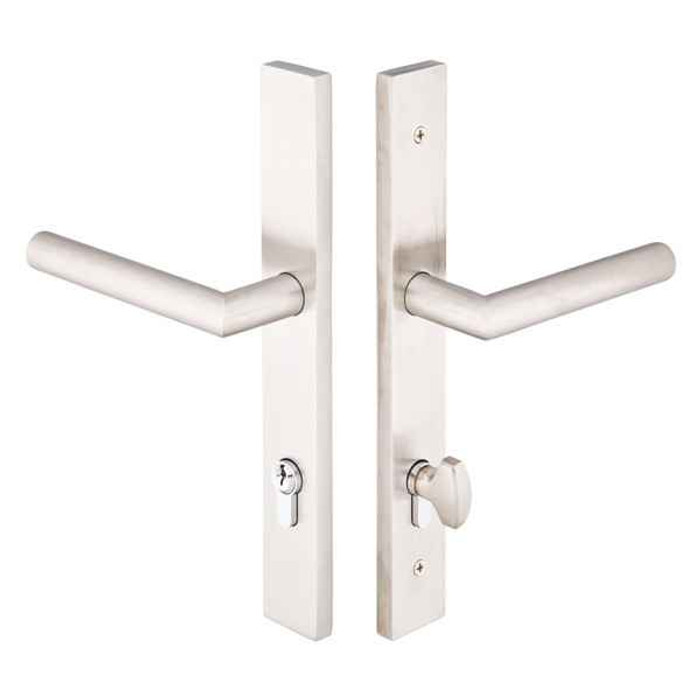

Emtek Emtek 15A1 Multi Point Lock Trim (Door Config #5) - Stainless Steel Plates, Modern Style (1.5" x 11"), Keyed with Euro Cylinder Hub BELOW Handle EMTEK-15A1-SS

Emtek 15A1 Multi Point Lock Trim (Door Config #5) - Stainless Steel Plates, Modern Style (1.5" x 11"), Keyed with Euro Cylinder Hub BELOW Handle

(No reviews yet) Write a Review

Model: 15A1-SS
From the Stainless Steel Collection
$374.00
$299.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$374.00
$299.20
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 15A1 Multi Point Lock Trim (Door Config #5) - Stainless Steel Plates, Modern Style (1.5" x 11"), Keyed with Euro Cylinder Hub BELOW Handle

Features:

  • Your choice of lever included
  • Crafted from high quality forged brass for lasting durability
  • Premium finishes maintain their appearance over time
  • Includes all necessary mounting hardware
  • Covered by Emtek's limited lifetime warranty
  • Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys



Specifications:

  • Door Thickness: 1-3/4", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/4", 2-3/8", 2-5/8"
  • Cylinder Hub Location: Below Handle Euro Cylinder
  • Center to Center: 3-5/8"
  • Mounting Holes Center to Center: 8-1/2"
  • Cylinder to Mount: 1-13/16"
  • Manufacturer Door Configuration: 5
  • Trim Height: 11"
  • Trim Width: 1-1/2"



Manufacturer Resources:

Installation Guide

Specification Sheet

Emtek Multi Point Pocket Booket

LookBook Designer Showcase

Manufacturer Resources

Emtek LookBook

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Stainless Steel
Cylinder Position:
Below Handle
Door Configuration:
#5
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Series:
Modern
Theme:
Contemporary
MAP Policy:
Yes
Product Model:
15A1
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with Euro Cylinder
Product Size:
1-1/2" x 11"
Cylinder Classification:
Euro Profile
Product Style:
Modern
Product Material:
Stainless Steel
Product Category:
Mechanical Locks
Product Substrate:
Stainless Steel
Department:
Door Hardware

Emtek 15A1-SS – Frequently Asked Questions

1) Will the Emtek 15A1 multi point trim fit my Therma-Tru or Hoppe multipoint door?
The 15A1 trim is built for Door Configuration #5 gearboxes, and Emtek references it against doors from Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor and Weathershield. The way to confirm it on your slab is the hole pattern, not the door brand: config #5 means the euro cylinder sits below the handle, spindle to cylinder center-to-center is 3-5/8 inches, the two mounting screw holes are 8-1/2 inches apart, and cylinder to mount is 1-13/16 inches. Measure those three on the existing trim. If they match, the plates land on the existing prep.
2) Does the Emtek 15A1 come with the multipoint lock itself or is it just the handles and plates?
Trim only. The 15A1 is the handle set: two 1-1/2 by 11 inch stainless steel plates, your chosen lever on each side, the euro cylinder, and the mounting hardware. The multipoint gearbox, rods and strikes stay in the door. That is why it is sold by door configuration, config #5 here, rather than by lock model: you are matching new trim to a gearbox that is already installed.
3) What is a Door Config #5 multipoint trim and how do I know that is what I have?
Configuration numbers describe where the cylinder and spindle sit relative to each other on the plate. Config #5 puts a euro profile cylinder below the lever, with 3-5/8 inches between the cylinder center and the spindle center. If your existing plate has the keyhole above the handle, or a different spacing, it is a different configuration and this trim will not line up. Pull the interior plate and measure spindle to cylinder before ordering.
4) What do I have to specify when ordering the Emtek 15A1 trim?
Five things. Lever style, from Athena, Cologne, Dresden, Helios, Hercules, Hermes, Kiel, Poseidon or Stuttgart. Handing, right or left. Keying, either keyed different or keyed alike across your order, with an optional key code if you are matching an existing system. And your door thickness, since the euro cylinder and spindle are sized to the slab. Finish is brushed stainless steel.
5) What door thickness does the Emtek 15A1 multipoint handle set cover?
Thick doors are handled. Emtek lists the 15A1 for 1-5/8, 1-3/4, 1-7/8, 2, 2-1/8, 2-1/4, 2-3/8, 2-1/2, 2-5/8 and 2-3/4 inch doors. That range is why thickness is asked for on the order: the euro cylinder length and spindle are cut to your slab, so a 2-1/4 inch entry door gets different hardware inside the same plates than a 1-3/4 inch one.
6) Is the Emtek 15A1 keyed on both sides or key outside and thumbturn inside?
Single cylinder. Key on the exterior, no key required from inside, which is what most residential entry doors want and what lets someone exit without hunting for a key. The cylinder is euro profile, so if you are rekeying a house to one key, order the set keyed alike or supply your key code and Emtek cuts to it.
7) Can I key several Emtek 15A1 entry doors to the same key?
Yes, keyed alike is one of the ordering choices, and you can also give a key code to match an existing euro cylinder system. On keys: two ship per lock, and an order of three or more keyed alike ships six keys total. Worth knowing before you spec a whole building of doors and expect a key per unit.
8) Will an 11 inch multipoint trim plate fit a narrow glass panel door stile?
The plates run 11 inches tall by 1-1/2 inches wide, with the two mounting holes 8-1/2 inches apart along that length. On a glass panel or French door you need a flat stile face at least 1-1/2 inches wide and 11 inches of clear run, and the euro cylinder sits 1-13/16 inches off the mount line below the lever. Narrower stiles than that will overhang the glass stop.
9) Does handing matter on the Emtek 15A1 multipoint trim?
It does, and it is a required choice at order. Because the cylinder sits below the lever rather than centered, the plate is not symmetrical top to bottom in use, and the lever throw has to swing with the door. Stand outside the door: if the hinges are on your right it is right hand, hinges on your left it is left hand.
10) Is the Emtek 15A1 handle set stainless steel all the way through or plated?
Both plates are stainless steel, substrate and all, in a brushed stainless finish, part of Emtek's Stainless Steel collection. The lever you pair with it is forged brass. For a coastal or high-traffic entry that pairing matters, the stainless plates carry the weather-facing surface area.
11) Is the Emtek 15A1 an electronic or keypad multipoint handle?
Purely mechanical. The 15A1 is key and lever, no keypad, no wiring, no batteries. If you need code or app access on a multipoint door, this is not the trim to specify. It is also catalogued by Emtek as residential hardware, so for a commercial opening with grade or code requirements you want a commercial-rated set instead.
