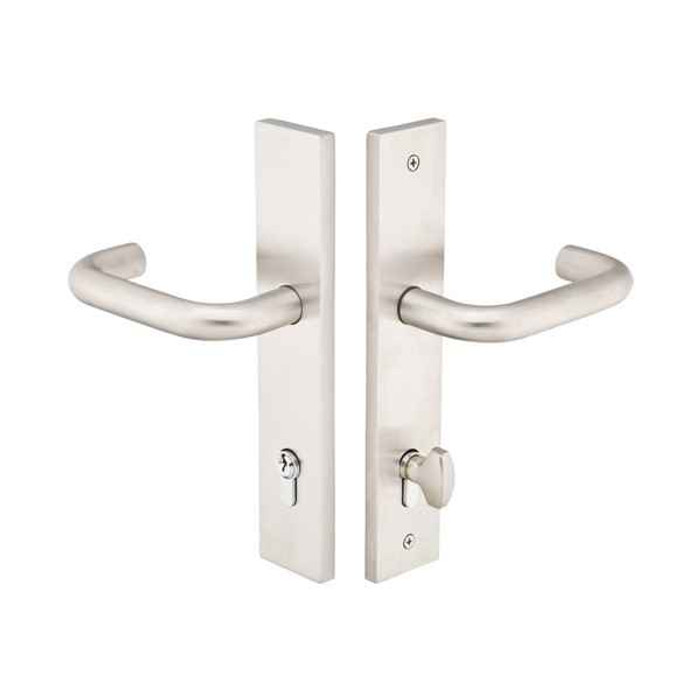

Emtek Emtek 15B1 Multi Point Lock Trim (Door Config #5) - Stainless Steel Plates, Modern Style (2" x 10"), Keyed with Euro Cylinder Hub BELOW Handle EMTEK-15B1-SS

Emtek 15B1 Multi Point Lock Trim (Door Config #5) - Stainless Steel Plates, Modern Style (2" x 10"), Keyed with Euro Cylinder Hub BELOW Handle

(No reviews yet) Write a Review

Model: 15B1-SS
From the Stainless Steel Collection
$374.00
$299.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$374.00
$299.20
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #5
  • Plate Size: 2" x 10"
  • Material: Stainless Steel
  • Plate Style: Modern
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: Euro Profile Cylinder
  • Cylinder Position: Below Handle
  • Product Type: Multi Point Lock Trim



Emtek 15B1 Multi Point Lock Trim (Door Config #5) - Stainless Steel Plates, Modern Style (2" x 10"), Keyed with Euro Cylinder Hub BELOW Handle

  • Can be ordered with any Stainless Steel Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Stainless Steel
Cylinder Position:
Below Handle
Door Configuration:
#5
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Series:
Modern
Theme:
Contemporary
MAP Policy:
Yes
Product Model:
15B1
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with Euro Cylinder
Product Size:
2" x 10"
Cylinder Classification:
Euro Profile
Product Style:
Modern
Product Material:
Stainless Steel
Product Category:
Mechanical Locks
Product Substrate:
Stainless Steel
Department:
Door Hardware

Emtek 15B1-SS – Frequently Asked Questions

1) Does the Emtek 15B1 multi point trim include the multi point mortise lock body?
No. The 15B1 is trim only: plates, handles, and the euro profile cylinder. The multi point mortise lock box stays out of the box, so you either reuse the gear already in the door or order the lock body separately.
2) What does Door Configuration #5 mean on Emtek multi point trim, and how do I know my patio door takes it?
Configuration #5 describes where the cylinder and handle hubs sit relative to each other on the plate. On the 15B1 the euro cylinder hub is below the handle, with 3-5/8 inch center-to-center between hub and cylinder. Measure your existing plate from the handle spindle hole to the center of the cylinder hole: if that measures 3-5/8 inches with the cylinder underneath, it matches config #5. A different spacing or a cylinder above the handle needs a different configuration.
3) Will Emtek 15B1 trim fit a Therma-Tru or Kolbe swinging patio door multi point lock?
Those are among the door makers Emtek references for this multi point trim, along with Crestline, Hoppe, Hurd, KFV, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Vetter, Willmar, Windsor and Weathershield. The deciding detail is still the gearing in your door: it has to be a config #5 layout with the cylinder below the handle at 3-5/8 inch center-to-center.
4) What do I have to specify when ordering the Emtek 15B1 stainless multi point trim?
Three things. Lever style, from nine stainless options: Athena, Cologne, Dresden, Helios, Hercules, Hermes, Kiel, Poseidon or Stuttgart. Handing, right or left. And your door thickness, which is an optional entry but worth giving so the spindle and cylinder length suit the door. Finish comes one way, Brushed Stainless Steel.
5) Is handing important on a multi point lock trim set like this?
Yes, you have to order it right or left hand. Lever trim is handed because the lever has to point toward the lock edge and the plate orientation follows the swing. Stand outside the door: if the hinges are on your right it is right hand. Getting it wrong means an upside-down lever, not just a cosmetic mismatch.
6) Is this a single cylinder or double cylinder multi point handle set?
Single cylinder. The 15B1 is keyed on the exterior side with one euro profile cylinder; the interior side operates by lever without a key. If you need key control from inside as well, a single cylinder set is not what you want.
7) How big are the plates on the Emtek Modern multi point trim, and will they cover my old escutcheons?
The Modern style plates measure 2 x 10 inches. That is a narrow rectangular plate, so it will cover a prior plate only if the old one was the same size or smaller and the hole pattern lines up at 3-5/8 inch center-to-center. A larger or ornate plate being replaced will likely leave witness marks or exposed screw holes.
8) Is Emtek 15B1 trim suitable for a commercial entrance or apartment building door?
It is classified residential. The 15B1 is swinging patio door hardware in stainless steel, aimed at homes and residential units. For a commercial opening with traffic and code requirements, this is not the right category of hardware.
9) Will these levers sag over time like my old patio door handles?
Spring Assist is built into the trim, which returns the lever to the neutral horizontal position and is there specifically to stop the droop that older handle sets develop. That is a common reason for replacing multi point trim on swinging patio doors in the first place.
10) Is this stainless steel trim plated or solid, and will it hold up in a coastal or poolside installation?
Both the material and the substrate are stainless steel, so the plates and levers are stainless through, not a plated finish over brass or zinc. The finish is Brushed Stainless Steel. That is the construction people choose for salt air and high humidity exposure on exterior patio doors.
11) Can I mix a different lever design with the stainless plates on this Emtek multi point set?
Any Emtek stainless steel lever can be ordered with the 15B1 plates, and nine are offered here: Athena, Cologne, Dresden, Helios, Hercules, Hermes, Kiel, Poseidon and Stuttgart. All of them land in the same Modern, contemporary look as the 2 x 10 inch stainless plate.
12) Is the Emtek 15B1 a keypad or electronic multi point handle set?
No, it is fully mechanical. Entry is by key through the euro profile cylinder on the outside and by lever inside. There is no keypad, motor, or wiring to run.
