Emtek 15B1 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$381.00
$304.80

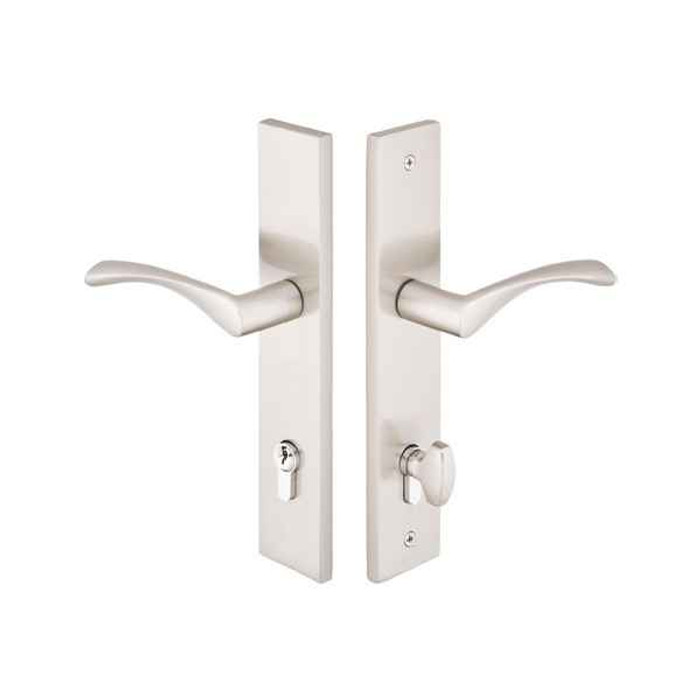

Emtek Emtek 15B1 Multi Point Lock Trim (Door Config #5) - Brass Plates, Modern Style (2" x 10"), Keyed with Euro Cylinder Hub BELOW Handle EMTEK-15B1

Emtek 15B1 Multi Point Lock Trim (Door Config #5) - Brass Plates, Modern Style (2" x 10"), Keyed with Euro Cylinder Hub BELOW Handle

(No reviews yet) Write a Review

Model: 15B1-US19
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #5
  • Plate Size: 2" x 10"
  • Material: Brass
  • Plate Style: Modern
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: Euro Profile Cylinder
  • Cylinder Position: Below Handle
  • Product Type: Multi Point Lock Trim



Emtek 15B1 Multi Point Lock Trim (Door Config #5) - Brass Plates, Modern Style (2" x 10"), Keyed with Euro Cylinder Hub BELOW Handle

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Below Handle
Door Configuration:
#5
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Series:
Modern
Theme:
Contemporary
MAP Policy:
Yes
Product Model:
15B1
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with Euro Cylinder
Product Size:
2" x 10"
Cylinder Classification:
Euro Profile
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 15B1-US19 – Frequently Asked Questions

1) Does the Emtek 15B1 multi point trim include the multi point lock body, or do I need to order that separately?
Trim only. The 15B1 set gives you the plates, the handles, and the euro profile cylinder. The multi point mortise lock box itself is not included, so if you are replacing a full system you still need the lock body that matches your door. A lever style also has to be picked, since the levers are ordered with the trim rather than supplied by default.
2) How do I know if Door Configuration #5 is the right Emtek multi point trim for my patio door?
Configuration #5 means the euro cylinder hub sits BELOW the handle, with a 3-5/8 inch center-to-center between the handle spindle and the cylinder. Pull your existing plate off, or measure the door edge prep, and check both things: cylinder under the lever, and 3-5/8 inches between the two holes. If your cylinder sits above the lever, or the spacing measures anything else, this is the wrong configuration and you want a different Emtek trim config.
3) Will Emtek 15B1 trim fit a Therma-Tru or Hoppe multi point door?
Those are both on the reference list Emtek gives for this trim, along with Crestline, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Vetter, Willmar, Windsor and Weathershield. The brand is the starting point, not the whole answer: the door still has to be a Config #5 prep, meaning cylinder below the lever at 3-5/8 inch center-to-center. Confirm that spacing on the door before you order.
4) What do I have to specify when ordering Emtek 15B1 multi point trim?
Four things are required on the order and one is optional. Required: lever style (51 choices, from the L-Square, T-Bar and R-Bar modern bars through Athena, Luzern, Milano, Rope, Rustic and others), handing (right or left hand), finish, and the keying option, keyed different or keyed alike. Optional: door thickness, and a key code if you are matching an existing system. Handing is not something to guess on a multi point door, so check the swing before you commit.
5) Is the Emtek 15B1 single cylinder or double cylinder, and what does that mean for the inside of the door?
Single cylinder. The euro profile cylinder is keyed from the outside only, with a thumbturn side indoors, so nobody needs a key to get out. That is the normal setup for a swinging patio door in a house. If your local code or your own preference calls for key access from both sides, this is not the trim to order.
6) Can I key the Emtek euro cylinder to match the other locks in my house?
Yes, within the set. Keyed alike is offered at no extra charge, so multiple 15B1 doors can run on one key, and there is a key code field if you are matching an existing Emtek system. What it will not do is match a standard US pin cylinder deadbolt on a different brand, because this is a euro profile cylinder, a different cylinder format entirely.
7) Will an Emtek 15B1 plate cover the marks left by the trim I am taking off?
The plate measures 2 x 10 inches in a flat modern profile. Anything the old escutcheon covered outside that footprint, screw holes, paint shadow, weathering on the door skin, will show. On a wider or longer outgoing plate, plan on touching up the door face or moving to a larger Emtek plate style.
8) Is the Emtek 15B1 multi point trim rated for a commercial entrance?
It is residential hardware, made for swinging patio doors in homes. For a commercial entry taking daily public traffic, look at a Grade 1 or Grade 2 commercial lockset rather than residential patio door trim. On a multi-family building the same logic applies to lobby and common doors; unit patio doors are fair game.
9) Do the levers on this Emtek trim sag over time like older multi point handles?
No. Every Emtek multi point lock trim now ships with a spring assist that returns the lever to neutral, which is what stops the droop people saw on older patio door handles. If you are replacing a sagging set on an existing door, that is the mechanical difference between the new trim and what you are pulling off.
10) What finishes does the Emtek 15B1 brass multi point trim come in?
Seven, all on solid brass plates: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL) and Satin Brass (US4). Unlacquered brass is the one to think twice about on an exterior patio door, since it is meant to patina rather than hold its shine. The rest are stable finishes.
11) Can I mix and match lever styles with the Emtek 15B1 brass plates?
Any brass lever in the Emtek line can be ordered on the 15B1 trim, and 51 styles are on offer. That spans the contemporary bars (L-Square, T-Bar and R-Bar in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble) through Athena, Helios, Hermes, Poseidon, Argos, Geneva, Milano, Turino, Coventry, Rope, Rustic, Santa Fe, Wembley, Arts and Crafts and more. The plate itself stays the 2 x 10 inch modern profile whichever lever you pick, so a property with mixed door styles can hold one plate and vary the handle.
12) Is the Emtek 15B1 electronic or does it take a smart lock module?
Purely mechanical. The 15B1 is key and lever operated with a euro profile cylinder, no electronics, no motor, no keypad. If you want code or app access on a multi point patio door, that is a different product line, not an add-on to this trim.
