Emtek Emtek 1581 Multi Point Lock Trim (Door Config #5) - Brass Plates, Concord Style (2" x 10.5"), Keyed with Euro Cylinder Hub BELOW Handle EMTEK-1581

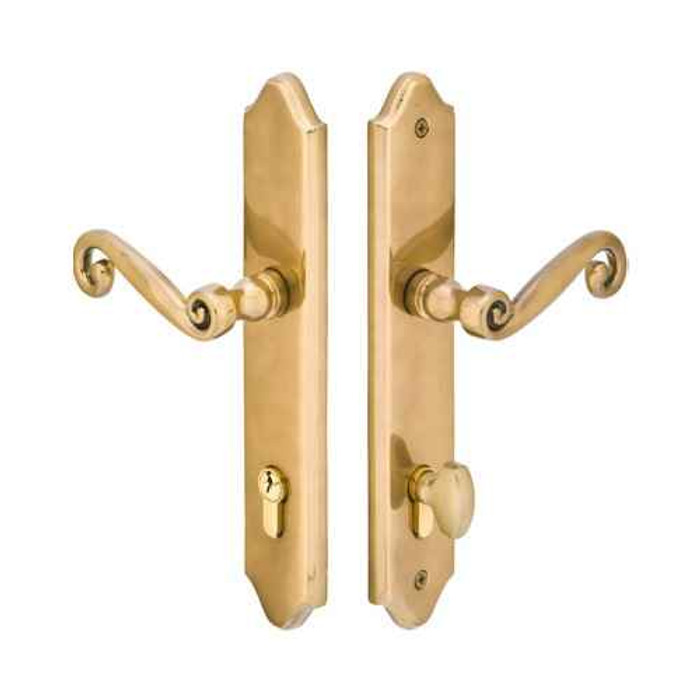

Emtek 1581 Multi Point Lock Trim (Door Config #5) - Brass Plates, Concord Style (2" x 10.5"), Keyed with Euro Cylinder Hub BELOW Handle

(No reviews yet) Write a Review

Model: 1581-US15
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #5
  • Plate Size: 2" x 10.5"
  • Material: Brass
  • Plate Style: Concord
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: Euro Profile Cylinder
  • Cylinder Position: Below Handle
  • Product Type: Multi Point Lock Trim



Emtek 1581 Multi Point Lock Trim (Door Config #5) - Brass Plates, Concord Style (2" x 10.5"), Keyed with Euro Cylinder Hub BELOW Handle

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Below Handle
Door Configuration:
#5
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Series:
Concord
Theme:
American Classic
MAP Policy:
Yes
Product Model:
1581
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with Euro Cylinder
Product Size:
2" x 10-1/2"
Cylinder Classification:
Euro Profile
Product Style:
Concord
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1581-US15 – Frequently Asked Questions

1) What does the Emtek 1581 multi point lock trim actually include, and do I still need the lock body?
The 1581 is trim only: plates, handles, and the euro profile cylinder. The multi point mortise lock box is not included, so you order that separately or reuse the one already in the door. Levers are chosen from any Emtek brass lever, and the trim ships with the spring assist function that returns the lever to neutral so the handles don't sag.
2) Will the Emtek Concord 1581 trim fit my existing multi point patio door hardware?
Fit is decided by the door configuration and the center-to-center spacing. The 1581 is Door Configuration #5 with 3-5/8 inch center-to-center between the handle hub and the cylinder, and the euro cylinder hub sits BELOW the handle. Measure your existing plate hub-to-hub and check that the keyway is below the lever, not above it. If your door has the cylinder above the handle, or a different spacing, this is the wrong configuration.
3) Which door brands does Emtek multi point lock trim work with?
Emtek lists this trim against Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, and Weathershield doors. Those are reference manufacturers, so the deciding check is still the hardware layout: Configuration #5, 3-5/8 inch center-to-center, cylinder below the lever.
4) Do I have to specify handing when ordering Emtek 1581 multi point trim?
Handing is required, right hand or left hand, and so is the lever style. Stand outside the door: if the hinges are on your right it's a right hand door. Get it wrong and the lever points the wrong way and the plate orientation won't match the door.
5) Can I key my Emtek patio door trim to match the other locks in the house?
The 1581 is a single cylinder keyed entry trim on a euro profile cylinder, and it can be ordered keyed alike so several doors run on one key, or keyed different. There's also a keying-to-code option if you already have a code your other Emtek cylinders are cut to. Keyed alike only works across cylinders of the same keyway, so a euro cylinder keys with other euro cylinders.
6) How big are the plates on the Emtek Concord trim, and will they cover the marks left by my old hardware?
Concord plates measure 2 x 10-1/2 inches. If the trim coming off is narrower or shorter than that, the new plates cover the old footprint. If the old plate was wider than 2 inches, expect finish witness marks on the door face to show at the edges.
7) What finishes does Emtek offer on the Concord 1581 brass trim?
Eight finishes, all on solid brass: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), and French Antique (US7). Unlacquered brass has no clear coat, so it patinas with handling and weather, which matters on a patio door that sees sun and hands all day. The lifetime polished brass holds its shine.
8) Is Emtek 1581 multi point trim rated for a commercial building or an apartment entry?
Emtek classifies this trim as residential hardware. It's built for swinging patio doors on houses and residential units, not for a commercial opening or a facility standardization program where a Grade 1 mortise or cylindrical lock is on the spec.
9) Does the door thickness matter when ordering Emtek multi point lock trim?
It does, and there's a field on the order to enter it. The spindle and the euro cylinder both have to be sized to the door, so give the actual measured thickness of your patio door slab rather than assuming a standard. Measure at the edge, through the existing lock prep.
10) Can I pick any Emtek lever for the Concord plate, or only certain ones?
Any Emtek brass lever works with the Concord plate, and the choice is required at order. That covers the L-Square, T-Bar and R-Bar bar levers in faceted, hammered, knurled, Tribeca, straight knurled and white marble, plus the cast levers like Athena, Poseidon, Stuttgart, Milano, Turino, Coventry, Rope, Rustic, Santa Fe and Arts & Crafts. Match the lever to the interior doors and the patio door reads as part of the same set.
11) Is there an electronic or keypad version of this Emtek multi point trim?
No. The 1581 is a mechanical trim, keyed on a euro profile cylinder with no electronic component. If you want keypad or smart entry on a multi point patio door, this isn't the trim to start from.
