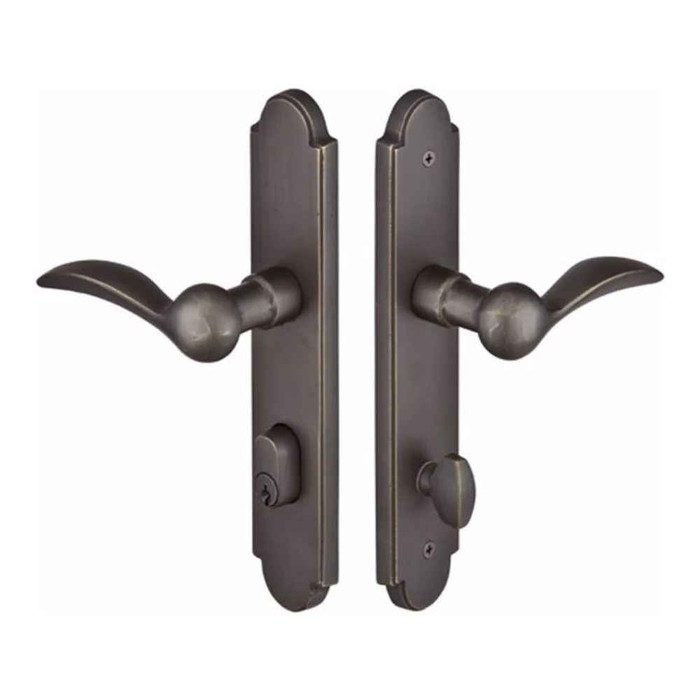

Emtek Emtek 1521 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (2" x 10"), Keyed with Euro Cylinder Hub BELOW Handle EMTEK-1521

Emtek 1521 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (2" x 10"), Keyed with Euro Cylinder Hub BELOW Handle

(No reviews yet) Write a Review

Model: 1521-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #5
  • Plate Size: 2" x 10"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: Euro Profile Cylinder
  • Cylinder Position: Below Handle
  • Product Type: Multi Point Lock Trim



Emtek 1521 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (2" x 10"), Keyed with Euro Cylinder Hub BELOW Handle

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#5
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1521
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with Euro Cylinder
Product Size:
2" x 10"
Cylinder Classification:
Euro Profile
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1521-FB – Frequently Asked Questions

1) Does the Emtek 1521 multi point trim include the multi point lock body?
No. The 1521 is trim only. The set covers the plates, the handles, and the euro profile cylinder. The multi point mortise lock box itself has to be sourced separately, so if you are replacing a full multi point system rather than just refreshing the hardware on the door face, you need the lock body too.
2) Which door brands does Emtek multi point trim configuration #5 fit?
Configuration #5 trim is referenced to Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, and Weathershield door systems. Config number plus the 3-5/8 inch center to center is what matches the trim to the lock, so confirm both against the multi point lock in your door slab.
3) Is the cylinder above or below the handle on the Emtek 1521?
Below the handle. Emtek builds the same arched trim both ways, and the two are not interchangeable, since the hub position has to match the multi point lock case in the door. Look at the existing door: if the key cylinder sits above the lever, the 1521 is the wrong half of the pair.
4) What do I have to specify when ordering Emtek 1521 sandcast bronze multi point trim?
Five things get chosen at order time. Finish, in Flat Black Bronze, Medium Bronze, or Tumbled White Bronze. Lever style, from Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, or Yuma. Handing, right or left. Keying, either keyed different or keyed alike, with an optional key code if you are matching an existing system. And door thickness, which Emtek uses to size the cylinder and spindle for your slab.
5) Does handing matter on Emtek multi point lock trim?
Handing matters here, and it is a required choice at order. The 1521 is built right hand or left hand, and there is no field reversing the lever on a sandcast bronze multi point trim. Stand outside the door: if the hinges are on your right, it is right hand.
6) Can I key the Emtek 1521 alike to the other doors in the house?
Yes. It is a single cylinder keyed entry trim with a euro profile cylinder, and it can be ordered keyed alike rather than keyed different. If you already have a key code on file for the rest of the property, that code can be supplied with the order so the new patio door runs on the same key.
7) Will Emtek 1521 trim stop my patio door levers from sagging?
Every Emtek multi point trim now ships with a spring assist that returns the lever to neutral, which is the fix for the drooping handle you get on a tall patio door after a few seasons. If sagging levers are the reason you are replacing the trim, that is the part of the assembly doing the work, and you keep the existing multi point lock body in the door.
8) Is Emtek sandcast bronze multi point trim suitable for a commercial building?
It is residential hardware. Emtek classes the sandcast bronze collection as residential, and it is swinging patio door hardware, so it belongs on homes, custom residences, and multi family units where the opening is a patio or entry door rather than a rated commercial opening. For a commercial entrance under an ANSI grade spec, this is not the product line to be looking at.
9) What finish and material is the Emtek 1521 arched trim, and will it patina?
Sandcast bronze, solid bronze substrate, in a 2 x 10 inch arched plate. Three finishes are offered: Flat Black Bronze, Medium Bronze, and Tumbled White Bronze. Because these are cast bronze rather than plated, each piece carries the texture and slight variation of the casting, which is what makes them match across a rustic or timber frame elevation.
