Emtek 1121 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

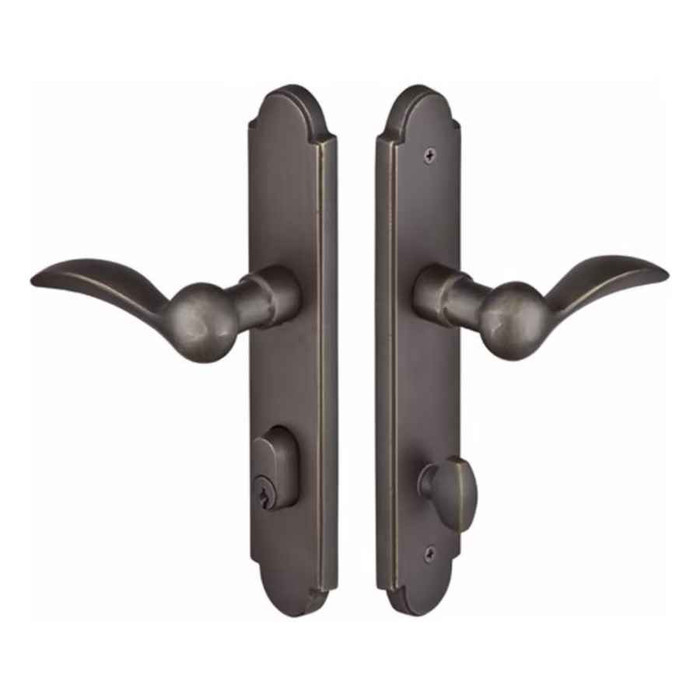

Emtek Emtek 1121 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (2" x 10"), Keyed with American Cylinder Hub BELOW Handle EMTEK-1121

Emtek 1121 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (2" x 10"), Keyed with American Cylinder Hub BELOW Handle

(No reviews yet) Write a Review

Model: 1121-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #1
  • Plate Size: 2" x 10"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Below Handle
  • Product Type: Multi Point Lock Trim



Emtek 1121 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (2" x 10"), Keyed with American Cylinder Hub BELOW Handle

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#1
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1121
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1121-FB – Frequently Asked Questions

1) Will the Emtek 1121 trim fit my multi point patio door?
It is built to Emtek Door Configuration #1 with a 3-5/8 inch center-to-center between the handle hub and the cylinder, and the cylinder sits below the handle. That hole pattern is what has to match your gearbox faceplate, not the brand of the door. Emtek references this multi point trim against Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, and Superior doors. Measure hub center to cylinder center on your existing trim: 3-5/8 inches with the key below the lever is Config #1.
2) What do I have to specify when ordering the Emtek 1121 sandcast bronze multi point trim?
Five choices are all required. Lever style, from ten sandcast bronze levers: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma. Handing, right or left. Finish, in Flat Black Bronze, Medium Bronze, or Tumbled White Bronze. Keyway, Schlage standard or Weiser WR5. And keying, keyed different or keyed alike, with an optional field for keying to an existing code. Door thickness can be given too if your door is not standard.
3) Can I key this Emtek multi point trim to match the rest of the house?
Yes, and that is what the keyway choice is for. The trim carries a single cylinder American cylinder, and it can be had in the Schlage keyway or the Weiser WR5 keyway. Pick the one your existing locks already use and it can be keyed alike with them, or supplied to an existing key code. If the openings are mixed, order keyed alike across the Emtek pieces and rekey the odd ones to that keyway.
4) Do I need to know the handing before ordering Emtek 1121 multi point trim?
Handing matters here, and it is a required selection: right hand or left hand. Multi point trim is not reversible in the field the way a common cylindrical lockset is, because the lever and the cylinder sit in a fixed relationship on a long plate. Stand outside the door, on the side the key goes in. If the hinges are on your right, it is right hand.
5) Is the key above or below the handle on the Emtek 1121?
Below. The 1121 is the hub-below-handle arrangement, key under the lever, with 3-5/8 inches between centers. Emtek builds the same arched sandcast bronze trim in a hub-above-handle version as a separate model, so if your gearbox has the cylinder up top this is the wrong part for that door. Look at the plate you are removing before you order.
6) Is Emtek sandcast bronze multi point trim suitable for a commercial building entrance?
It is classified residential. For a swinging patio door on a house, a custom home, or a high end multi family unit, that is what it is made for. For a commercial entrance under a hardware schedule, look at a Grade 1 mortise lock and commercial trim instead, since this trim carries no commercial grading and is designed around a residential multi point patio door gearbox.
7) Can I get Emtek sandcast bronze levers other than the ones pictured on this trim?
The 1121 trim accepts any Emtek sandcast bronze lever, and ten are offered on it directly: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma. That is what lets you match the multi point patio door to the passage and entry sets elsewhere in the house, since the same lever designs run across the sandcast bronze collection.
8) What is the difference between multi point lock trim and a regular entry handleset?
A regular handleset carries the latch and deadbolt itself. Multi point trim carries no locking hardware at all, it drives a gearbox already mortised into the door stile, which throws several bolts up and down the edge at once. That is why the 1121 comes as plates, handles, and a cylinder only. Order it when the gearbox is already in the door and sound; order a handleset when the door has a standard bore and deadbolt prep.
9) Do the levers on Emtek multi point trim sag over time?
Each of these multi point trim sets now ships with the Spring Assist function, which returns the lever to the neutral horizontal position and stops the droop that older multi point handles develop after a few years of use. It is built into the trim, so there is nothing extra to order for it.
