Emtek 1621 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

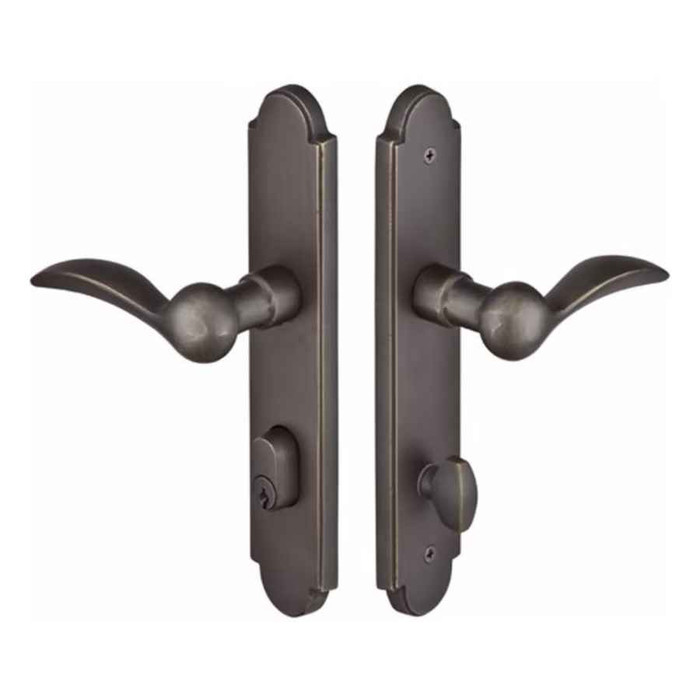

Emtek Emtek 1621 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Arched Style (2" x 10"), Keyed with American Cylinder Hub BELOW Handle EMTEK-1621

Emtek 1621 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Arched Style (2" x 10"), Keyed with American Cylinder Hub BELOW Handle

(No reviews yet) Write a Review

Model: 1621-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #6
  • Plate Size: 2" x 10"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Below Handle
  • Product Type: Multi Point Lock Trim



Emtek 1621 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Arched Style (2" x 10"), Keyed with American Cylinder Hub BELOW Handle

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1621
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1621-FB – Frequently Asked Questions

1) Does the Emtek 1621 multi point trim include the multi point lock body, or just the handles and plates?
Trim only. The 1621 set gives you the two plates, the handles, and the cylinder. The multi point mortise lock box is not included, so you either keep the lock body already in the door or source one separately. That is the usual arrangement on a swinging patio door retrofit: the multi point gearbox stays in the slab, and you change the trim on both faces.
2) What is the center-to-center measurement on the Emtek 1621 arched trim, and will it line up with my existing multi point door prep?
Center-to-center is 3-5/8 inches, measured between the handle hub and the cylinder hole. The plates run 2 by 10 inches. It is built to Door Configuration #6 with the cylinder hub below the handle, so the existing prep in your slab has to be a 3-5/8 inch spread with the key hole under the lever, not above it. If your door is drilled to a different config or spread, this trim will not drop on.
3) Which patio door brands does the Emtek Config #6 multi point trim reference?
Milgard and Pella are the referenced door manufacturers for this configuration. Config #6 with a 3-5/8 inch center-to-center and the cylinder below the handle is the layout to match. Measure the prep on your own slab before ordering, since a single manufacturer builds more than one multi point layout.
4) Can I key this Emtek patio door trim to match the Schlage or Kwikset keys already on my house?
Yes, within two keyways. The 1621 takes an American cylinder and ships either with a Schlage keyway (the standard choice) or a Weiser WR5 keyway, which is the Kwikset-family keyway. Pick the one your existing keys use. Keying is set at order time: choose keyed different or keyed alike, and if you have a bitting code from your other locks you can enter it as keying to code so the patio door runs on the same key as the rest of the openings.
5) What do I have to specify when ordering Emtek 1621 sandcast bronze multi point trim?
Five choices, and four of them are required. Lever style from ten sandcast options: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, or Yuma. Handing, right or left. Keyway, Schlage or Weiser WR5. Keying, keyed different or keyed alike, with an optional field to key to an existing code. Door thickness is the one optional entry, and worth filling in so the cylinder length suits your slab. Finish is Flat Black Bronze, Medium Bronze, or Tumbled White Bronze.
6) Is handing important on Emtek multi point lock trim, and how do I determine it?
Handing matters here, and it is a required selection: right hand or left hand. Multi point trim is not reversible in the field the way a simple passage set is, because the lever hub and the cylinder position below the handle are cut for one swing. Stand outside the door, on the side the key goes in. If the hinges are on your right it is right hand, hinges on your left it is left hand. Order it wrong and the lever will sit upside down relative to the plate.
7) Do Emtek sandcast bronze levers sag over time on a patio door?
Not on current production. Emtek multi point trim now includes a spring assist in the trim that returns the lever to horizontal and takes the load off the lock hub, which is what causes drooping handles on heavy exterior levers. Any of the ten sandcast bronze levers can be paired with the 1621 plates.
8) Is the Emtek 1621 single cylinder or double cylinder, and what does that mean for the inside handle?
Single cylinder. The key operates from the exterior only, and the interior side has no keyhole, so anyone inside works the door by the lever without needing a key. Keyed entry function, American cylinder, keyhole below the handle.
9) Is the Emtek 1621 multi point trim rated for commercial use?
It is a residential product. Emtek classifies the 1621 sandcast bronze multi point trim as residential, and it is a mechanical, non-electronic set with no electrified or access control option. For a multi-family or commercial opening that has to carry a graded, code-driven spec, this is not the trim to put on the drawing.
10) Can I order Emtek 1621 trim keyed alike across several patio doors in the same house?
Yes. Keyed alike is one of the two keying selections, so a run of doors can be set to a single key. Stay on one keyway across the order, Schlage or Weiser WR5, since cylinders in different keyways cannot share a key. If the rest of the property is already keyed, use the keying to code field and give the existing bitting code.
11) What is sandcast bronze trim like on an exterior patio door compared with a plated finish?
Sandcast bronze is solid bronze poured in a sand mold, so the finish is the metal itself rather than a coating over a zinc or brass substrate. The 1621 comes in Flat Black Bronze, Medium Bronze, and Tumbled White Bronze. These are living finishes that shift with handling and weather, which is why they get specified on rustic and heavy timber entries. If you want every opening on the house to look the same in five years, run the same sandcast collection on all of them rather than mixing with a lacquered finish.
