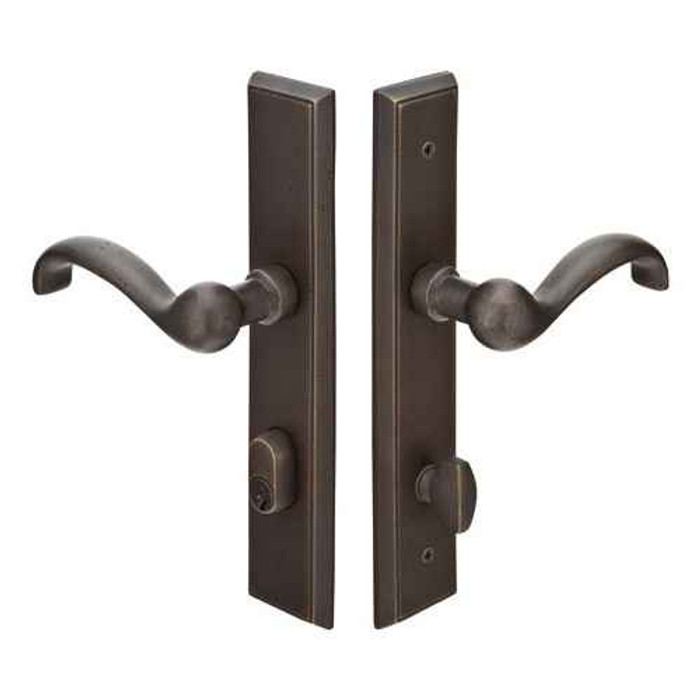

Emtek Emtek 1161 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Keyed with American Cylinder Hub BELOW Handle EMTEK-1161

Emtek 1161 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Keyed with American Cylinder Hub BELOW Handle

(No reviews yet) Write a Review

Model: 1161-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #1
  • Plate Size: 2" x 10"
  • Material: Sandcast Bronze
  • Plate Style: Rectangular
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Below Handle
  • Product Type: Multi Point Lock Trim



Emtek 1161 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Keyed with American Cylinder Hub BELOW Handle

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#1
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
Series:
Rectangular
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1161
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
2" x 10"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1161-FB – Frequently Asked Questions

1) Does the Emtek 1161 multi point trim include the multi point lock body?
No. The 1161 is trim only: plates, handles, and the cylinder. The multi point mortise lock box has to be sourced separately, so the gearbox already in the door (or a new one) has to be bought or reused on its own.
2) What is the center-to-center spacing on the Emtek 1161 trim, and how do I know it matches my door?
Spacing from the lever hub to the cylinder is 3-5/8 inches, with the cylinder sitting below the handle. That has to match the existing prep in the door and the gearbox hub-to-cylinder spacing exactly, since the plate is a fixed 2 x 10 inch rectangular casting with no adjustment.
3) Which patio door brands does the Emtek 1161 Configuration #1 trim reference?
Emtek lists Configuration #1 against Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, and Superior multi point doors. If your slab came from one of those, Config #1 is the layout to be checking against your prep.
4) Do I have to specify handing when ordering Emtek 1161 multi point trim?
Yes, handing is a required selection, right hand or left hand. Multi point trim is handed because the lever and the cylinder position have to orient to the swing, so a wrong pick is a wrong part rather than something you flip on site.
5) What keyways can I get on the Emtek 1161, and can it be keyed alike to the rest of my house?
The American cylinder comes in Schlage keyway (standard) or Weiser WR5. Keying is a required choice at order time, keyed different or keyed alike, and there is a field to key to an existing code, so it can be matched to locks already on the property provided they run the same keyway.
6) Is the Emtek 1161 single or double cylinder?
Single cylinder. Key outside, thumbturn-style operation on the interior side, which is the usual setup for a swinging patio door where you want to get out without a key.
7) Is the Emtek 1161 suitable for a commercial opening?
It is rated residential. For swinging patio doors in houses and multi-family units it is the right trim; for a commercial entrance under a hardware schedule you want a Grade 1 commercial lockset instead.
8) Do I need to give my door thickness when ordering the Emtek 1161?
There is an optional door thickness field on the order. Patio door slabs vary, and the spindle and cylinder length have to span the leaf, so give the actual thickness if your door is anything other than standard.
9) What finishes does the Emtek 1161 sandcast bronze trim come in?
Three: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). All three are available with either keyway. Being solid sandcast bronze rather than plated, these are living finishes that shift with handling and weather on an exterior patio door.
10) Will the levers sag over time on this Emtek multi point trim?
The 1161 includes Emtek's spring assist, which returns the lever to horizontal and is there specifically to stop the droop that shows up on heavy solid bronze levers after a few years of use.
11) Is there an electronic or keypad version of this Emtek multi point trim?
No. The 1161 is a mechanical keyed set with an American cylinder, no electronics, no keypad, no wiring to run.
