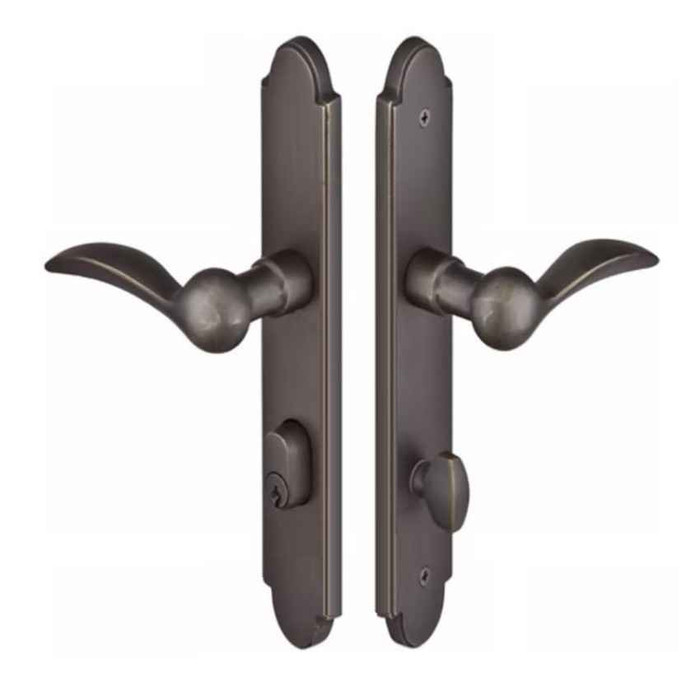

Emtek Emtek 1611 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Keyed with American Cylinder Hub BELOW Handle EMTEK-1611

Emtek 1611 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Keyed with American Cylinder Hub BELOW Handle

(No reviews yet) Write a Review

Model: 1611-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #6
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Below Handle
  • Product Type: Multi Point Lock Trim



Emtek 1611 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Keyed with American Cylinder Hub BELOW Handle

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1611
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1611-FB – Frequently Asked Questions

1) Does the Emtek 1611 multi point trim include the multi point lock body, or just the handles and plates?
Trim only. The 1611 set gives you the plates, the handles, and the cylinder; the multi point mortise lock box is not part of it. If the door is new or the existing gearbox is shot, that lock body has to be sourced separately. The lever style is a required choice at order time, and any Sandcast Bronze lever in the range works with these plates.
2) Will the Emtek 1611 trim line up with my existing multi point door prep?
It fits Door Configuration #6 prep with a 3-5/8 inch center-to-center between the handle hub and the cylinder, cylinder hub sitting below the handle. Measure your door: if your existing prep puts the key above the lever, or the hub spacing is anything other than 3-5/8 inches, the 1611 will not drop in. Plate footprint is 1-1/2 x 11 inches, so it also has to cover whatever the old plate covered.
3) Can I key the Emtek 1611 to my existing Schlage or Kwikset house keys?
The cylinder is an American-style cylinder and can be ordered in either the Schlage keyway (the standard option) or the Weiser WR5 keyway. WR5 is the keyway that matches Kwikset and Weiser residential keys. You also pick keyed different or keyed alike at order time, and there is a field to key to a specific code if your locksmith or builder has given you one.
4) Do I have to specify handing when ordering Emtek sandcast bronze multi point trim?
Yes, handing is a required selection: right hand or left hand. Stand outside the door, on the key side. If the hinges are on your right, it is right hand. Get this wrong on a multi point trim and the lever and cylinder land on the wrong faces.
5) Is the Emtek 1611 keyed on both sides, or is there a thumbturn inside?
Single cylinder. There is one key cylinder, on the exterior plate, with the interior side operating without a key. That is the usual choice for a patio door with glass in an area where egress without a key matters. If you need the door keyed from both sides, this is not the trim for it.
6) Will the Emtek 1611 levers sag over time like my old patio door handles?
The trim now ships with a Spring Assist mechanism that returns the lever to horizontal and stops the drooping handle problem that plagues older multi point trim. That is worth knowing if you are replacing a set that sagged, since the failure was usually in the trim, not the gearbox.
7) Is the Emtek 1611 sandcast bronze trim suitable for a commercial entrance?
It is classified as residential hardware, built for swinging patio doors. For a commercial opening with high traffic, a code-required egress device, or a rated door, this is the wrong direction: you want commercial mortise or cylindrical lock hardware instead. Where it belongs is a high-end home, a rental house, or a hospitality unit with hinged patio doors.
8) How thick can my door be for Emtek multi point lock trim?
Door thickness is a value you supply when ordering the 1611, in a dedicated field, so the cylinder and spindle lengths are matched to your slab. Measure the door edge before you place the order rather than after the trim arrives.
9) What finishes and lever styles does the Emtek 1611 arched trim come in?
Three sandcast bronze finishes: Flat Black Bronze, Medium Bronze, and Tumbled White Bronze, each available in either keyway. Lever choice is separate and required, from ten sandcast styles: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma. Because the plates are sandcast bronze, each casting varies slightly, which is what makes the finish read as hand-made rather than plated.
10) Is the Emtek 1611 an electronic or smart lock?
Purely mechanical. The 1611 is key and lever only, with no electronics, no motor, and no wiring in the trim. Nothing to power and nothing to fail when the batteries die, but also no keypad or app control if that is what you were after.
