Emtek Emtek 1511 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Keyed with Euro Cylinder Hub BELOW Handle EMTEK-1511

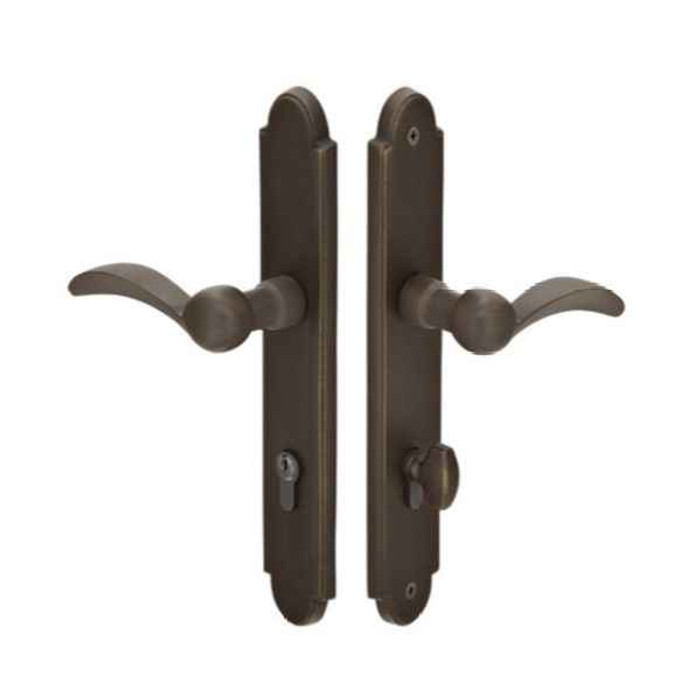

Emtek 1511 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Keyed with Euro Cylinder Hub BELOW Handle

(No reviews yet) Write a Review

Model: 1511-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #5
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: Euro Profile Cylinder
  • Cylinder Position: Below Handle
  • Product Type: Multi Point Lock Trim



Emtek 1511 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Keyed with Euro Cylinder Hub BELOW Handle

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#5
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1511
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with Euro Cylinder
Product Size:
1-1/2" x 11"
Cylinder Classification:
Euro Profile
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1511-FB – Frequently Asked Questions

1) Does the Emtek 1511 multi point trim include the multi point lock body?
No. The 1511 is trim only: plates, handles, and the euro cylinder. The multi point mortise lock box has to be sourced separately, so if you are replacing a full lockset you need the gearbox already in the door or ordered alongside. That is the single most common ordering mistake on this part.
2) What is Door Configuration #5 on an Emtek multi point trim and how do I know my door matches?
Configuration #5 puts the euro profile cylinder hub BELOW the handle, with a 3-5/8 inch center-to-center between the cylinder and the lever hub. Measure your existing door prep: if the keyhole sits under the lever and the spacing between the two holes is 3-5/8 inches, that is config #5. If the cylinder sits above the lever, or the spacing is different, this trim will not line up with the prep.
3) Will Emtek 1511 trim fit a Therma-Tru or Kolbe swinging patio door?
Both are on the referenced door manufacturer list for this trim, along with Crestline, Hoppe, Hurd, KFV, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Vetter, Willmar, Windsor and Weathershield. Those brands all use euro-profile multi point gear, but the door still has to be prepped in configuration #5 (cylinder below the lever, 3-5/8 inch center-to-center) for the plates to land on the existing holes.
4) Do I have to specify handing when ordering the Emtek 1511?
Handing is required, right hand or left hand, and it is not field-reversible on this trim. Stand outside the door: if the hinges are on your right the door is right hand. Order the wrong one and the lever and cylinder sit backwards on the plate.
5) Can I key several Emtek multi point patio doors alike?
Yes. Keying is a required selection at order time, keyed different or keyed alike, and there is a field for keying to an existing code. If you are doing a run of patio doors on one property, choose keyed alike across the order so one key runs the set. The 1511 is single cylinder, meaning it is keyed from the outside and operated by the lever or thumbturn side of the multi point gear inside.
6) How big are the plates on the Emtek 1511 arched trim, and will they cover my old escutcheons?
The arched plates measure 1-1/2 by 11 inches. That is a narrow, tall plate, so it suits a patio door stile but it will not hide a wider previous escutcheon. Hold a 1-1/2 by 11 inch template over the existing marks before you pull the old trim off.
7) What lever styles can I get on the Emtek 1511 sandcast bronze trim?
Ten sandcast bronze levers pair with the 1511 plates: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Lever choice is a required selection, and any sandcast bronze lever can go on these plates, so you can match levers already running on the interior doors of the same house.
8) What kind of cylinder does the Emtek 1511 take if I want to rekey it into my existing system?
It takes a euro profile cylinder, and one comes with the trim. Euro profile is the standard on multi point gear from brands like Hoppe and KFV, so if you are matching an existing multi point door you are working in the same cylinder family. Note this is a euro profile, not a standard US mortise cylinder, so a mortise cylinder from a commercial keyway will not drop in.
9) Is the Emtek 1511 multi point trim suitable for a commercial building entrance?
It is a residential-rated product for swinging patio doors, not commercial entrance hardware. For an apartment unit patio door or a single-family rear entry it is the right category; for a commercial opening that needs a graded entrance lock you want a different product line.
10) Do I need to give my door thickness when ordering Emtek multi point trim?
There is an optional door thickness entry on the order. Supply it if your door is anything other than a standard slab, because the spindle and cylinder length have to reach through the door and into the multi point gearbox. On a euro-profile setup the cylinder length is what determines whether the key turns freely or binds.
11) What finishes does the Emtek 1511 sandcast bronze multi point trim come in?
Three sandcast bronze finishes: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). All three are solid bronze, not plated, so the finish is in the metal and will patina with handling rather than wear through to a base material.
12) Will these Emtek levers sag over time like older multi point handles?
The 1511 trim includes a spring assist that returns the lever to the neutral horizontal position, which is what stops the drooping handle problem common on heavier multi point levers. It is built into the trim, not an add-on you specify.
13) Is the Emtek 1511 an electronic or keypad lock?
No, it is fully mechanical, keyed from the outside with a euro cylinder. If you are looking for keypad or smart entry on a swinging patio door, this is not that product.
