Emtek 1551 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$416.00
$384.94

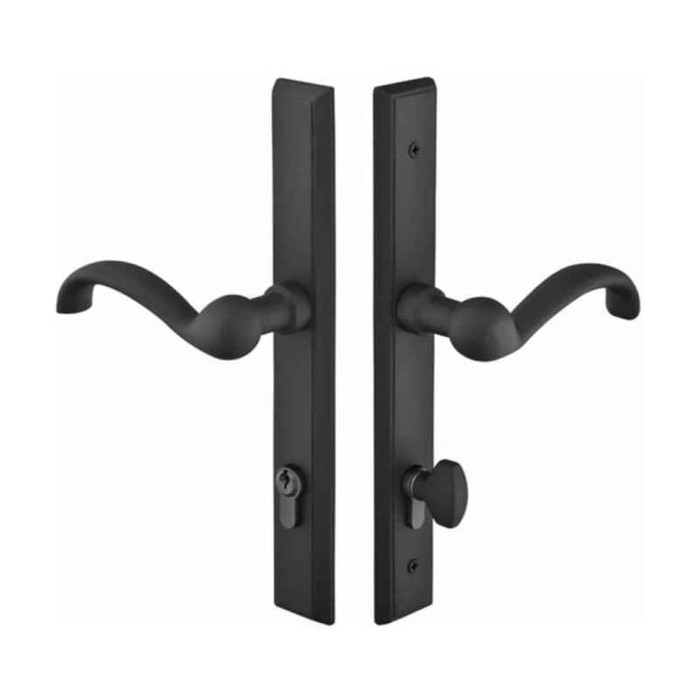

Emtek Emtek 1551 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Keyed with Euro Cylinder Hub BELOW Handle EMTEK-1551

Emtek 1551 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Keyed with Euro Cylinder Hub BELOW Handle

(No reviews yet) Write a Review

Model: 1551-FB
From the Sandcast Bronze Collection
$416.00
$384.94
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$416.00
$384.94
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #5
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Rectangular
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: Euro Profile Cylinder
  • Cylinder Position: Below Handle
  • Product Type: Multi Point Lock Trim



Emtek 1551 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Keyed with Euro Cylinder Hub BELOW Handle

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#5
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Series:
Rectangular
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1551
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with Euro Cylinder
Product Size:
1-1/2" x 11"
Cylinder Classification:
Euro Profile
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1551-FB – Frequently Asked Questions

1) Does the Emtek 1551 multi point trim include the multi point lock body, or just the handles and plates?
Trim only. The Emtek 1551 set gives you the plates, the handles, and the euro profile cylinder. The multi point mortise lock box that actually drives the latch and the secondary locking points is not included, so you need the door's existing lock body or a separately purchased one. On a retrofit that's usually fine, since the gearbox stays in the door and only the visible trim gets swapped.
2) What is Door Configuration #5 on Emtek multi point trim and how do I know my door uses it?
Configuration #5 on the Emtek 1551 puts the euro cylinder hub BELOW the lever, with a 3-5/8 inch center-to-center between the cylinder and the handle spindle. Emtek's multi point configurations are defined by where the cylinder sits relative to the handle and how far apart they are, so the way to confirm your door is to measure the existing trim: cylinder underneath the lever, 3-5/8 inches center to center, and configuration #5 is your set. If the cylinder sits above the lever or the spacing measures something else, you need a different configuration.
3) Will Emtek 1551 trim fit a Therma-Tru or Kolbe swinging patio door?
Those are among the door lines this trim is referenced to. Emtek lists the 1551 against Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor and Weathershield multi point doors. The deciding detail is still the prep, not the brand: the cylinder has to sit below the lever at 3-5/8 inch center-to-center, and the door has to take a euro profile cylinder.
4) What do I have to specify when ordering Emtek 1551 sandcast bronze multi point trim?
Five choices, and four of them are required. Finish, from Flat Black Bronze, Medium Bronze, or Tumbled White Bronze. Lever style, from Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, or Yuma. Handing, right or left. And keying, either keyed different or keyed alike, with an optional field to key to an existing code. Door thickness is an optional entry, so supply it if your slab is anything other than standard.
5) Does Emtek 1551 trim come handed, and what happens if I order the wrong hand?
Handing matters here, and it is a required selection: right hand or left hand. Because the cylinder sits below the lever rather than centered, the plate is not symmetrical and a wrong-hand set will not present correctly on the door. Stand outside the door: if the hinges are on your right, it's right hand.
6) How big are the plates on the Emtek 1551 multi point trim, and will they cover my old holes?
The plates measure 1-1/2 x 11 inches in a rectangular profile. That is a narrow, tall escutcheon sized for a patio door stile, so on a swap from another multi point trim it will cover the cylinder and spindle holes but not a wider or shorter previous plate. Measure the footprint of what's on the door now against 1-1/2 x 11 before you pull the old trim.
7) Is the Emtek 1551 keyed on both sides, or key outside and thumbturn inside?
Single cylinder. Key on the outside, and the inside operates without a key. It's a keyed entry function using a euro profile cylinder, which is the cylinder format nearly every multi point patio door gearbox is cut for.
8) Can I key several Emtek multi point patio doors alike, or match them to keys I already have?
Both are on the order form. Keyed alike ties multiple 1551 sets to one key, which is what you want when a house or a unit has more than one swinging patio door. There's also a keying to code entry, so if you already run a keyway code across the property you can have the euro cylinder cut to it rather than carrying another key. Choose keyed different if each opening should stand alone.
9) Will the levers on this Emtek sandcast bronze trim sag over time like older patio handles?
The 1551 trim carries a spring assist that returns the lever to neutral, which is the mechanism that stops the drooping handle problem on multi point patio doors. On a rental or a property with heavy patio traffic that's the difference between a handle that still sits level after a few seasons and one that needs re-tightening.
10) Is Emtek 1551 multi point trim rated for commercial use or is it residential?
Residential. The 1551 is swinging patio door hardware in the sandcast bronze collection, made for houses and multi-family units rather than a commercial entrance. For a storefront or a high-cycle commercial opening you want commercial-grade lock hardware, not multi point patio trim.
11) Will Emtek sandcast bronze finishes on this multi point trim match the rest of my Emtek door hardware?
The 1551 comes in Flat Black Bronze, Medium Bronze, and Tumbled White Bronze, and the plates are solid sandcast bronze rather than plated. Those are Emtek's sandcast bronze collection finishes, so they line up with sandcast bronze levers and knobs elsewhere in the house. Sandcast bronze is a living finish that varies piece to piece by nature of the casting, so it reads as a family match rather than a machine-exact match to a plated finish.
12) Does the Emtek 1551 multi point trim have any electronic or keypad option?
No. It is a mechanical keyed set, key outside and lever inside, with no electronic component. If you need coded or credential access on a swinging patio door, this is not the trim to start from.
