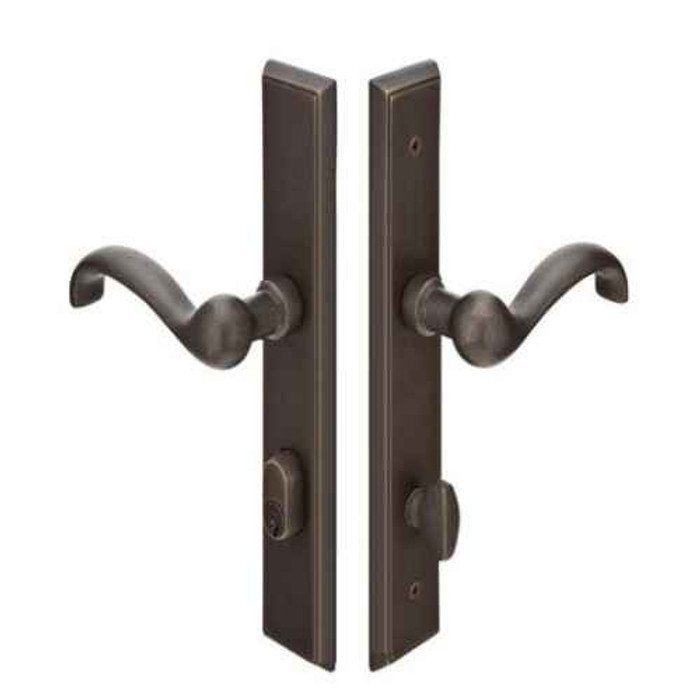

Emtek Emtek 1151 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Keyed with American Cylinder Hub BELOW Handle EMTEK-1151

Emtek 1151 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Keyed with American Cylinder Hub BELOW Handle

(No reviews yet) Write a Review

Model: 1151-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #1
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Rectangular
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Below Handle
  • Product Type: Multi Point Lock Trim



Emtek 1151 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Keyed with American Cylinder Hub BELOW Handle

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#1
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
Series:
Rectangular
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1151
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1151-FB – Frequently Asked Questions

1) Does the Emtek 1151 multi point trim include the multi point mortise lock body?
No. The Emtek 1151 is trim only: plates, handles, and the cylinder. The multi point mortise lock box has to be ordered separately, or it is already in the door if you are replacing hardware on an existing swinging patio door.
2) How do I know if my patio door takes Door Configuration #1 trim?
Configuration #1 refers to the hole pattern in the door slab and the position of the lock hub and cylinder in the multi point lock body. The Emtek 1151 is built for Config #1 with the American cylinder hub BELOW the handle, and the center-to-center distance between the handle hub and the cylinder is 3-5/8 inches. Measure that spacing on your existing trim or the prep in the slab before ordering; if the cylinder sits above the handle, or the spacing is different, you need a different configuration.
3) Which patio door brands does this Emtek multi point trim work with?
Emtek lists Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, and Superior as reference door manufacturers for its multi point trim. Match the door configuration as well as the brand, since one manufacturer can use more than one hub and cylinder layout. The 1151 covers Config #1 with the cylinder below the handle at 3-5/8 inch center-to-center.
4) What has to be specified when ordering the Emtek 1151 trim set?
Five things are chosen at order time on the 1151: lever style (Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, or Yuma), handing (right or left), keying (keyed different or keyed alike), an optional key code if you are matching an existing system, and door thickness. Keyway is picked as part of the item, either Schlage (standard) or Weiser WR5. Finish is Flat Black Bronze, Medium Bronze, or Tumbled White Bronze.
5) Can I key this Emtek patio door trim to match my existing Schlage house keys?
Yes, within limits. The 1151 uses an American cylinder and is available with a Schlage keyway (the standard option) or a Weiser WR5 keyway. Keying to code is offered at no charge, so if your existing Schlage cylinders are on a known bitting code you can have the patio door cylinder cut to it. It is a single cylinder function, keyed outside with a thumbturn or interior lever operation inside.
6) Does handing matter on the Emtek 1151, and can it be reversed in the field?
Handing has to be specified as right hand or left hand when you order, so it is not a field-reversible trim. Stand outside the door: if the hinges are on your right it is right hand. Getting this wrong on a multi point set means the lever and cylinder land on the wrong face of the door.
7) Will the Emtek 1151 plates cover the holes left by my old patio door handle set?
The plates measure 1-1/2 by 11 inches in a rectangular style, so they are narrow and tall. On a patio door stile that is common coverage, but if your previous trim used a wider plate or a different hub spacing than 3-5/8 inches, the old prep may show. Compare your existing plate footprint against 1-1/2 x 11 before committing.
8) Do the levers on this Emtek multi point trim sag over time?
Spring assist is built into the 1151 trim, which returns the lever to the neutral horizontal position and is specifically there to stop handles drooping. That was a common complaint on older multi point trim, and it is now standard on Emtek's multi point sets.
9) Is the Emtek 1151 rated for commercial use?
It is a residential product. The 1151 is sandcast bronze swinging patio door trim from Emtek's Sandcast Bronze collection, intended for homes rather than commercial openings. For a multi-family or hospitality project with commercial cycle requirements, specify a commercially rated set instead.
10) Can I match this patio door trim to the rest of my Emtek sandcast bronze hardware?
Yes. The 1151 is part of Emtek's Sandcast Bronze collection and can be ordered with any Sandcast Bronze lever, so the patio door matches the interior levers and entry sets in the same family. Finishes offered are Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB).
11) Is the Emtek 1151 an electronic or smart lock?
No, it's fully mechanical. The 1151 is keyed trim with an American cylinder in a single cylinder function, with no electronics, no keypad, and no wiring.
