Emtek 1651 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

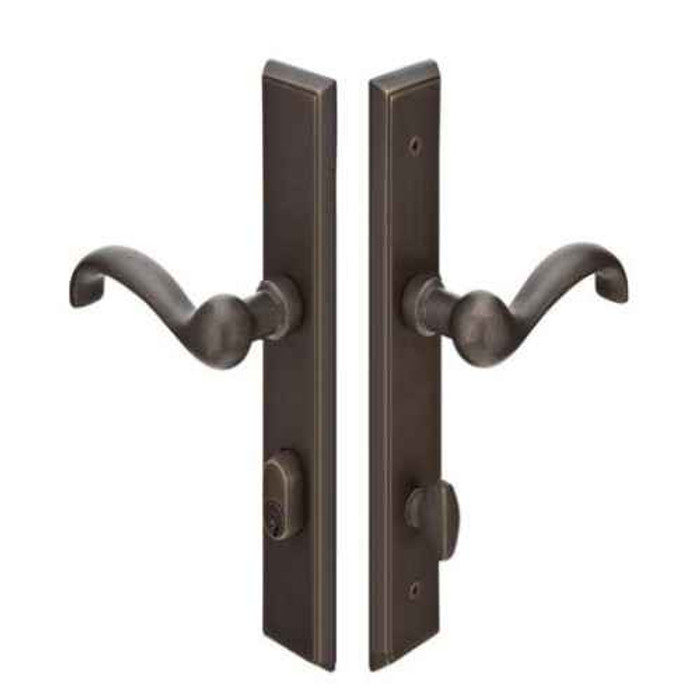

Emtek Emtek 1651 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Keyed with American Cylinder Hub BELOW Handle EMTEK-1651

Emtek 1651 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Keyed with American Cylinder Hub BELOW Handle

(No reviews yet) Write a Review

Model: 1651-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #6
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Rectangular
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Below Handle
  • Product Type: Multi Point Lock Trim



Emtek 1651 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Keyed with American Cylinder Hub BELOW Handle

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Rectangular
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1651
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1651-FB – Frequently Asked Questions

1) Does the Emtek 1651 multi point trim include the multi point lock body, or just the handles and plates?
Trim only. The 1651 set gives you the plates, handles, and the cylinder; the multi point mortise lock box is a separate purchase. If you are replacing worn or dated handles on a swinging patio door that already has a working multi point mechanism inside it, that is exactly what this is for. If the mechanism itself is the problem, the trim alone won't fix it.
2) What does Door Configuration #6 mean on Emtek multi point trim, and how do I know my door is a #6?
Emtek sells its multi point trim by door configuration, which describes the hole pattern already machined into your door and lock. The 1651 is the Configuration #6 trim: rectangular plates measuring 1-1/2 by 11 inches, with the American cylinder hub positioned BELOW the lever. Measure your existing door: the spacing from the center of the lever spindle to the center of the cylinder hole on the 1651 is 3-5/8 inches, and the cylinder must sit under the handle, not over it. If your cylinder sits above the lever, or your center-to-center is different, you need a different configuration number, not this one.
3) Will Emtek 1651 trim fit a Milgard or Pella swinging patio door?
Milgard and Pella are the reference door manufacturers for this trim, so their multi point patios are the openings it is built around. The deciding detail is still the prep itself: rectangular plate footprint of 1-1/2 by 11 inches, cylinder hub below the lever, 3-5/8 inch center-to-center between lever and cylinder. Match those three against the door in front of you before you order.
4) Can I key the Emtek 1651 patio door trim to my existing house keys?
Yes, and this is the main reason to pay attention to the keyway choice. The 1651 uses an American cylinder and ships in either a Schlage keyway or a Weiser WR5 keyway. Pick the one that matches the rest of the house and the locksmith work drops to nothing. Keying to code is available at no charge, so if you have the bitting code from your existing Schlage or Weiser locks, supply it on the order and the patio door will open on the same key. Keyed alike across an order is also an option if you are doing several openings at once.
5) Do I have to specify handing when ordering Emtek 1651 multi point trim?
Handing is required, right hand or left hand, and it is not something you can swap in the field on this one. Stand outside the door facing it: if the hinges are on your right, it is right hand. Get it wrong and the lever pitches the wrong way and the cylinder lands off the prep. Lever style is also a required selection, from ten Sandcast Bronze levers (Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, Yuma), and there is an optional door thickness field where you tell Emtek what slab you are working with.
6) Is the Emtek 1651 single cylinder or double cylinder, and is it keyed on both sides?
Single cylinder. The 1651 is a keyed entry trim with the key cylinder on the exterior plate only; the inside plate operates by lever with no key required to get out. For a swinging patio door on a residence that is normally what you want, since nobody wants to hunt for a key to get off the deck. If your local code or your own preference calls for key control from the inside, a single cylinder trim will not give it to you.
7) What finishes does the Emtek 1651 Sandcast Bronze trim come in?
Three: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB), each offered in both the Schlage and the Weiser WR5 keyway. All three are solid sandcast bronze rather than a plated finish, which is why they belong with the rest of the Sandcast Bronze collection if you are matching entry sets, dummy handles, or interior levers already on the house. Sandcast bronze living finishes shift with handling and weather over time, which is the point of them on an exterior patio door.
8) My patio door handles droop and sag. Does the Emtek 1651 fix that?
It addresses it directly. Every current Emtek multi point trim, the 1651 included, carries a spring assist that returns the lever to neutral instead of letting it hang. Sagging levers on a multi point patio door are usually the trim's return spring giving up, not the lock body, so replacing tired trim on an otherwise sound mechanism is a reasonable repair. Match the door configuration, handing, and 3-5/8 inch center-to-center to your existing prep and the swap is straightforward.
9) Is Emtek 1651 multi point trim approved for commercial buildings?
It is a residential product. The 1651 is swinging patio door hardware for houses and residential units, so on a hotel, school, or office opening, or anywhere the door falls under commercial life safety and egress requirements, it is the wrong direction entirely. Property managers doing multi-family patio sliders and swing doors in individual units are the right fit; a common-area or fire-rated opening is not.
10) Can I match the lever on this patio door to the Emtek levers on the rest of my doors?
Any Sandcast Bronze lever in the Emtek line can be ordered on the 1651 trim, and ten of them are selectable directly: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma. That is what makes this worth doing on a whole-house job. Spec the same lever and the same bronze finish on the patio door as on the interior passage and privacy sets and the opening stops looking like an afterthought.
11) Is the Emtek 1651 an electronic or smart lock?
Purely mechanical. The 1651 is key and lever only, with no electronics, no keypad, and no wiring. On a multi point patio door that is often the practical choice anyway, since the whole point of the mechanism is throwing multiple locking points off the lever throw and a motorized retrofit on a patio multi point is a different animal. If you want keyless entry on this opening, the trim is not where you get it.
How fast can I get the Emtek 1651-FB delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Emtek 1651-FB come with a warranty?
Absolutely. The Emtek 1651-FB is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Emtek 1651-FB?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Emtek 1651-FB from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
