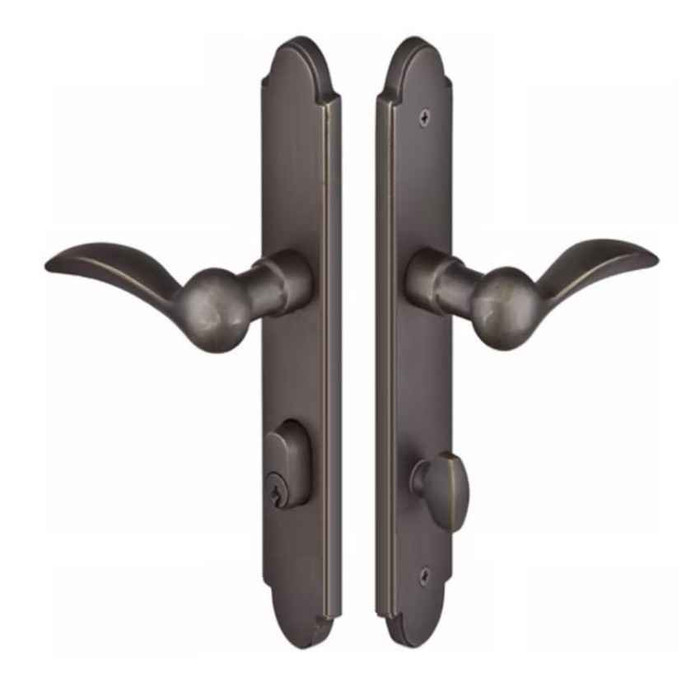

Emtek Emtek 1111 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Keyed with American Cylinder Hub BELOW Handle EMTEK-1111

Emtek 1111 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Keyed with American Cylinder Hub BELOW Handle

(No reviews yet) Write a Review

Model: 1111-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #1
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Below Handle
  • Product Type: Multi Point Lock Trim



Emtek 1111 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Keyed with American Cylinder Hub BELOW Handle


  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#1
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1111
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1111-FB – Frequently Asked Questions

1) Will Emtek 1111 trim fit my Andersen or Marvin swinging patio door?
The 1111 is built for Door Configuration #1 multi point systems, and Emtek references it against Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, and Superior doors. The deciding number is the center-to-center spacing between the handle hub and the cylinder hole: 3-5/8 inches, with the cylinder sitting below the handle. Measure that on your existing door prep. If your spacing or hub layout differs, you need a different configuration, not this one.
2) Is the cylinder above or below the handle on the Emtek 1111 trim?
Below the handle. That is the whole point of the Config #1 designation on this plate: the keyed American cylinder hub sits under the lever, 3-5/8 inches from the handle hub. If you are staring at a door where the key cylinder is above the lever, this plate will not line up with the existing prep and you want the above-handle version instead.
3) Can I key the Emtek 1111 to match my existing Schlage or Kwikset house keys?
The trim takes an American cylinder and ships with a choice of Schlage keyway (standard) or Weiser WR5 keyway. Weiser WR5 is the keyway Kwikset-family keys use, so pick that if the rest of the house runs on those. Keying is set at order time: keyed different or keyed alike, and there is a field to key to a specific code if you have one. It is single cylinder, so key outside, thumbturn side inside.
4) Do I have to specify handing when ordering Emtek 1111 patio door trim?
Yes, handing is required, right hand or left hand, and it is not field reversible on a multi point trim set. Determine it from the outside of the door: stand outside, and the side the hinges are on is the hand. Get it wrong on a keyed multi point set and the lever and cylinder orientation will not work with the gearbox.
5) Is Emtek 1111 multi point trim rated for a commercial entrance?
It is a residential product. Emtek classifies the 1111 as residential swinging patio door hardware in the Sandcast Bronze collection. For an apartment or condo unit patio door in a managed building it is a reasonable match to the existing multi point gearbox, but for a commercial entrance under a hardware schedule you want a commercial mortise or cylindrical lockset instead of patio door trim.
6) What size is the Emtek 1111 backplate, and will it cover my old trim's screw holes?
The arched Sandcast Bronze plate measures 1-1/2 x 11 inches. That is a narrow plate, so it covers a slim vertical strip of the stile and nothing wider. If you are replacing a European-style multi point trim with a wider or longer escutcheon, the 1111 will not hide the old fastener holes. Hold the 1-1/2 by 11 inch footprint against what is on the door before you commit.
7) What finishes does the Emtek 1111 Sandcast Bronze trim come in?
Three: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). All three come in either keyway, Schlage or Weiser WR5. These are sandcast bronze living finishes from Emtek's Sandcast Bronze collection, so they will pair with other Sandcast Bronze levers and hardware on the rest of the openings rather than with a plated brass line.
8) Do I need to give my door thickness when ordering Emtek multi point trim?
There is a door thickness field on the order, and filling it in is worth doing. Multi point trim spans the door with a spindle and a cylinder tailpiece, and both are cut to the door. Patio doors vary more than standard interior doors, so measure the slab at the edge and enter the actual figure rather than assuming a standard thickness.
9) Is the Emtek 1111 an electronic or smart lock?
No, it is purely mechanical keyed trim with an American cylinder and no electronics. There is no motor, no keypad, and no wiring in the trim, so nothing to run power to. Locking and unlocking is the key outside and the lever plus the multi point gearbox inside.
