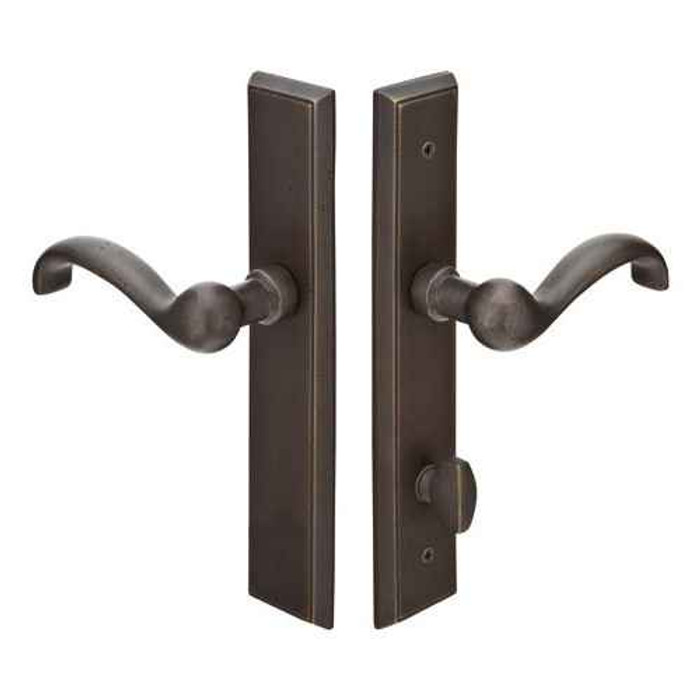

Emtek Emtek 1663 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Non-Keyed American Style Thumbturn Inside EMTEK-1663

Emtek 1663 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1663-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #6
  • Plate Size: 2" x 10"
  • Material: Sandcast Bronze
  • Plate Style: Rectangular
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1663 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Rectangular
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1663
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2" x 10"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1663-FB – Frequently Asked Questions

1) What does Door Configuration #6 mean on Emtek multipoint trim, and will it match my door?
Configuration #6 describes the hole pattern the trim is drilled for: a handle set with the cylinder position below the handle and a 3-5/8 inch center-to-center between the handle and the cylinder/thumbturn. Your existing door prep, or the prep your door manufacturer specifies, has to match that same configuration and spacing. Emtek references Milgard and Pella doors for this trim.
2) Will this Emtek trim fit my Milgard or Pella swinging patio door?
Milgard and Pella are the referenced door manufacturers for the 1663 trim, but the deciding factor is the prep: it must be Configuration #6 with 3-5/8 inch center-to-center spacing and the cylinder opening below the handle. Measure the existing holes before ordering; different multipoint configurations from the same door maker will not interchange.
3) Do I need to specify handing for the Emtek 1663 multipoint trim?
Yes, handing is a required selection, right hand or left hand. Stand outside the door: if the hinges are on your right it is right hand. Getting it wrong means a lever and thumbturn that face the wrong way, so confirm before you order.
4) Which levers can I use with the Emtek 1663 multipoint trim?
Any Emtek sandcast bronze lever, and the selection here covers ten: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Pick the one that matches the sandcast bronze levers already on your interior doors if you are trying to keep a house consistent.
5) How big are the plates on the Emtek 1663, and what shape are they?
Rectangular plates measuring 2 x 10 inches, cast in sandcast bronze. On a retrofit, that footprint matters: if the plate you are replacing is larger, the old fastener holes or finish shadow may show around a 2 by 10 plate.
6) Will the lever on this Emtek patio door trim sag over time?
Emtek multipoint trim now ships with a spring assist that returns the lever to neutral and is intended to stop handles from drooping. That is built into the trim, no separate part to order.
7) Is the Emtek 1663 trim keyed, and can I add a key cylinder later?
It is the non-keyed version: thumbturn on the inside and no cylinder on the exterior plate. Cylinder classification for the configuration is American. If you want a key from outside, you need the keyed version of this trim rather than adding a cylinder to this one.
8) What finishes does the Emtek 1663 sandcast bronze trim come in?
Three: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). All three are sandcast bronze, which is a living finish that will shift over time with handling and weather, so a patio door set will not stay identical to an indoor piece in the same code.
9) Do I need to give my door thickness when ordering Emtek multipoint trim?
There is an optional door thickness entry on the order. Supply it if your patio door is anything other than a standard thickness, so the spindle and through-fixings land correctly on both plates.
