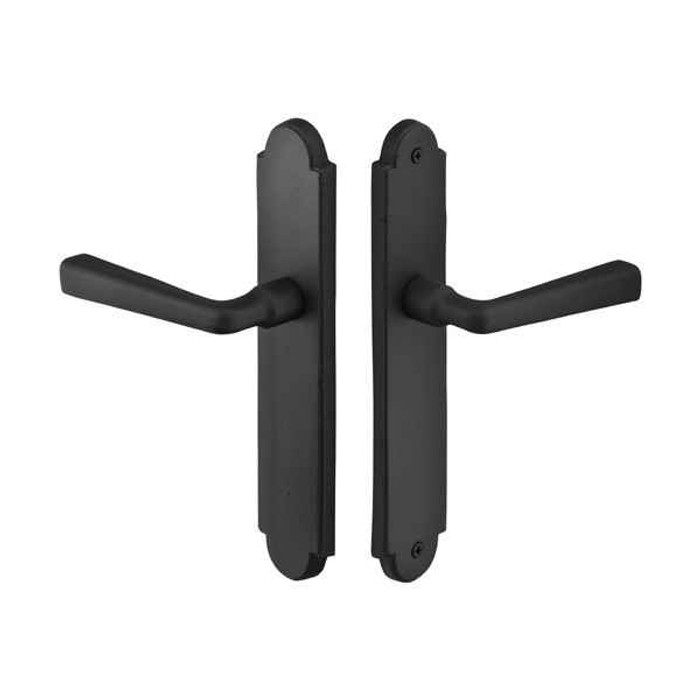

Emtek 1685 Multi Point Lock Trim (Door Config #6) - Brass Plates, Concord Style (2" x 10.5"), Dummy Pair

Trim only. The 1685 set includes the plates and handles, and the multi point mortise lock box is not included, so you order that separately. If your patio door already has a working multi point lock and you only want to change the look of the handles and plates, this is the right part. If the lock itself is broken, new trim will not fix it.

Yes, the Concord style trim covers doors from 1-3/8 to 1-3/4 inches thick, which spans typical residential swinging patio door construction. Door thickness is a required spec on the order, so give the actual measured thickness of your door slab rather than assuming.

The 1685 Concord trim runs 3-5/8 inch center-to-center with the cylinder position below the handle, on a plate measuring 2 x 10-1/2 inches. That combination is Emtek's Door Configuration #6. Measure from the center of your existing handle spindle to the center of the cylinder hole; if it is not 3-5/8 inches, you need a different Emtek door configuration, not this one.

Milgard and Pella are the reference door manufacturers for this configuration. Emtek matches its multi point trim to the door maker's lock layout, and Door Config #6 with 3-5/8 inch center-to-center and the cylinder below the handle is what those doors use. Confirm your own door by measuring the center-to-center distance before ordering.

Nothing mechanical. A dummy pair is fixed trim, both sides, with no latch operation and no keying. It is what you put on the inactive leaf of a French patio pair, or on a door that stays fixed, so the hardware matches the operating door beside it. If you need the handle to retract the multi point latches, this is the wrong function.

No door prep needed. The 1685 is surface mount, so the plates sit on the face of the door over the existing multi point lock. That is what makes it a practical swap on a factory patio door where you do not want to bore a fiberglass or clad slab.

Handing is required on the 1685 because the plate carries the cylinder opening below the handle, so the plate and lever orientation are not symmetric. You pick Right Hand or Left Hand at order. Stand outside the door: if the hinges are on your right, it is right hand.

You choose the lever separately, and the trim takes any Emtek brass lever. The list runs from the L-Square, T-Bar and R-Bar bar levers in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble treatments, through the cast levers (Athena, Helios, Hermes, Luzern, Poseidon, Stuttgart, Argos, Aston, Basel, Breslin, Dumont, Freestone, Geneva, Hercules, Mercury, Myles, Sion, Spencer, Triton), to the traditional shapes (Cortina, Manning, Milano, Merrimack, Turino, Coventry, Elan, Ribbon and Reed, Rope, Rustic, Santa Fe, Wembley, Arts and Crafts, Hammered). Lever style is a required selection.

Eight finishes: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), and French Antique (US7). The plates are solid brass, so the unlacquered option will patina over time while the lifetime polished brass is coated to hold its color.

Order the same Concord 2 x 10-1/2 inch plate in Door Config #6 in a keyed or non-keyed active function, in the same finish and the same lever, for the operating leaf. The dummy pair on the inactive leaf carries no cylinder function of its own; the cylinder on the active side sits below the handle in this configuration. Keep the finish code identical across both leaves, since Emtek finishes are matched by code.

It is residential hardware for swinging patio doors. For a commercial entrance under real traffic, you want a graded commercial lockset rather than surface mount patio trim. The Concord line is styled for the home, in the American Classic look, in solid brass.

Purely mechanical. The 1685 is not an electronic product and carries no motor, keypad or reader. If you want keyless entry on a multi point patio door, that is a different Emtek product line, not this trim.
