Emtek 1745 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

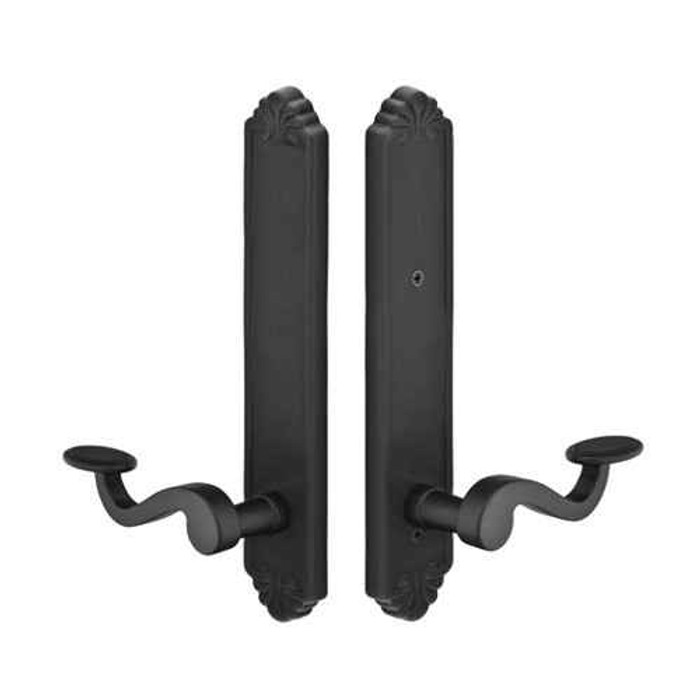

Emtek Emtek 1745 Multi Point Lock Trim (Door Config #7) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11"), Dummy Pair EMTEK-1745

Emtek 1745 Multi Point Lock Trim (Door Config #7) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11"), Dummy Pair

(No reviews yet) Write a Review

Model: 1745-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Handing is
Selected Lever Style is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Thickness: 1-3/8" to 1-3/4"
  • Mount: Surface Mount (no door prep required)
  • Material: Brass



Emtek 1745 Multi Point Lock Trim (Door Config #7) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11"), Dummy Pair

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Above Handle
Door Configuration:
#7
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Trillenium (formerly W&F Manufacturing)
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1745
(CTC) Center-to-Center:
6"
Product Function:
Dummy
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1745-MB – Frequently Asked Questions

1) Does the Emtek 1745 Tuscany multi point trim include the multi point lock mechanism?
No. The 1745 is trim only: plates and handles. The multi point mortise lock box is not included, so you order the gearbox separately or use the one already in the door. Note this is the dummy pair version, meaning it does not operate a lock at all, it is fixed hardware for the inactive or non-operating leaf.
2) What door thickness does the Emtek 1745 multi point trim fit, and does the door need machining?
It fits doors 1-3/8 inch to 1-3/4 inch thick and mounts on the surface, so no door prep is required. There is also an optional door thickness field at order time if your slab is a specific dimension you want noted.
3) What is the center-to-center spacing on the Emtek 1745 Tuscany plate, and will it cover my existing holes?
Center-to-center is 6 inches, with the cylinder position above the handle. The plate itself measures 1-1/2 by 11 inches. If your existing multi point door is drilled to a 6 inch CTC with the cylinder hole above the lever, the 1745 lines up; anything else will not.
4) Do I have to specify handing on the Emtek 1745 dummy pair?
Yes, handing is required. You choose right hand or left hand at order. Even as a dummy set, the plate orientation and lever throw follow the door swing, so an incorrect call means the hardware sits backwards on the slab.
5) Which levers and finishes can I get with the Emtek 1745 Tuscany bronze trim?
Lever choice is required and covers four Tuscany lost wax cast bronze styles: Medici, Napoli, Octagon, and Padua. Finish comes in Flat Black Bronze (FB) or Medium Bronze (MB). Any Tuscany bronze lever can be paired with these plates, so you can match levers already running elsewhere in the house.
6) Is the Emtek 1745 keyed, and what cylinder does it take?
It is not keyed. As a dummy pair there is no cylinder supplied and no keying to specify. The configuration itself is set up for an American cylinder above the handle, which is what the active-leaf keyed trim in the same configuration uses.
7) Should I use a dummy trim set or a keyed set on my French patio doors?
On a pair of swinging patio doors, the active leaf gets keyed or operating multi point trim over a working gearbox; the inactive leaf takes a dummy pair like the 1745, which is fixed and gives you matching handles inside and out without any latching function. Buy the dummy only if that leaf stays shut or is secured by flush bolts.
8) Is the Emtek 1745 Tuscany trim suitable for a commercial building entrance?
It is classed residential. The Tuscany bronze multi point trim is intended for swinging patio doors in homes, not for commercial openings where graded, fire rated hardware is called for.
9) What are the Emtek 1745 plates made of?
Lost wax cast bronze plates and handles, solid bronze substrate, offered in Flat Black Bronze or Medium Bronze. Cast bronze in a living finish will patina with handling and weather exposure over time, which is typical for the Tuscany collection.
