Emtek 1823 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20
Emtek Emtek 1823 Multi Point Lock Trim (Door Config #8) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed American Style Thumbturn Inside EMTEK-1823

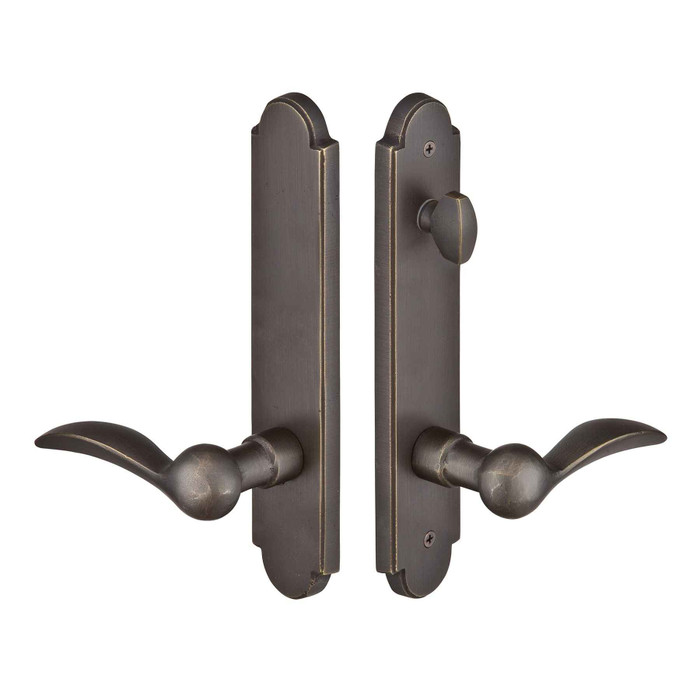

Emtek 1823 Multi Point Lock Trim (Door Config #8) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1823-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #8
  • Plate Size: 2" x 10"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1823 Multi Point Lock Trim (Door Config #8) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#8
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Neuma Doors
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1823
(CTC) Center-to-Center:
5-1/4"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1823-FB – Frequently Asked Questions

1) Does the Emtek 1823 multi point trim include the multi point lock body, or do I need to order that separately?
Trim only. The 1823 set gives you the plates and handles for both sides of a swinging patio door; the multi point mortise lock box is a separate purchase. If you are replacing worn or dated hardware on a door that already has a working multi point lock, that is the case this trim is built for. If the lock body itself is failing, you need the lock as well.
2) What door configuration does the Emtek 1823 trim fit, and how do I know my door matches?
Configuration #8. Multi point trim is sold by configuration number because the plate has to line up with the holes already bored in the door: the 1823 uses a 5-1/4 inch center-to-center spacing between the handle and the cylinder, with the cylinder position above the handle, and it takes an American style cylinder prep. Measure center of the handle bore to center of the cylinder bore on your door. If that comes up 5-1/4 inches with the cylinder on top, this is your configuration.
3) Is the Emtek 1823 keyed, and how does the door lock from inside?
Non-keyed. The interior side operates with an American style thumbturn, so there is no key cylinder in this trim set at all. That makes it the right pick for a patio or garden door where the opening is reached through a fenced yard or a screened area and nobody needs to key in from outside. If the door is an exterior entry that has to be locked from the outside with a key, this is the wrong function and you want a keyed configuration instead.
4) Do I have to specify handing when ordering Emtek 1823 multi point trim?
Handing is required, right hand or left hand, and it is not field-reversible on this trim. Stand outside the door facing it: if the hinges are on your right it is right hand, on the left it is left hand. Getting it wrong on a multi point set means the thumbturn and lever sit backwards. You also pick the lever style at the same time, from ten Sandcast Bronze options: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Door thickness is an optional entry on the order so Emtek can set the spindle length for your slab.
5) Will Emtek 1823 trim work on a Neuma patio door?
Neuma Doors is the reference door manufacturer for this configuration, so Neuma swinging patio doors prepped for configuration #8 are the intended application. The check that actually matters is the prep itself: 5-1/4 inch center-to-center with the cylinder position above the handle. Any door, Neuma or otherwise, that is bored to that pattern takes this trim.
6) What size are the plates on the Emtek 1823 arched multi point trim?
Each plate measures 2 x 10 inches in the arched profile. That is a narrow plate, so it suits the stiles on most swinging patio and French doors, but lay a tape on your stile before ordering: the plate needs to sit flat with the bore centered, and a heavily glazed door with a slim stile can run tight. The 5-1/4 inch center-to-center bore spacing sits within that 10 inch plate length.
7) What finishes does the Emtek 1823 Sandcast Bronze trim come in, and will it match my other Emtek bronze hardware?
Three finishes: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). All three are from Emtek's Sandcast Bronze collection, so they are the same finish family used across Emtek's other Sandcast Bronze entry sets, levers and knobs. If you are matching a house or a run of units already fitted with Sandcast Bronze, order the same finish code and the patio door will read the same as the entry door. Solid bronze, not plated, so it wears rather than flakes.
8) Will this fix the drooping lever on my patio door?
Sagging handles are exactly what the spring assist in this trim addresses. Every Emtek multi point lock trim now ships with a spring assist that returns the lever to horizontal after each use, so the handle stops settling downward over time. Older multi point trim without it relies on the lock body spring alone, which is where the droop usually comes from. Worth knowing if you manage a building where the same patio door hardware has sagged on multiple units.
9) Is Emtek 1823 multi point trim suitable for a commercial building entrance?
It is classified as residential hardware and it is mechanical, with no electronic or access control option in the set. For multi-family or hospitality use on unit patio doors it fits the application. For a commercial entrance that needs a graded, cycle-rated device, look at commercial mortise or cylindrical hardware instead of a residential patio trim.
10) Can I pick any Emtek Sandcast Bronze lever with the 1823 trim, or only certain ones?
Any Sandcast Bronze lever pairs with these plates. On the order you choose from Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton or Yuma, which lets you carry a lever design already used elsewhere in the house through to the patio door. Lever choice does not change the plate size or the bore pattern.
