Emtek Emtek 1L1A11 Multi Point Lock Trim (Large Multi Point Entry Set) - Sandcast Bronze Plates, Arched Style (3" x 17.5"), Keyed with American Cylinder Hub BELOW Handle EMTEK-1L1A11

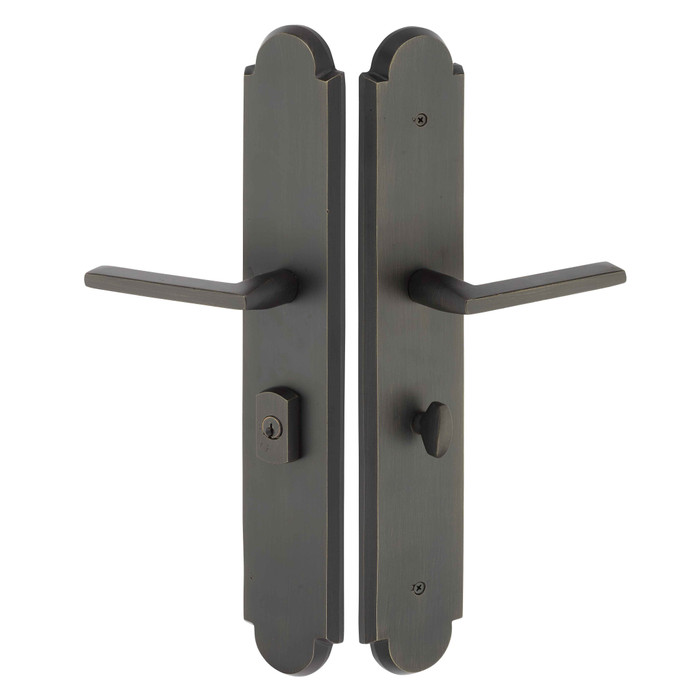

Emtek 1L1A11 Multi Point Lock Trim (Large Multi Point Entry Set) - Sandcast Bronze Plates, Arched Style (3" x 17.5"), Keyed with American Cylinder Hub BELOW Handle

(No reviews yet) Write a Review

Model: 1L1A11-FB
From the Sandcast Bronze Collection
$878.00
$702.40
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$878.00
$702.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 1L1A11 Multi Point Lock Trim (Large Multi Point Entry Set) - Sandcast Bronze Plates, Arched Style (3" x 17.5"), Keyed with American Cylinder Hub BELOW Handle


  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.

Manufacturer Resources

Emtek LookBook

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
Large Multi Point
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
G-U
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1L1A11
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
3" x 17.5"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1L1A11-FB – Frequently Asked Questions

1) Does the Emtek 1L1A11 multi point entry set include the mortise lock body?
No. The 1L1A11 is trim only: plates, handles, and the cylinder. The multi point mortise lock box has to be sourced separately, so you need the gearbox and rods for the door already in place or on order before this trim does you any good.
2) What multi point gearbox does this Emtek trim line up with?
It is referenced to G-U multi point hardware in the Large Multi Point configuration, with 3-5/8 inch center-to-center spacing between the handle hub and the cylinder. That CTC is the number to check against your existing gearbox before ordering, because the plate is drilled to it.
3) Is the cylinder above or below the lever on the Emtek 1L1A11?
Below the handle. Emtek builds the same arched sandcast plate in both hub layouts, so if the gearbox on your patio door puts the cylinder above the lever, the 1L1A11 is the wrong half of the pair and you want the above-handle version instead.
4) Can I key this Emtek entry set to match my other Schlage or Weiser keys?
Yes. The cylinder is an American-classification single cylinder and it is offered in either the Schlage keyway (standard) or the Weiser WR5 keyway, so pick whichever family the rest of the house already runs. Keyed alike or keyed different can be specified when ordering, and there is a field for keying to an existing code.
5) Do I have to specify handing on the Emtek 1L1A11 trim?
Yes, handing is a required choice, right hand or left hand. Stand outside the door: if the hinges are on your right it is right hand. Getting it wrong means the lever sweeps the wrong way against the plate.
6) What size are the plates on the Emtek arched multi point trim?
The arched sandcast bronze plates measure 3 x 17.5 inches. That is the large multi point footprint, so confirm your door stile can carry a 17.5 inch plate and that any old trim you are covering falls inside it.
7) Will the levers on this Emtek set sag over time?
No. Every Emtek multi point lock trim now ships with a spring assist that returns the lever to neutral, which is what stops the drooping handle you get on older sets. Worth knowing if you are replacing sagging trim on a swinging patio door.
8) Is this Emtek multi point trim suitable for a commercial opening?
It is a residential product, built for swinging patio doors. For a commercial entrance under traffic and code requirements, look at a Grade 1 mortise lock rather than sandcast multi point patio trim.
9) What finishes does the Emtek arched sandcast bronze multi point trim come in?
Three: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). All three are available with either the Schlage or the Weiser WR5 keyway. These are live sandcast bronze finishes, so expect some variation piece to piece rather than a plated uniform look.
10) Do I need to give my door thickness when ordering the Emtek 1L1A11?
There is an optional door thickness field on the order, and it is worth filling in. The cylinder tailpiece and spindle length depend on how thick the door is, so on anything other than a standard slab, state the measurement.
11) Is the Emtek 1L1A11 a keypad or electronic lock?
No, it is fully mechanical, keyed with a single American cylinder. No batteries, no wiring, no smart module.
