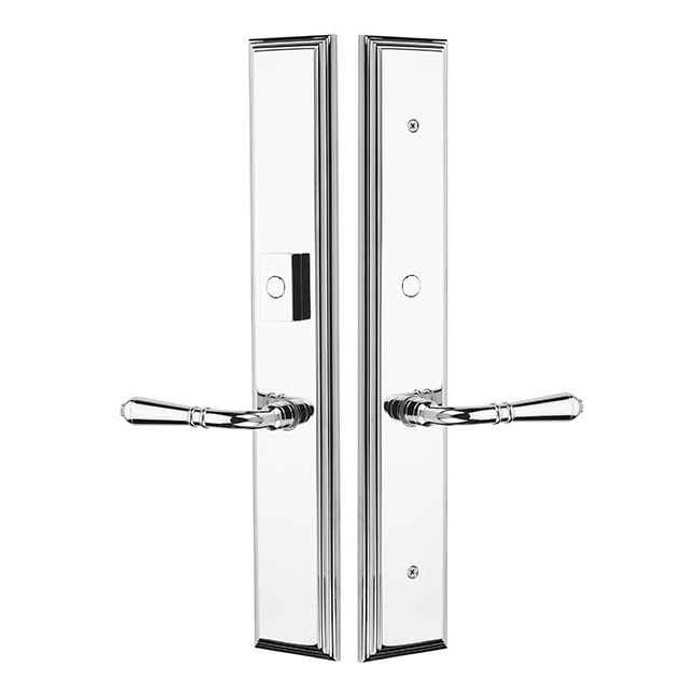

Emtek Emtek 1L1M22 Multi Point Lock Trim (Large Multi Point Entry Set) - Brass Plates, Melrose Style (2.9" x 17.5"), Non-Keyed Passage EMTEK-1L1M22

Emtek 1L1M22 Multi Point Lock Trim (Large Multi Point Entry Set) - Brass Plates, Melrose Style (2.9" x 17.5"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1L1M22-US19
From the Brass Collection
$684.00
$547.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$684.00
$547.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 1L1M22 Multi Point Lock Trim (Large Multi Point Entry Set) - Brass Plates, Melrose Style (2.9" x 17.5"), Non-Keyed Passage


  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.

Manufacturer Resources

Emtek LookBook

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
Large Multi Point
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
G-U
Series:
Melrose
Theme:
Contemporary
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1L1M22
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
2.9" x 17.5"
Cylinder Classification:
American
Product Style:
Melrose
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1L1M22-US19 – Frequently Asked Questions

1) Is the Emtek 1L1M22 keyed, and can I lock the door with it?
It's a non-keyed passage trim, so there is no cylinder and no locking from the trim itself. Latching and locking come from the multi point gearbox and its thumbturn or key cylinder elsewhere on the door. If you need a keyed exterior entry handle, this is the wrong trim to order.
2) How big are the Melrose plates on the Emtek 1L1M22, and will they fit a narrow patio door stile?
The Melrose plates measure 2.9 x 17.5 inches. That is a tall, narrow escutcheon sized for swinging patio and French door stiles, but measure your stile face width against 2.9 inches before ordering, especially if the door has a glass stop or applied molding close to the edge.
3) Do I have to specify handing when ordering the Emtek 1L1M22 trim?
Yes, handing is a required choice, right hand or left hand. So is the lever style. Door thickness is an optional entry, and it is worth filling in so the spindle and screw pack suit your door. Get handing wrong on a multi point set and the lever will sit backwards on the door.
4) Which levers can I put on the Emtek Melrose multi point trim?
Any Emtek brass lever works with it, and the selection runs from the modern L-Square, T-Bar and R-Bar bars in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, through cast styles like Athena, Helios, Hermes, Luzern, Poseidon, Stuttgart, Milano, Turino, Coventry and Rope, to Arts and Crafts and Hammered. The lever is a required selection, not an add-on.
5) Is the Emtek Melrose 1L1M22 suitable for a commercial building entrance?
It's classified residential. Solid brass plates and handles, made for swinging patio and French doors in homes. For a commercial opening under an ANSI/BHMA grade requirement, look at a Grade 1 or Grade 2 commercial lockset instead of multi point patio trim.
6) What finishes does the Emtek 1L1M22 Melrose entry set come in?
Nine: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL) and French Antique (US7). Unlacquered brass is a living finish and will patina; the Lifetime finishes hold their appearance.
7) If I order the keyed version of this Melrose trim later, what cylinder does it take?
The Melrose multi point trim is set up for an American standard cylinder, positioned above the handle. The 1L1M22 itself is the passage version with no cylinder, so if you want the door keyed you need the keyed variant of the trim rather than adding a cylinder to this one.
