Emtek 1L1M53 Multi Point Lock ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$684.00
$547.20
Emtek Emtek 1L1M53 Multi Point Lock Trim (Large Multi Point Entry Set) - Brass Plates, Melrose Style (2.9" x 17.5"), Non-Keyed American Style Thumbturn Inside EMTEK-1L1M53

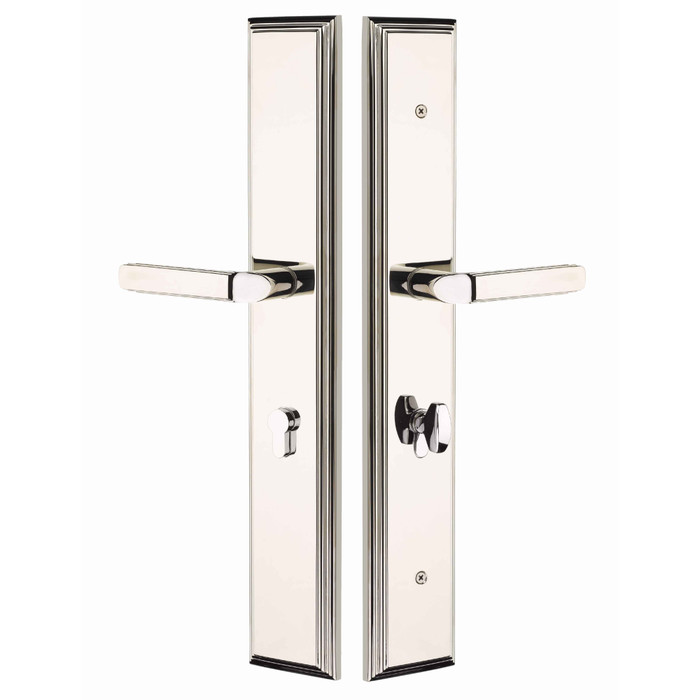

Emtek 1L1M53 Multi Point Lock Trim (Large Multi Point Entry Set) - Brass Plates, Melrose Style (2.9" x 17.5"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1L1M53-US19
From the Brass Collection
$684.00
$547.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$684.00
$547.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 1L1M53 Multi Point Lock Trim (Large Multi Point Entry Set) - Brass Plates, Melrose Style (2.9" x 17.5"), Non-Keyed American Style Thumbturn Inside


  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.

Manufacturer Resources

Emtek LookBook

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Below Handle
Door Configuration:
Large Multi Point
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
G-U
Series:
Melrose
Theme:
Contemporary
MAP Policy:
Yes
Product Model:
1L1M53
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2.9" x 17.5"
Cylinder Classification:
Euro Profile
Product Style:
Melrose
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1L1M53-US19 – Frequently Asked Questions

1) Does the Emtek 1L1M53 multi point entry set include the multi point lock body?
No. The 1L1M53 is trim only, plates and handles, and the multi point mortise lock box is a separate purchase. You order the lock body to match the door, then this Melrose trim dresses it. Plan the job with both lines on the order or the door will arrive with nothing to operate.
2) What is the center-to-center spacing on the Emtek 1L1M53 trim?
3-5/8 inches between handle and cylinder. On a multi point door this is the number that decides whether the trim lines up with the lock body already in the stile, so match it against the gear you are dressing before ordering. The plate itself measures 2.9 x 17.5 inches.
3) Do I have to specify handing when ordering Emtek 1L1M53 multi point trim?
Yes, handing is required, right hand or left hand, and so is the lever style. Handing on a swinging patio door is read from the hinge side, and getting it wrong on a multi point set means the lever and thumbturn land on the wrong face. Door thickness is an optional entry you can supply so the spindle and fasteners suit the door.
4) Can I pick my own lever on the Emtek Melrose 1L1M53 entry set?
Yes. It takes any Emtek brass lever, and there are 51 lever designs to choose from, spanning the L-Square, T-Bar and R-Bar bar levers in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble treatments, plus cast styles like Athena, Poseidon, Luzern, Milano, Coventry, Rope, Rustic, Santa Fe and Arts and Crafts. Lever choice is a required selection on the order, not an afterthought.
5) Do Emtek multi point levers sag over time?
The Melrose trim ships with spring assist built in, which returns the lever to neutral and is specifically there to stop the drooping handle problem that plagues heavy patio door levers. No separate spring cassette to order.
6) Is the Emtek 1L1M53 multi point trim rated for commercial door traffic?
It is residential hardware, built for swinging patio doors in homes. For a multi family or commercial opening under heavy daily cycling, specify commercial grade lock hardware instead; the Melrose trim is a residential entry set and a decorative brass plate assembly, not a graded commercial lockset.
7) What finishes does the Emtek 1L1M53 Melrose multi point trim come in?
Nine: Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), French Antique (US7), Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Pewter (US15A), Flat Black (US19) and Polished Chrome (US26). The plates and substrate are solid brass, so the unlacquered option will patina with handling if you want it to move over time, while the lifetime finishes hold.
8) Is the Emtek 1L1M53 an electronic or keypad multi point handle?
Purely mechanical. The 1L1M53 has no electronic component and the trim itself is non-keyed, with a thumbturn on the interior; the keying lives in the euro profile cylinder you fit below the exterior handle. If you want a code or app entry on a multi point patio door, this is not the trim for it.
9) Can I match Emtek Melrose multi point trim to the other doors in the house?
The Melrose plate is contemporary in style, 2.9 x 17.5 inches in solid brass, and it shares Emtek's lever range with the rest of the line, so the same lever design and the same finish code used on your interior doors can carry onto the patio opening. Pick the lever and finish first, then apply that pair across the openings.
