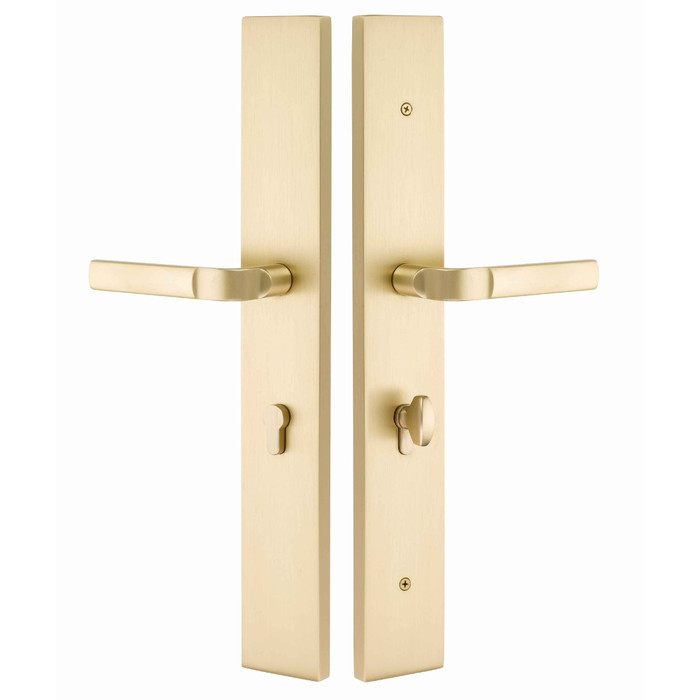

Emtek Emtek 1L1R53 Multi Point Lock Trim (Large Multi Point Entry Set) - Brass Plates, Modern Rectangular Style (2.9" x 17.5"), Non-Keyed American Style Thumbturn Inside EMTEK-1L1R53

Emtek 1L1R53 Multi Point Lock Trim (Large Multi Point Entry Set) - Brass Plates, Modern Rectangular Style (2.9" x 17.5"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1L1R53-US19
From the Brass Collection
$684.00
$547.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$684.00
$547.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 1L1R53 Multi Point Lock Trim (Large Multi Point Entry Set) - Brass Plates, Modern Rectangular Style (2.9" x 17.5"), Non-Keyed American Style Thumbturn Inside


  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.

Manufacturer Resources

Emtek LookBook

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Below Handle
Door Configuration:
Large Multi Point
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
G-U
Series:
Modern Rectangular
Theme:
Contemporary
MAP Policy:
Yes
Product Model:
1L1R53
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2.9" x 17.5"
Cylinder Classification:
Euro Profile
Product Shape:
Rectangular
Product Style:
Modern Rectangular
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1L1R53-US19 – Frequently Asked Questions

1) Does the Emtek 1L1R53 multi point entry set include the multi point lock mechanism?
No. The 1L1R53 is trim only, plates and handles. The multi point mortise lock box is a separate purchase, so you need the gearbox and rods sized to your door before this trim does anything. If your door already has a multi point lock in it, this is the dress hardware that goes over it.
2) What cylinder does the Emtek 1L1R53 entry trim take, and where does the key go?
Euro profile cylinder, mounted below the handle. The inside is a non-keyed American style thumbturn, so you operate it by hand from indoors and by key from outside. Because the prep is Euro profile rather than a standard rim or mortise cylinder, an existing US-style cylinder from a conventional entry lock will not transfer over.
3) What is the center-to-center spacing on the Emtek 1L1R53, and will it line up with my door prep?
3-5/8 inch center-to-center between the handle spindle and the cylinder. That is the number that decides whether the trim drops onto an existing multi point door: measure your door from the lever hub down to the cylinder hole. If it comes out at anything else, the plate holes will not land and you need trim matched to that gearbox spacing.
4) Do I have to specify handing when ordering the Emtek 1L1R53?
Yes, handing is required, right hand or left hand. So is a lever style, chosen from Emtek's brass lever range. Door thickness is an optional entry, and worth filling in if your door is anything other than a standard slab, since the spindle and cylinder screws have to reach through it. Getting handing wrong on a multi point set means the thumbturn and lever sit backwards.
5) Can I pick my own lever on the Emtek 1L1R53 multi point trim?
Yes. The 1L1R53 takes any Emtek brass lever, and the choice is wide: the modern L-Square, T-Bar and R-Bar families in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, plus traditional patterns like Cortina, Milano, Turino, Rope, Ribbon and Reed, Arts and Crafts and Rustic. That is how you match a patio door to the levers already on the interior doors.
6) My multi point patio door handles are sagging. Will new Emtek trim fix that?
That is exactly what the spring assist does. Every current Emtek multi point lock trim, including the 1L1R53, has a spring assist that returns the lever to neutral instead of letting it droop under its own weight. Sagging handles on a heavy patio lever are a trim problem, not a gearbox problem, so replacing the trim solves it as long as the gearbox itself still throws.
7) Is the Emtek 1L1R53 a commercial-rated entry set?
No, it is residential hardware for swinging patio doors. For a commercial opening that has to meet cycle and grade requirements, this is the wrong direction, look at a Grade 1 mortise or cylindrical lockset instead. For a house, a multi-family unit patio door or a high-end residential entry, the 1L1R53 is in its lane.
8) What finishes does the Emtek 1L1R53 entry set come in?
Seven: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL) and Satin Brass (US4). Unlacquered brass will patina with handling and weather, so pick it only if you want a living finish; the plated options hold their appearance.
9) Is the Emtek 1L1R53 solid brass, and will it hold up outdoors?
Solid brass plates and brass substrate, from Emtek's Brass collection. Brass is the standard material for an exterior swinging patio door because it does not rust, and the finish is what determines how it weathers rather than the base metal.
10) Is the Emtek 1L1R53 keyed or electronic?
Neither. The 1L1R53 ships non-keyed and is fully mechanical, no motor, no keypad, no reader. It accepts a Euro profile cylinder that you supply and key to your existing system, which is how you get a patio door onto the same key as the rest of the house.
