Emtek 1L1R13 Multi Point Lock ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$684.00
$547.20

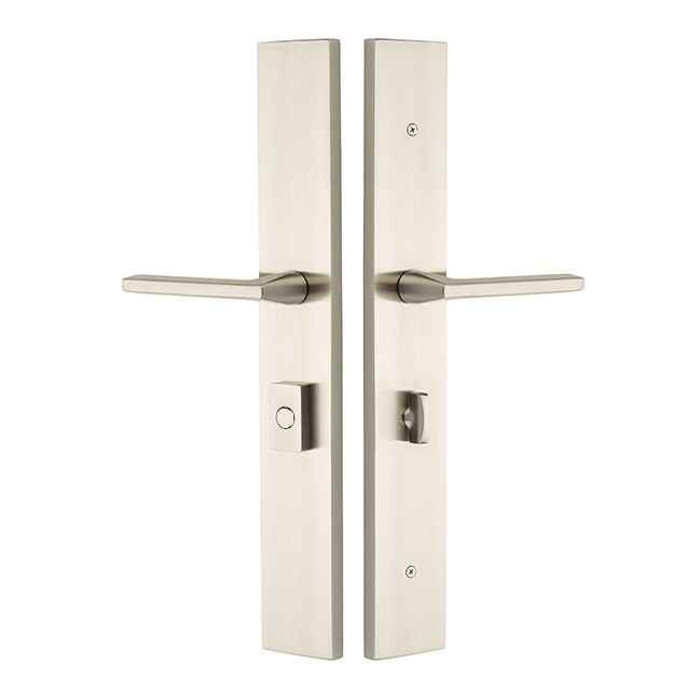

Emtek Emtek 1L1R13 Multi Point Lock Trim (Large Multi Point Entry Set) - Brass Plates, Modern Rectangular Style (2.5" x 17.5"), Non-Keyed American Style Thumbturn Inside EMTEK-1L1R13

Emtek 1L1R13 Multi Point Lock Trim (Large Multi Point Entry Set) - Brass Plates, Modern Rectangular Style (2.5" x 17.5"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1L1R13-US19
From the Brass Collection
$684.00
$547.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$684.00
$547.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 1L1R13 Multi Point Lock Trim (Large Multi Point Entry Set) - Brass Plates, Modern Rectangular Style (2.5" x 17.5"), Non-Keyed American Style Thumbturn Inside


  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.

Manufacturer Resources

Emtek LookBook

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Below Handle
Door Configuration:
Large Multi Point
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
G-U
Series:
Modern Rectangular
Theme:
Contemporary
MAP Policy:
Yes
Product Model:
1L1R13
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2.5" x 17.5"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Modern Rectangular
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1L1R13-US19 – Frequently Asked Questions

1) What size are the plates on the Emtek Modern Rectangular multi point entry set?
Each plate measures 2.5 x 17.5 inches in a rectangular shape. That is the large multi point configuration, so if the existing plates on your patio door are shorter, you will have exposed screw holes or finish shadow to deal with. Measure the existing plate before you commit.
2) What center-to-center spacing does this Emtek multi point trim use, and will it line up with my door prep?
Center-to-center is 3-5/8 inches between the handle and the cylinder hole, with the cylinder sitting below the handle. That spacing has to match the prep in your door and the gearbox already installed. Emtek lists G-U as the reference door manufacturer for this trim, so it is built around that multi point spacing.
3) Is the Emtek 1L1R13 keyed, or does it need a cylinder?
The 1L1R13 is the non-keyed version with an American style thumbturn on the inside. There is no key cylinder on the exterior in this configuration. If you need key access from outside, you want the keyed variant of this trim rather than this one. The trim is set up for American cylinder classification, which matters if you are matching a keyway across the rest of the house.
4) Do I have to specify handing when ordering this Emtek multi point patio door trim?
Yes, handing is required. You pick right hand or left hand at the time of order, and it cannot be flipped in the field on a multi point trim the way a simple lever set sometimes can. Stand outside the door: if the hinges are on your right, it is right hand.
5) What finishes does the Emtek 1L1R13 multi point trim come in?
Seven finishes: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL) and Satin Brass (US4). Unlacquered Brass is a living finish and will patina over time, so pick it only if you want that change; the lifetime polished nickel is the one to choose if you need the appearance to stay put on a sun exposed patio door.
6) Can I choose which lever goes on this Emtek Modern Rectangular multi point trim?
Lever style is a required selection and you have over fifty brass lever designs to pick from, ranging from contemporary bar shapes like L-Square Knurled and T-Bar Tribeca to traditional profiles such as Rope, Ribbon and Reed, Santa Fe and Arts and Crafts. Any brass lever in the range can be ordered on this trim, so you can match levers already used elsewhere in the house while keeping the rectangular plate.
7) Will this Emtek trim fix a lever that droops on my patio door?
It should. Emtek now builds the spring assist function into every multi point lock trim, which returns the lever to horizontal and stops the sagging handle problem. That is one of the more common reasons people replace multi point trim rather than the whole lock.
8) Do I need to know my door thickness before ordering Emtek multi point lock trim?
Door thickness is a field you can supply on the order, and it is worth doing. The spindle and cylinder length on multi point trim depend on how thick the door is, and patio door slabs vary. Measure the slab edge and give the figure when you order.
9) Is the Emtek 1L1R13 trim suitable for a commercial entrance?
It is classified as residential hardware for swinging patio doors, not commercial entrance duty. For an apartment unit patio door or a single family rear entry it is the right category. For a storefront or high traffic commercial opening you want a commercial grade lock rather than residential multi point patio trim.
10) Is the Emtek 1L1R13 an electronic or smart lock trim?
No, it is fully mechanical. There is no electronic component, no wiring and no power requirement, so nothing to fail when the power drops. Operation is the lever outside and the thumbturn inside.
