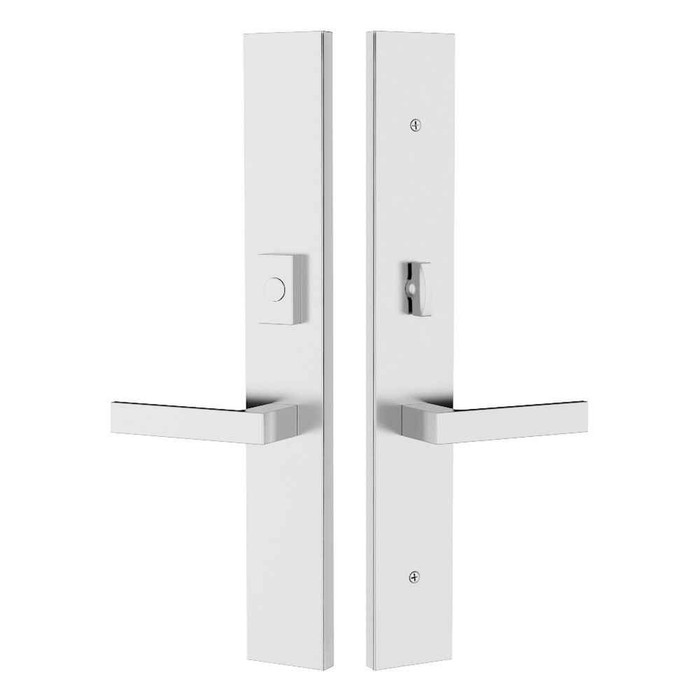

Emtek 1L1R23 Multi Point Lock Trim (Large Multi Point Entry Set) - Brass Plates, Modern Rectangular Style (2.5" x 17.5"), Non-Keyed American Style Thumbturn Inside

It is set up for G-U multipoint hardware, in the large multipoint configuration, with a 3-5/8 inch center-to-center between the handle and the cylinder hole and the cylinder sitting above the handle. Match those three things against the lock already in your door: reference door manufacturer, large multipoint prep, and 3-5/8 CTC.

Inside you get an American style thumbturn, which throws and retracts the multipoint from the interior. No key cylinder is supplied with the set. If you want exterior key operation, you add an American standard mortise cylinder sized for your door and lock body, since the trim is prepped for the American cylinder classification with the cylinder above the handle.

Three things beyond finish: lever style, handing, and door thickness. Handing is right hand or left hand and is required. Lever choice is required too, and it is a long list, from the L-Square, T-Bar and R-Bar families in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, through Athena, Helios, Hermes, Luzern, Poseidon, Stuttgart, Argos, Aston, Basel, Breslin, Dumont, Freestone, Geneva, Hercules, Mercury, Myles, Sion, Spencer, Triton, Cortina, Manning, Milano, Merrimack, Turino, Coventry, Elan, Ribbon and Reed, Rope, Rustic, Santa Fe, Wembley, Arts and Crafts and Hammered. Door thickness is an open text entry.

The plates measure 2.5 x 17.5 inches in a rectangular profile. That is the large multipoint entry set footprint, so the stile on your swinging patio door needs to take a plate of that width and length, and any old prep or screw holes outside that footprint will show.

Seven finishes: Oil Rubbed Bronze US10B, Polished Nickel Lifetime US14, Satin Nickel US15, Flat Black US19, Polished Chrome US26, Unlacquered Brass US3NL, and Satin Brass US4. The plates are solid brass, and the set takes any Emtek brass lever, so it lines up with the rest of an Emtek brass collection on the interior doors.

Yes. Every Emtek multipoint lock trim now ships with a spring assist that returns the lever to horizontal, which is what cures the drooping handle you get on a heavy patio door after a few years of use.

It is a residential product, built for swinging patio doors in homes. For a multi-family or commercial opening on a code-regulated egress path you want commercial graded locking hardware instead, not a residential multipoint trim set.

No, it is purely mechanical trim. There is no electronic function, no motor, and no power connection, so nothing about it depends on batteries or a hub. Operation is the lever with spring assist outside and the thumbturn inside.
