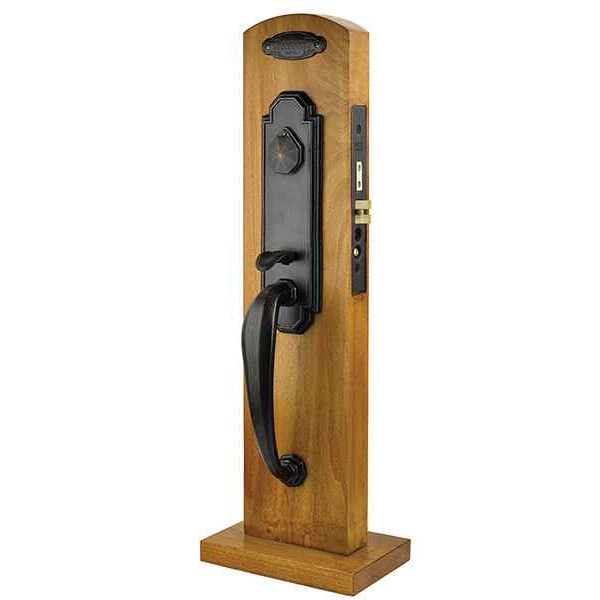

Emtek 3033 Octagon Lost Wax Cast Bronze Mortise Entrance Handleset - Dummy

It is a dummy set, so there is no latch, no bolt and no key. The 3033 Octagon is non-keyed with a dummy function, meaning the handle and knob or lever are fixed trim used as a pull. Typical use is the inactive leaf of a double door or a closet/pantry door where you only need the look of the entry set. If you need a working entry lock, order the keyed mortise entrance version instead.

Yes, handing is required. The 3033 is ordered as either LH or RH, and Emtek requires handing on all of its mortise locks. Stand outside the door: if the hinges are on your left it is a left hand, hinges on the right is a right hand. There is no reversing it after the fact, so get the handing right on the purchase order.

1-3/4 inch is the standard door thickness for the 3033 Octagon. Thicker doors are accommodated, but the thickness has to be called out on the order, and there is a door thickness field for exactly that. Give the actual measured thickness rather than the nominal one on the drawing.

Standard mortise pocket prep to ANSI A115.1, with a backset of either 2-1/2 inches or 2-3/4 inches. That means a door already mortised for a standard entrance lock body will take it without new prep. A tubular-bored door (a 2-1/8 inch cross bore) will not, it has to be routed for a mortise case.

No, it ships as a complete set, but you do choose the inside trim when you order. The 3033 takes any Emtek Lost Wax Cast Bronze knob or lever, and the selection runs from levers like Aurora, Durango, Teton and Montrose to knobs like Egg, Round, Winchester, Diamond and Modern Square. Twenty five styles in all, and the choice is required, so the order is not complete without it.

The Emtek 3033 Octagon is a dummy-function handleset built on a mortise lock body, so the door needs a standard mortise pocket. If the door is not mortise-prepped, two dummy handlesets on tubular-style doors are the Weslock 2815 Hillcrest with New Heaven lever, a dummy handleset in the Premiere Essentials Series for doors 1-3/8 inch to 2 inch, and the Weslock 6695 Belmont with Impresa knob, a dummy handleset in the Elegance Series for the same 1-3/8 inch to 2 inch thickness range. Both give you the inactive pull-and-trim look without cutting a mortise pocket.

The Emtek 3033 Octagon dummy is non-keyed, so it has no cylinder and no latch action. For a keyed entry handleset the comparable set includes the Baldwin Estates 6542 Tremont entry mortise trim in single cylinder and double cylinder versions, both for 1-3/4 inch doors, which are entrance-function mortise trim rather than dummy. On a tubular door, the Schlage Residential F60 Addison with Accent lever is a Grade 2 single cylinder keyed entry handleset for doors 1-3/8 inch to 1-3/4 inch.

The Emtek 3033 Octagon is built for 1-3/4 inch doors as standard and thicker doors must be specified when ordering. Peers that publish a range reaching 2 inches or beyond include the Weslock 2815 Hillcrest dummy and Weslock 6695 Belmont dummy at 1-3/8 inch to 2 inch, the Deltana 810871 Montego at 1-3/8 inch to 2 inch, and the Weslock 1411 Traditionale Colonial single cylinder at 1-3/4 inch to 2-1/4 inch.

The Emtek 3033 Octagon is a dummy: it is fixed trim with no latching action, used on an inactive leaf or a door held by a roller catch. The Schlage Residential JE285 Barcelona with Seville lever is a Grade 2 J Series handleset with a non-keyed entrance function for 1-3/8 inch to 1-3/4 inch doors, meaning it still operates a latch, just without a key cylinder. Choose the 3033 only where the door does not need to latch.

Not on the dummy version, since it is non-keyed and has no cylinder. The 3033 platform is built around the Schlage C keyway, so the keyed mortise entrance sets in the same style can be keyed alike with your existing Schlage C cylinders. Pairing a keyed active leaf with this dummy on the inactive leaf gives you a matched double door.

Yes. The Emtek 3033 Octagon is ordered left hand or right hand, and handing is required for all mortise locks. If you want to avoid committing to a hand at the time of order, the Sure-Loc handlesets are tubular units with adjustable backset, including the Aspen AN507 keyed entry, the Alta AT507 tubular, the Coral CR507 and the Madison MA507. Those are handleset-function tubular units rather than mortise, so the door prep and the trim are different.

No, they are different products on different preps. The Emtek 3033 Octagon is a non-electronic, non-keyed dummy on a standard mortise ANSI A115.1 prep. Electronic handlesets in the comparable set are deadbolt-based tubular units: the Kwikset 815SCEHFL-CP913CNT San Clemente with Halifax lever pairs a handleset with a Smartcode keypad electronic deadbolt for 1-3/4 inch doors, and the Yale Real Living BYRD226NRRX Assure standalone touchscreen deadbolt with Ridgefield handleset covers 1-3/4 inch to 2-1/4 inch. Going that route means reworking the door from a mortise pocket to bore-and-deadbolt prep.

The Emtek 3033 Octagon is lost wax cast bronze and comes in Flat Black Bronze and Medium Bronze. If you want a solid brass body instead, the Deltana handlesets are solid brass entry units: the 803871B Hanover, the 815871 St. Ann and the 825871 Kingston. All three are entry function rather than dummy, so they latch and take a cylinder, unlike the 3033.

The Emtek 3033 Octagon is a residential dummy handleset and carries a UL 180 minute fire rating on the mortise body. If your spec is written around an ANSI grade with a keyed function, graded peers include the Master Lock HDLB Series HDLBA0615/4D Grade 2 single cylinder deadbolt handleset, the Schlage Residential F60 Addison Grade 2 keyed entry, and the Kwikset 687AMD Amador Grade 3 single cylinder keyed handleset, offered with SmartKey or with the SC1 keyway.

The Emtek 3033 Octagon mortise handleset family uses the Schlage C keyway, though the 3033 itself is the non-keyed dummy version. Among the peers, the Kwikset 687AMD SMC Amador single cylinder handleset is supplied with the SC1 keyway and SmartKey, which is the Schlage-style keyway, and it is a Grade 3 entrance handleset for 1-3/4 inch doors. The Kwikset 687AMD SMT and 687BW Belleview are the SmartKey versions of the same Grade 3 exterior-only handlesets.

Not directly. The Baldwin Wesley handleset, offered with the Alcott knob or the Carnaby knob for the interior, is an entrance-function set, while the Emtek 3033 Octagon is a dummy with no latch and no cylinder. The 3033 also takes a lost wax cast bronze knob or lever of your choice for the inside trim and is sold as a complete set. If the opening needs to latch, the Wesley is the right family; if it is an inactive leaf, it is not an equivalent.

Two: Flat Black Bronze (FB) and Medium Bronze (MB). Both are lost wax cast bronze, part of the Tuscany Bronze collection, so they are living finishes that will patina with handling and weather rather than stay uniform like a plated brass finish.

Solid lost wax cast bronze, both the material and the substrate, not a plated casting. That is why it is heavier in the hand than a stamped or zinc set and why the Tuscany bronze finishes wear in rather than flaking off.

Yes. Emtek publishes an F20 mortise lock installation instruction sheet, plus a technical specification sheet covering mortise handleset dimensions and door thickness. Both are available with the 3033, and the tech sheet is the document to hand your carpenter before he routes the pocket.
